3-20 for more details on tablecloth settings.
5）Change tablecloth location to set the screen offset.
6）Block Resolution: The numerical size is determined by camera resolution.
7）when using canon camera: We suggest the width×height of a single photo is
150×100.
8 ） when using CCM1600: We suggest the width×height of a single photo is
150×100.
9 ） when using CCM6000: We suggest the width×height of a single photo is
960×640.
Note: The last row and the last column cannot be too small; you can view Setting in
the [ Block Resolution ] area(as shown Fig. 3-20).
10 ） cob module:Overlapping point value: the default recommendation is
256,Otherwise, 16.
11 ） You can click Setting and enter the number of skip points in the Spick
Number area in the pop-up window. The number of skip points must be odd if the
screen to be calibrated is Four LEDS Arrangement screen.

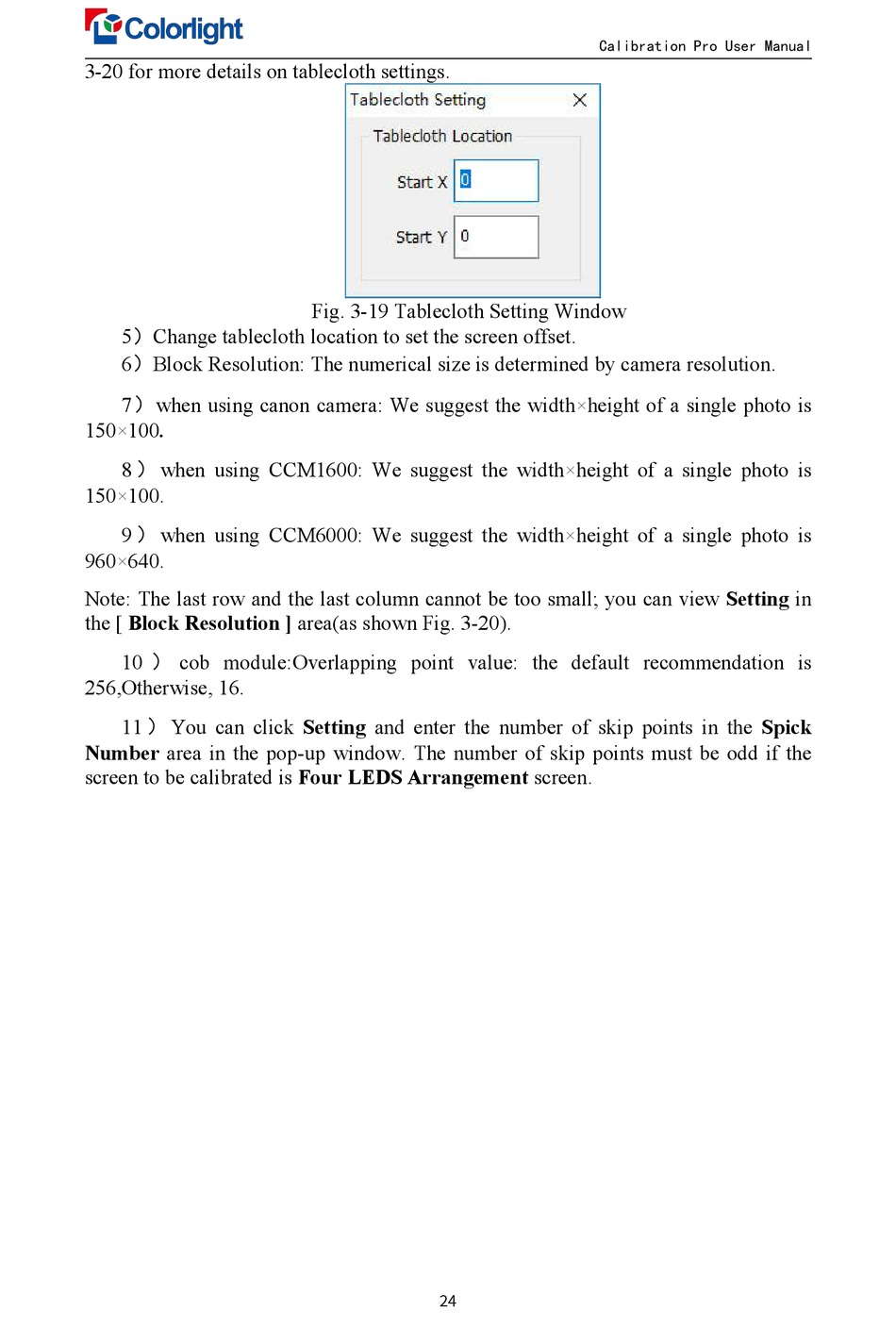

Fig. 3-19 Tablecloth Setting Window
