4.3.5.2 Chip Low Calibration Coefficient Fusion

The coefficient fusion setting is enabled by default. The number of fusion cabinet
n is 9 by default. The fusion coefficient is not applied to the first n cabinet. After the
calibration of n cabinet, the fusion coefficient is generated and applied to the
subsequent calibration cabinets. The first n cabinets need to resend the coefficient.
Build the 16 calibrated cabinets by 4 * 4. In the software, click the "Set" button,
check the coefficient fusion setting to [Enable], set the number of fusion cabinets to
16, check whether there is gradient between the cabinets after building. If there is
gradient, click the "Apply and generate coefficient" button after completing the
gradient adjustment, and the software will regenerate the dark corner and gradient
model according to the currently adjusted parameters, In addition, an original
coefficient and an application model coefficient are automatically generated again.
After the 16th cabinet, click to take a picture, and the software automatically applies
the current model generation coefficient until all cabinets are calibrated.
Change the number of fusion cabinets, modify the gradient setting value, and
close the window without clicking the "Apply and Generate Coefficients" button. The
software will delete the current fusion model, and the corrected cabinets need to
resend the coefficients.

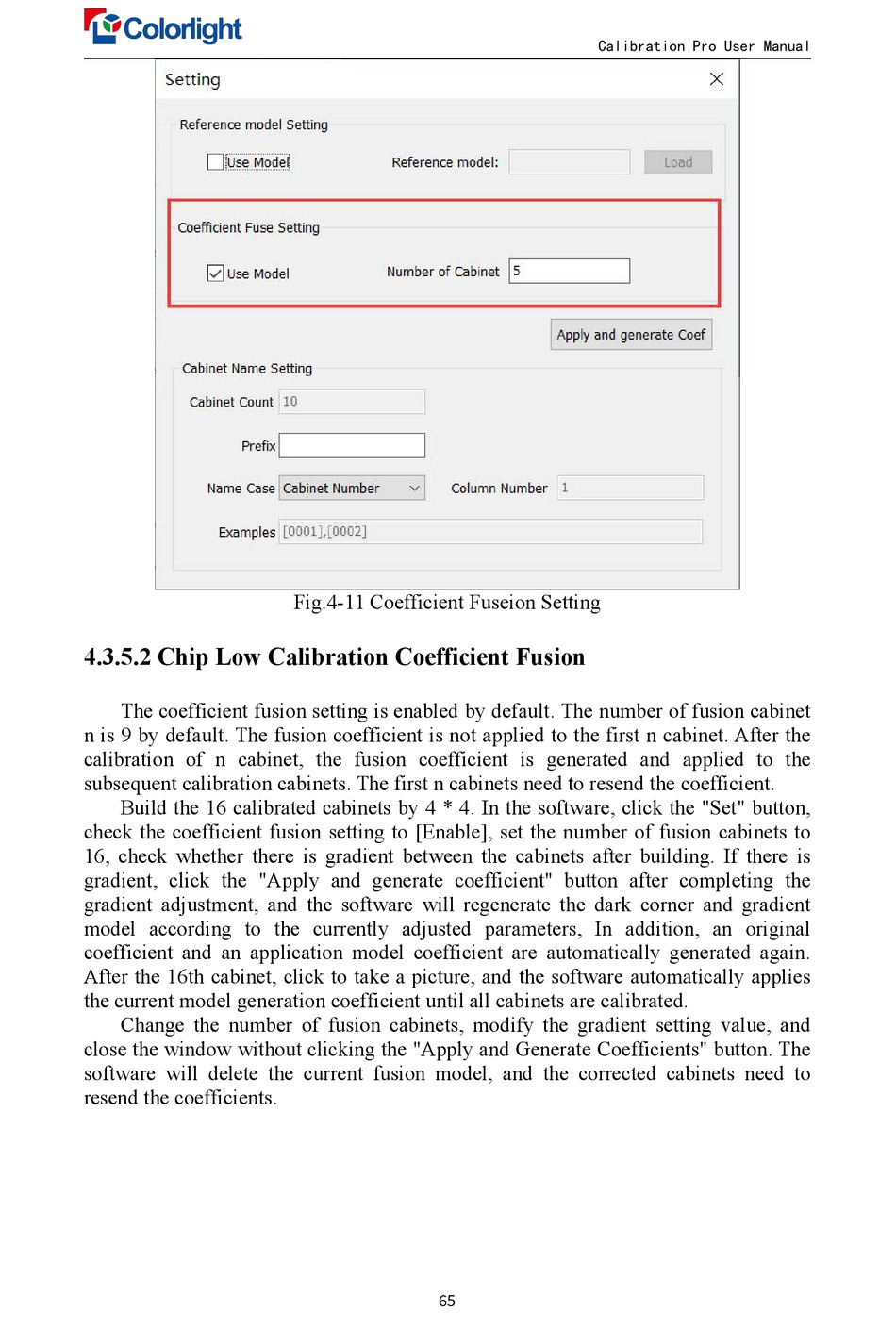

Fig.4-11 Coefficient Fuseion Setting
