and b operation steps.
a. If there is no intelligent module in the cabinet, click "Save Coefficient" to pop
up two drop-down buttons of Send Coefficient to All and Send Coefficient to
Designated Area, and click Send Coefficient to All to send the calibration coefficient
to all receiving cards; Click Send Coefficient to Designated Area, and the following
window of Send Coefficient to Designated Area will pop up.
b. There are intelligent modules in the cabinet. Click "Save Coefficient" to pop up
two drop-down buttons of sending coefficient to receiving card and sending
coefficient to module. Click "Save coefficient to module" to pop up two drop-down
buttons of sending coefficient to all and sending coefficient to designated area. Click
"Send coefficient to all" to send calibration coefficient to all modules. Click Send
Coefficient to Designated Area, and the following window of Send Coefficient to
Designated Area will pop up. It takes a long time to send the coefficient. Please wait
patiently, and you will be prompted "Send Completed" when sending is completed.

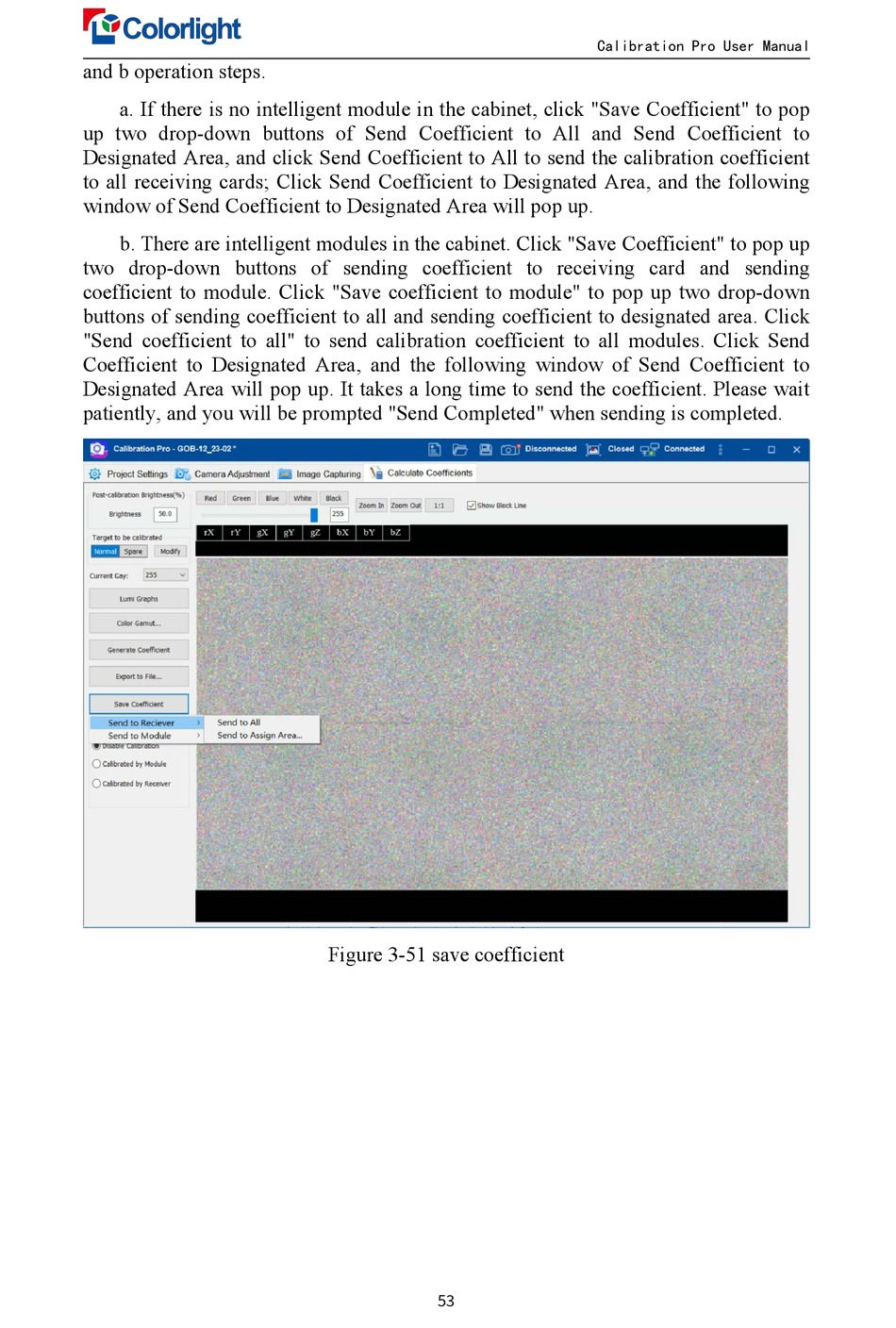

Figure 3-51 save coefficient
