Calibration Pro User Manual

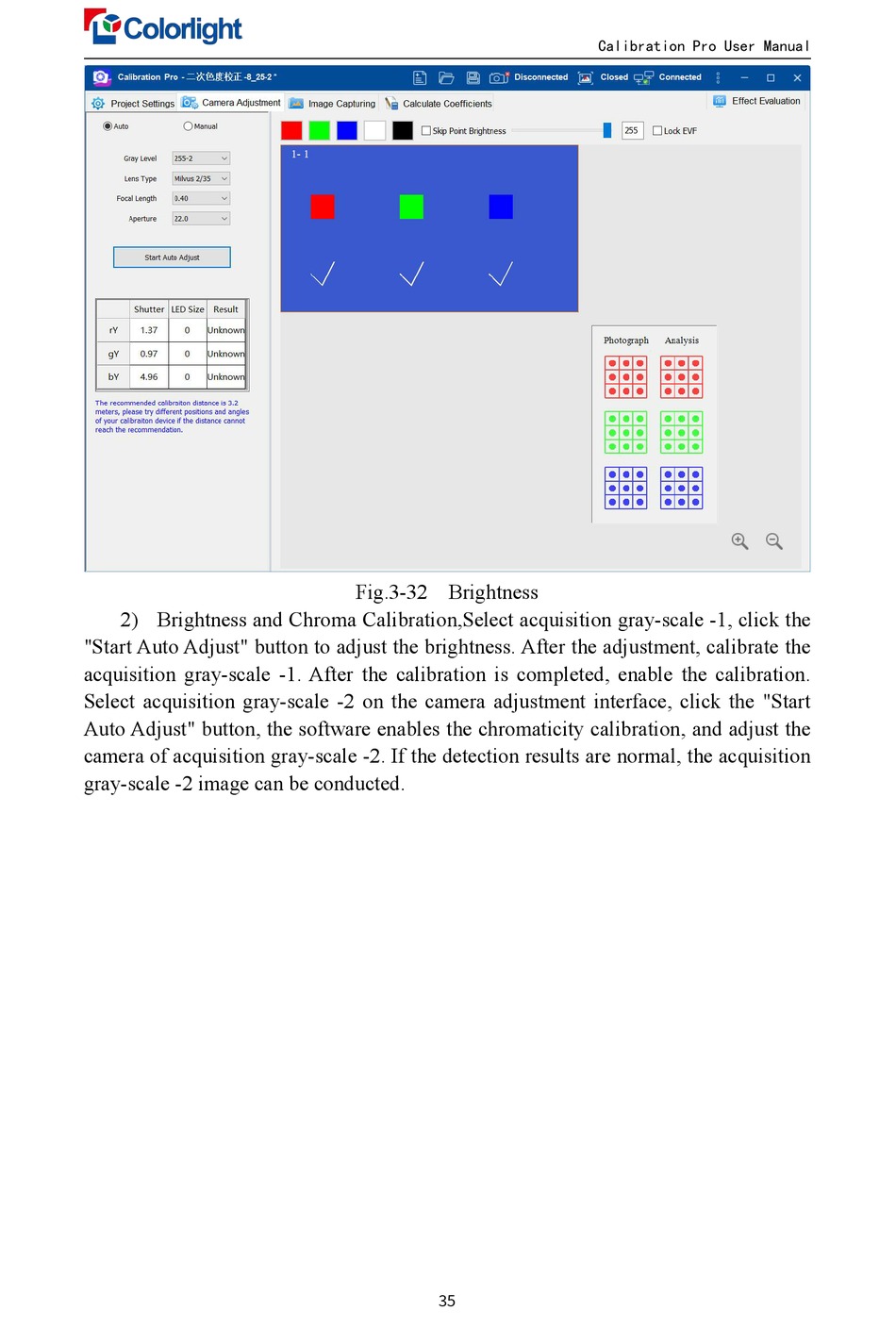

Fig.3-32 Brightness
2) Brightness and Chroma Calibration,Select acquisition gray-scale -1, click the
"Start Auto Adjust" button to adjust the brightness. After the adjustment, calibrate the
acquisition gray-scale -1. After the calibration is completed, enable the calibration.
Select acquisition gray-scale -2 on the camera adjustment interface, click the "Start
Auto Adjust" button, the software enables the chromaticity calibration, and adjust the
camera of acquisition gray-scale -2. If the detection results are normal, the acquisition
gray-scale -2 image can be conducted.
35
