Calibration Pro User Manual

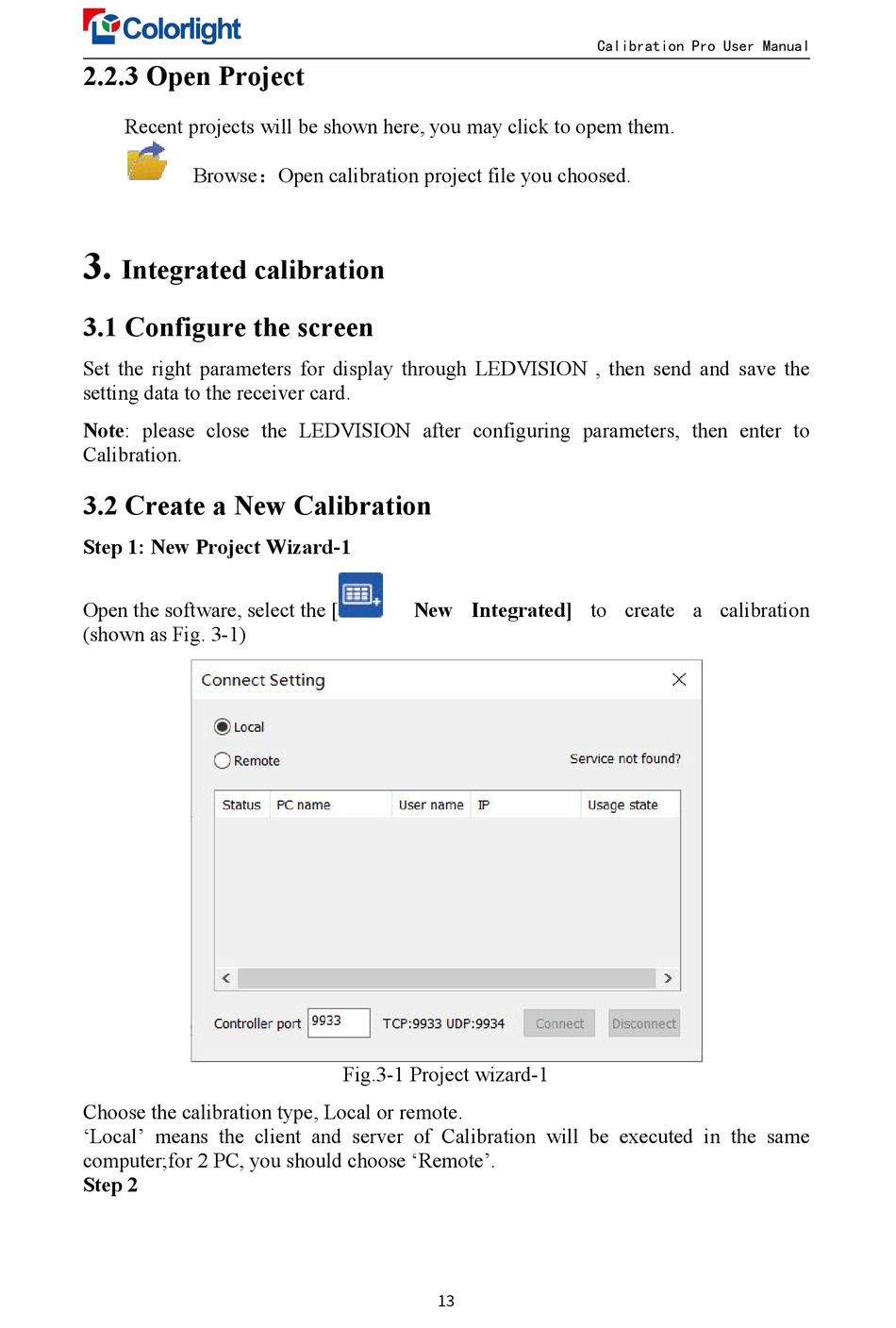

2.2.3 Open Project
Recent projects will be shown here, you may click to opem them.
Browse：Open calibration project file you choosed.
3.
Integrated calibration
3.1 Configure the screen
Set the right parameters for display through LEDVISION , then send and save the
setting data to the receiver card.
Note: please close the LEDVISION after configuring parameters, then enter to
Calibration.
3.2 Create a New Calibration
Step 1: New Project Wizard-1
Open the software, select the [
New Integrated] to create a calibration
(shown as Fig. 3-1)
Fig.3-1 Project wizard-1
Choose the calibration type, Local or remote.
'Local' means the client and server of Calibration will be executed in the same
computer;for 2 PC, you should choose 'Remote'.
Step 2
13
