4.3.3 Image Capturing

4.3.3.1 Regular screen Image Capturing

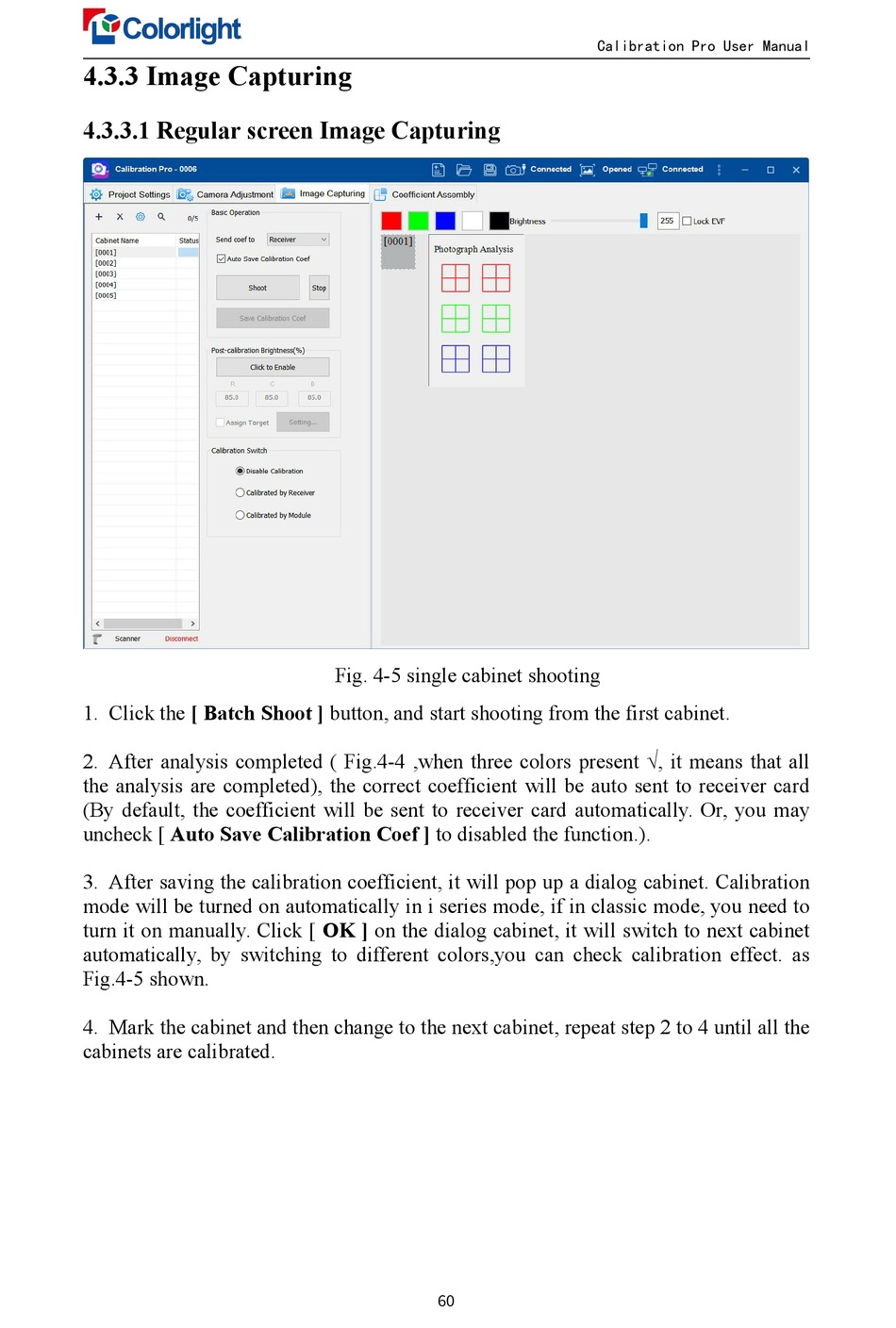

Fig. 4-5 single cabinet shooting
1. Click the [ Batch Shoot ] button, and start shooting from the first cabinet.
2. After analysis completed ( Fig.4-4 ,when three colors present √, it means that all
the analysis are completed), the correct coefficient will be auto sent to receiver card
(By default, the coefficient will be sent to receiver card automatically. Or, you may
uncheck [ Auto Save Calibration Coef ] to disabled the function.).
3. After saving the calibration coefficient, it will pop up a dialog cabinet. Calibration
mode will be turned on automatically in i series mode, if in classic mode, you need to
turn it on manually. Click [ OK ] on the dialog cabinet, it will switch to next cabinet
automatically, by switching to different colors,you can check calibration effect. as
Fig.4-5 shown.
4. Mark the cabinet and then change to the next cabinet, repeat step 2 to 4 until all the
cabinets are calibrated.
