7.3 chroma calibration

7.3.1 canon calibration
a)
With the chromemeter, select [ Auto Measure ], then input the brightness and
chroma data manually before calibration. Without the equipment, just skip to c).
b)
After automatic measurement , collect the white data to verify.
c)
Color gamut
：
We recommend checking [red] [green] [blue] of [ Auto Calculate ], it can calibrate
the different chroma under the retain gamut in maximum and reduce chroma loss.
Please uncheck [red] [green] [blue] of [ Auto Calculate ] and input the coordinate of
target color manually or drag the point in Chromaticity diagrams if the users have
special requirements for color gamut.
Built in sRGB, AdobeRGB, PAL, NTSC, Rec.601, Rec.709, Rec.2020, DCI-P3 color
coordinate parameters.
d)
White balance：
We recommend checking [white] of [ Auto Calculate ], the built-in algorithm will
keep the white point coordinates before calibration.
Please uncheck [white] of [ Auto Calculate ] and input the coordinate of target white
point manually if the users have special requirements for white balance.
Built in D65 color coordinate parameters.

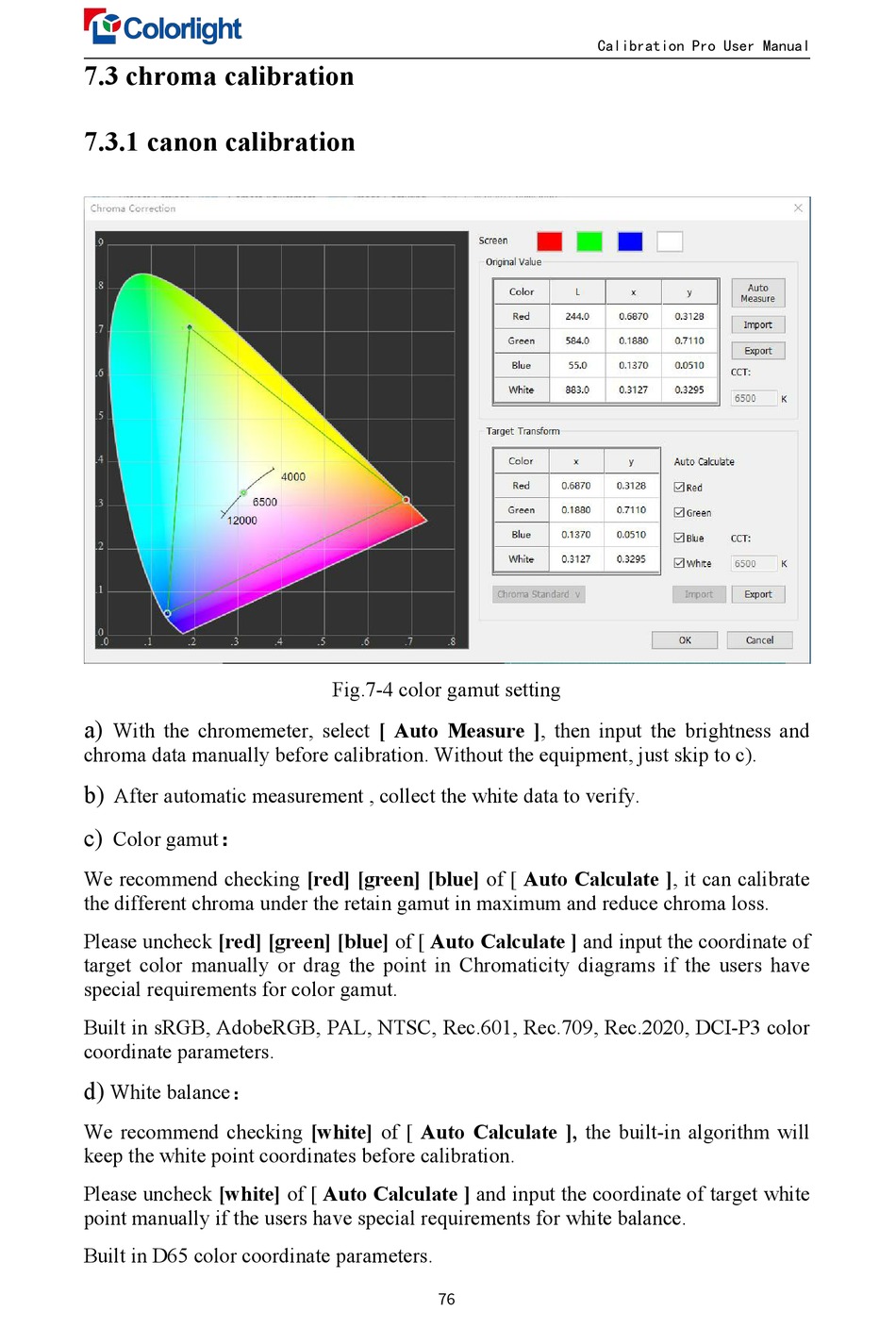

Fig.7-4 color gamut setting
