6. Effect Setting

6.1 Effect setting overview

Effect setting is used for adjusting calibration effect and fixing screen flaws after
calibration. The effect options will vary with your selections ( COB Module) in the
Whole Screen project wizard-4 dialog cabinet. There is an effect description
appearing below every option. If you select the Same Batch check cabinet and clear
the COB Module check cabinet, the advanced setting dialog cabinet is as shown in
Fig.7-1.
1)New project wizard, do not check "COB module"
a.Canon camera,the advanced setting dialog cabinet is as shown in Fig.6-1.
The default check ensures interchangeability after calibration, eliminates dark corners,
eliminates dirt spots, eliminates moire marks, and automatically.
b.CCM camera,the advanced setting dialog cabinet is as shown in Fig.6-2.

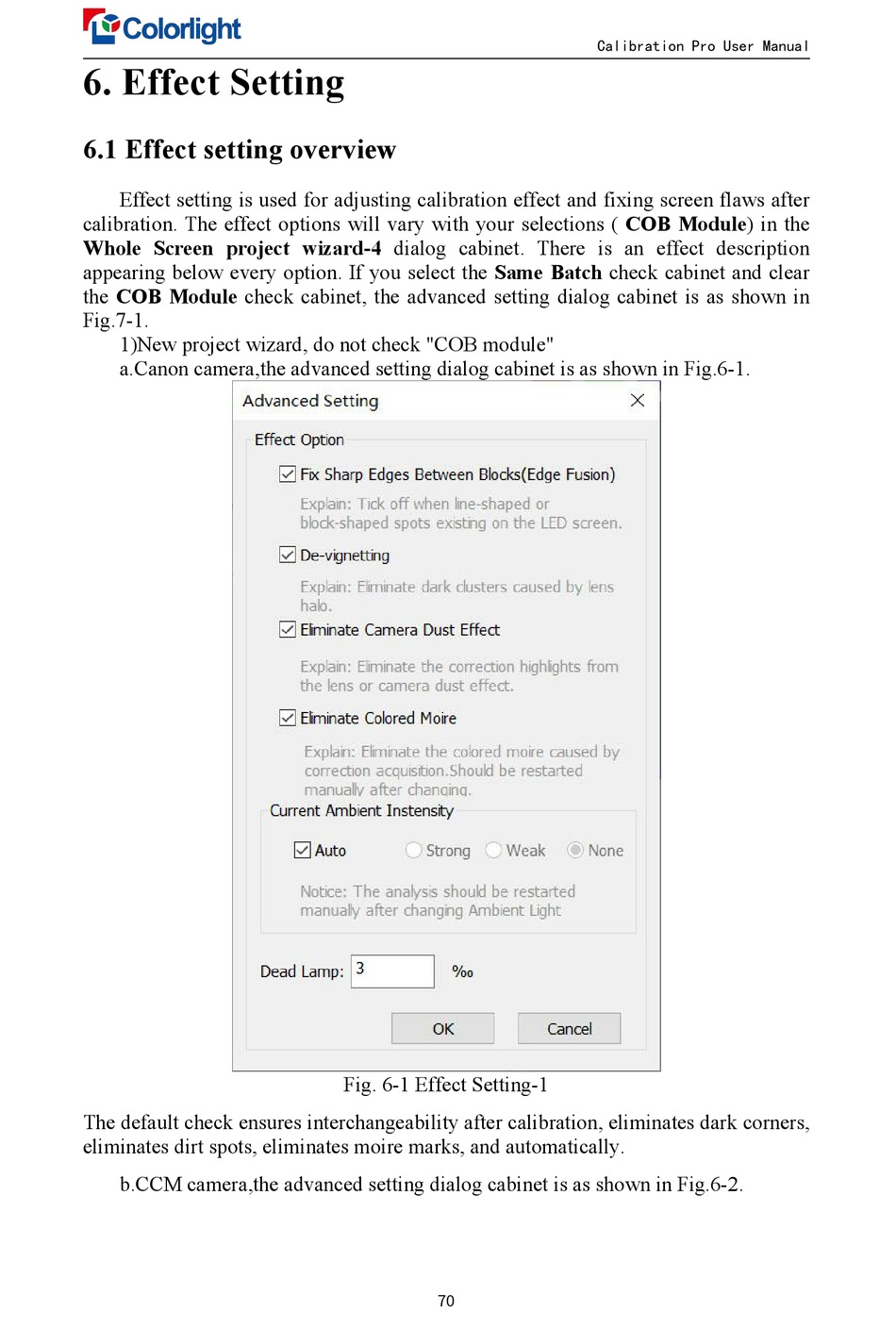

Fig. 6-1 Effect Setting-1
