body calibration coefficient after repair;
7，Crosshair strength coefficient, which is displayed as 1 by default, can be modified
according to actual situation.
Set, click Start, the software automatically generates the cabinet calibration
coefficient after repair, click Export Reference Model, and export the
Current crosshair model file.

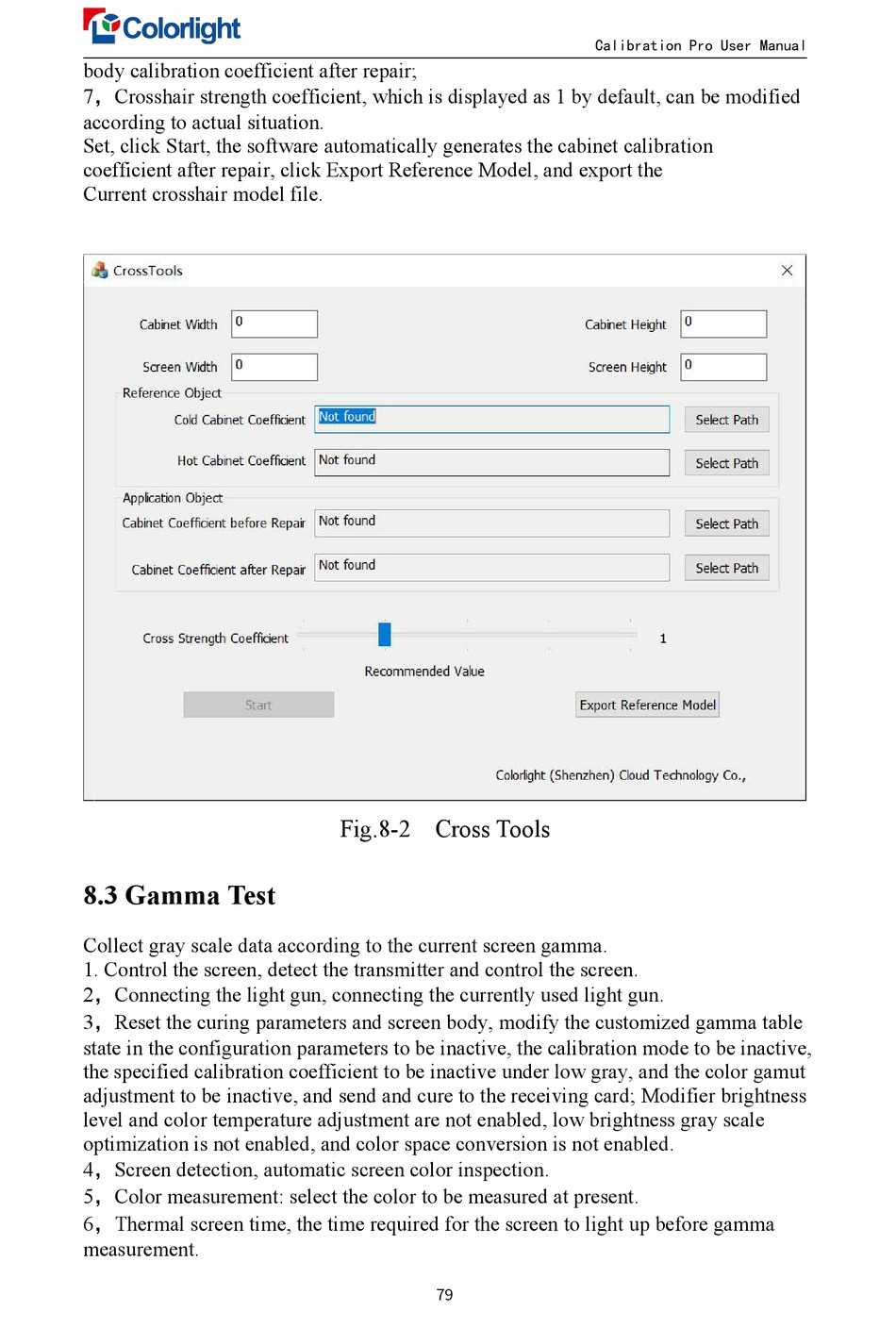

Fig.8-2 Cross Tools

8.3 Gamma Test

Collect gray scale data according to the current screen gamma.
1. Control the screen, detect the transmitter and control the screen.
2，Connecting the light gun, connecting the currently used light gun.
3，Reset the curing parameters and screen body, modify the customized gamma table
state in the configuration parameters to be inactive, the calibration mode to be inactive,
the specified calibration coefficient to be inactive under low gray, and the color gamut
adjustment to be inactive, and send and cure to the receiving card; Modifier brightness
level and color temperature adjustment are not enabled, low brightness gray scale
optimization is not enabled, and color space conversion is not enabled.
4，Screen detection, automatic screen color inspection.
5，Color measurement: select the color to be measured at present.
6，Thermal screen time, the time required for the screen to light up before gamma
measurement.
