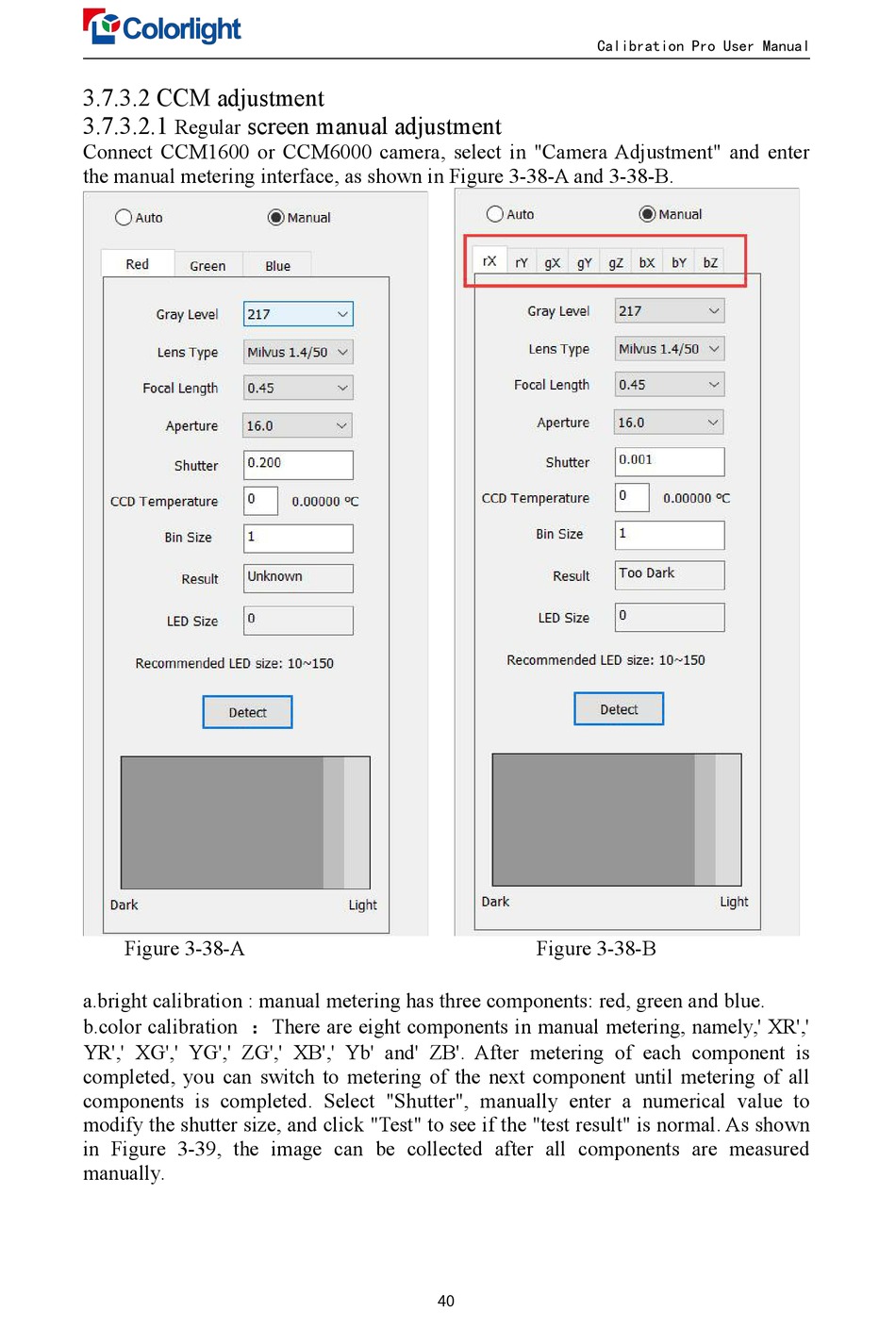

3.7.3.2 CCM adjustment

3.7.3.2.1 screen manual adjustment
Regular
Connect CCM1600 or CCM6000 camera, select in "Camera Adjustment" and enter
the manual metering interface, as shown in Figure 3-38-A and 3-38-B.
Figure 3-38-A Figure 3-38-B
a.bright calibration : manual metering has three components: red, green and blue.
b.color calibration ：There are eight components in manual metering, namely,' XR','
YR',' XG',' YG',' ZG',' XB',' Yb' and' ZB'. After metering of each component is
completed, you can switch to metering of the next component until metering of all
components is completed. Select "Shutter", manually enter a numerical value to
modify the shutter size, and click "Test" to see if the "test result" is normal. As shown
in Figure 3-39, the image can be collected after all components are measured
manually.
