3. For second brightness calibration, select the gray level 200-1 and 200-2 to display
the brightness calibration interface; For second chroma calibration, select the gray
level 200-1 to display the brightness calibration interface; Select the gray level
200-2 to display the chroma calibration interface.
4. It will use Normal data When the [ Calibration Target ] was choosen by
[ Normal ], and spare data by [ spare ].
5. [ Brightness(%) ]: Percentage of RGB means the retained brightness percentage
after calibration (default value is 85).
6. A calibration coefficient will be created and saved in memory until the analysis of
all images have been done (part of images that have been completely analyzed can be
checked),For second calibration and brightness calibration: select the acquisition
times as gray level -1, click the "Generate Coefficient" button, and the software will
automatically save the brightness calibration coefficient to the project folder;
Chromaticity calibration: select the acquisition number as gray level - 1, click the
"generation coefficient" button, and the software will automatically save the
chromaticity calibration coefficient to the project folde.
7. After generating integrated coefficient.
Ⅰ.Regular screen Calibration:Click the "Save Coefficient" button, as shown in the
following steps a and b.
Ⅱ.Double layer calibration: click the "Save Coefficient" button to pop up the "Send
Coefficient to Upper Layer" and "Send Coefficient to Lower Layer" drop-down
buttons, click the "Send Coefficient to Lower Layer" button, as shown in steps a and b
below; Click the "Send coefficient to higher level" button, as shown in the following a

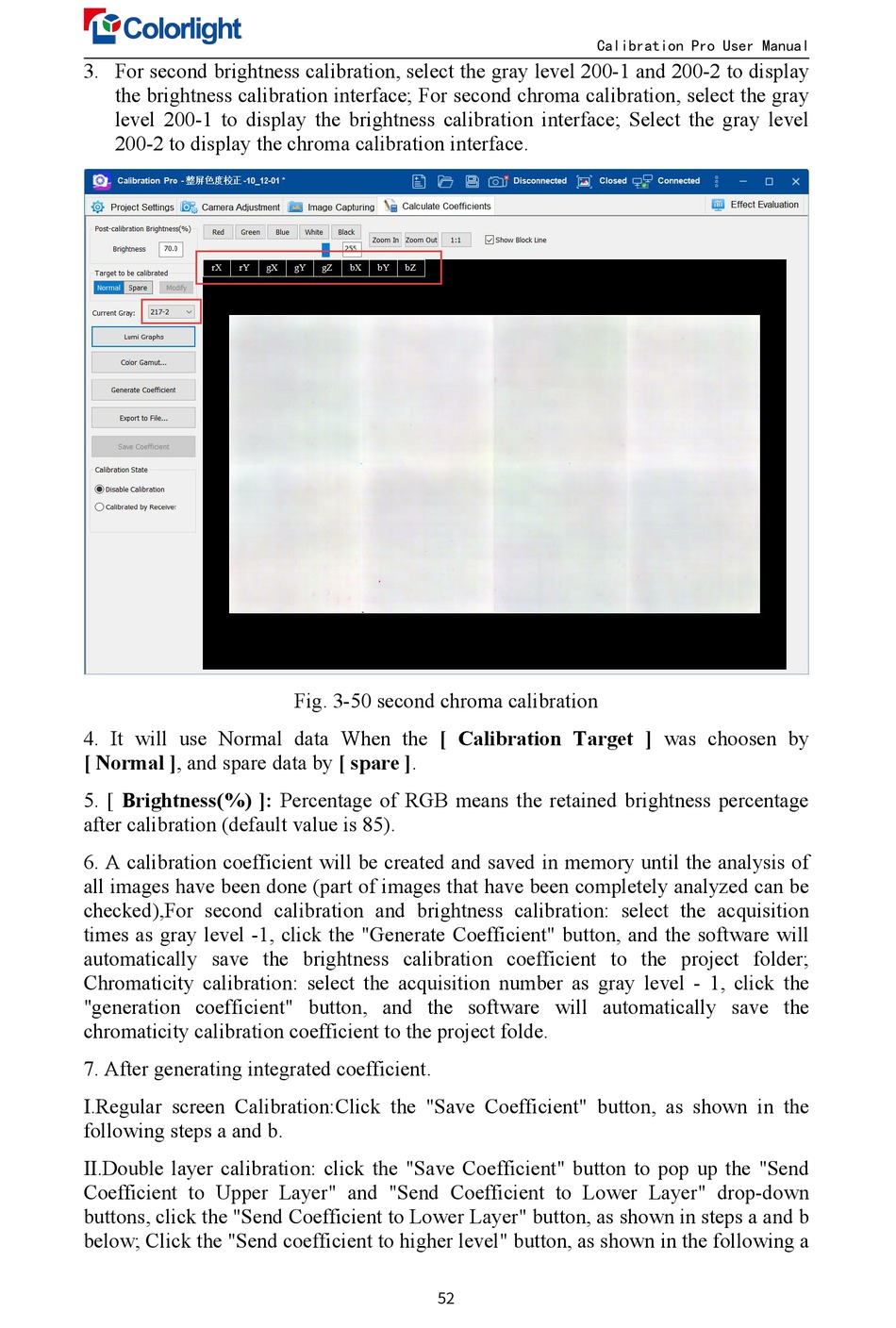

Fig. 3-50 second chroma calibration
