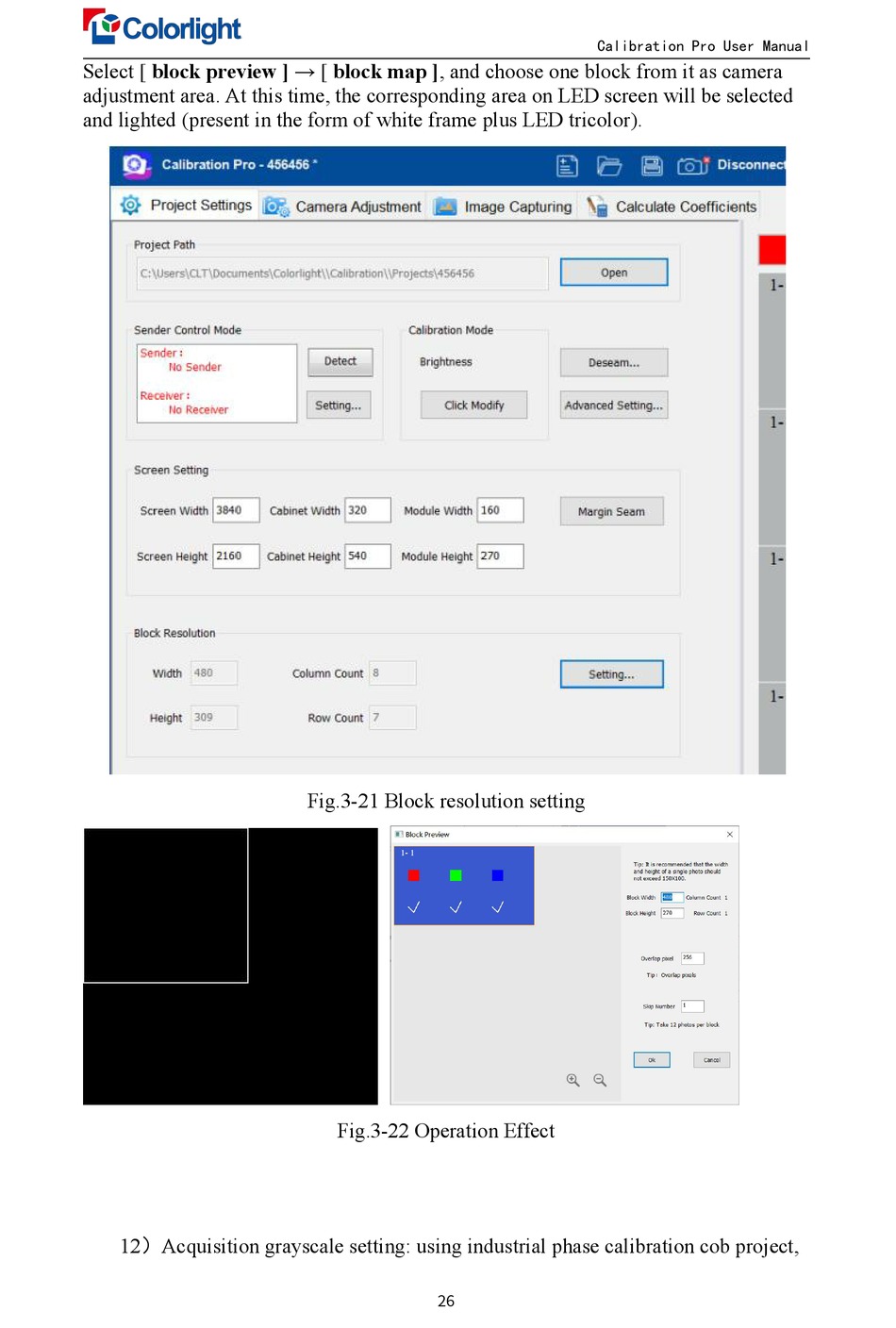

Calibration Pro User Manual
Select [ block preview ] → [ block map ], and choose one block from it as camera
adjustment area. At this time, the corresponding area on LED screen will be selected
and lighted (present in the form of white frame plus LED tricolor).
Fig.3-21 Block resolution setting
Fig.3-22 Operation Effect
12）Acquisition grayscale setting: using industrial phase calibration cob project,
26
