3.7.2.2.2 Second Calibration auto adjustment

Capture Gray Setting Dialog ,Check the second calibration:
1) Brightness Calibration,Select acquisition gray-scale -1, click the "Start Auto
Adjust" button to adjust the brightness, After the adjustment is completed, calibrate
the acquisition gray-scale -1, After the calibration is completed, enable the calibration,
Select acquisition gray-scale -2 on the camera adjustment interface, click to start
automatic metering, and adjust the camera. When the detection results are normal,
image acquisition of acquisition gray-scale -2 can be started.

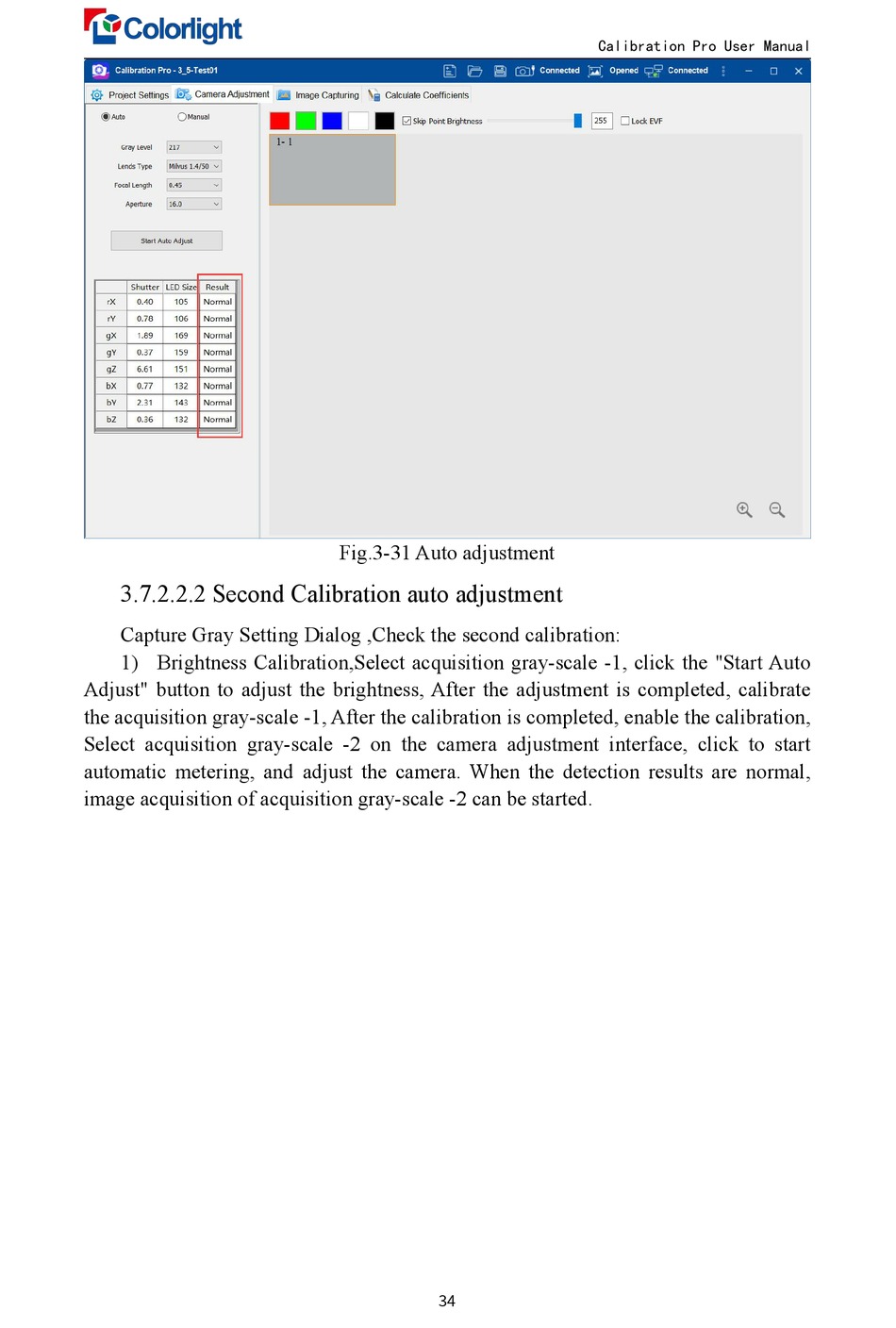

Fig.3-31 Auto adjustment
