Fig.1-14CCM6000

1.2.4 Camera Installation

1.2.4.1 Canon Camera Installation
(1) Rotate and remove the lens cover and the body cover.

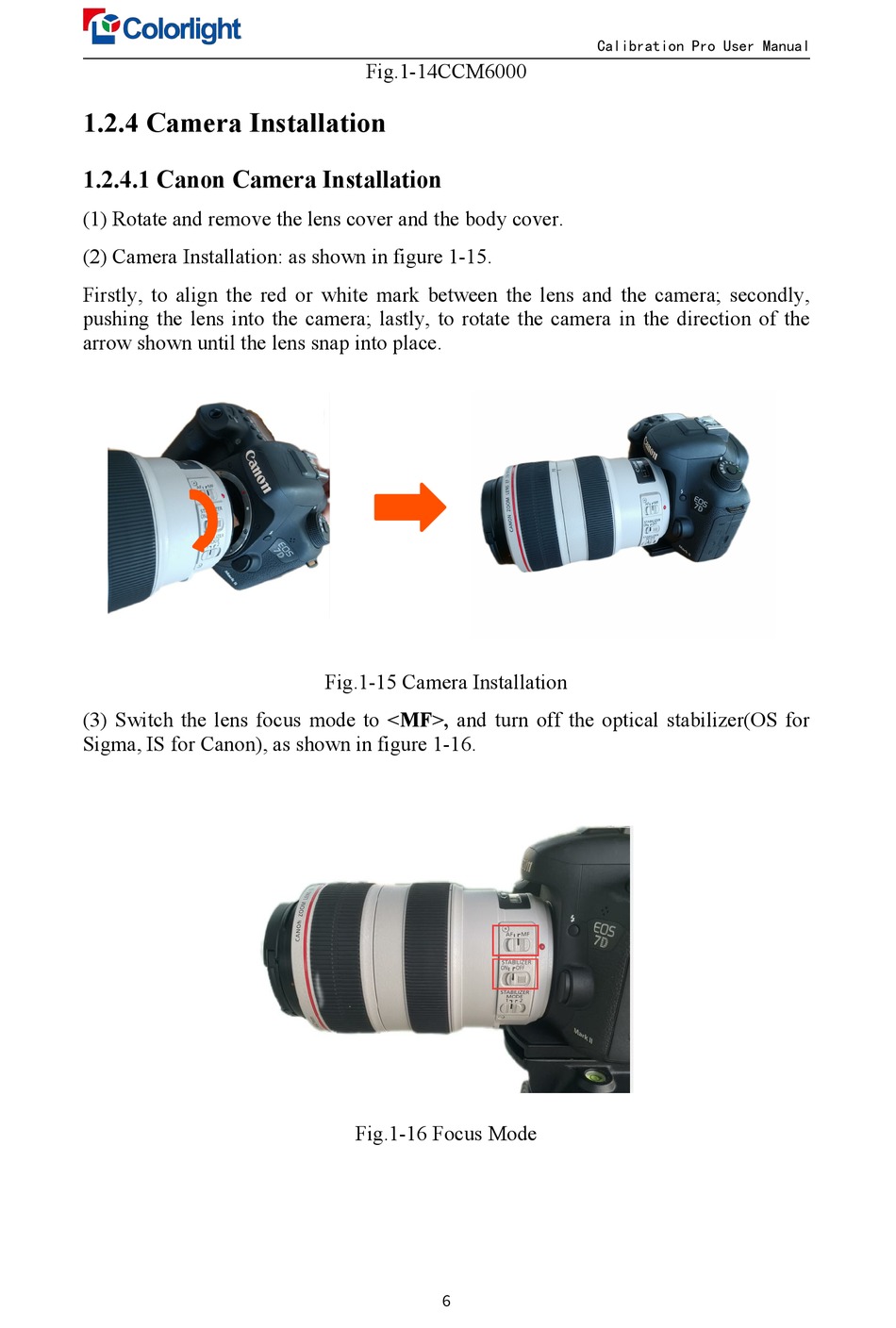

(2) Camera Installation: as shown in figure 1-15.
Firstly, to align the red or white mark between the lens and the camera; secondly,
pushing the lens into the camera; lastly, to rotate the camera in the direction of the
arrow shown until the lens snap into place.
Fig.1-15 Camera Installation
(3) Switch the lens focus mode to <MF>, and turn off the optical stabilizer(OS for
Sigma, IS for Canon), as shown in figure 1-16.
Fig.1-16 Focus Mode
