4. Single cabinet calibration

4.1 Create single cabinet calibration

Step 1/2/3:
Open the software, select the [
(shown as Fig. 3-4).Input the project's name and click [ next ] to entry Cabinet project
wizard-1.
Step 1:The first three steps is same as integrated calibration. So let's introduce from
step four.
Cabinet
Step 2: project wizard-4
cabinet project wizard-1 (Fig. 4-1), includes below settings:
"cabinet Width", "cabinet Height", "Module Width", "Module Height".
Jump Number will be auto calculated according to cabinet width and height
setting.
Grid module： Check if there is a difference between the left 、right Pixel Pitch
and the upper 、 lower Pixel Pitch on the screen.
New Cabinet

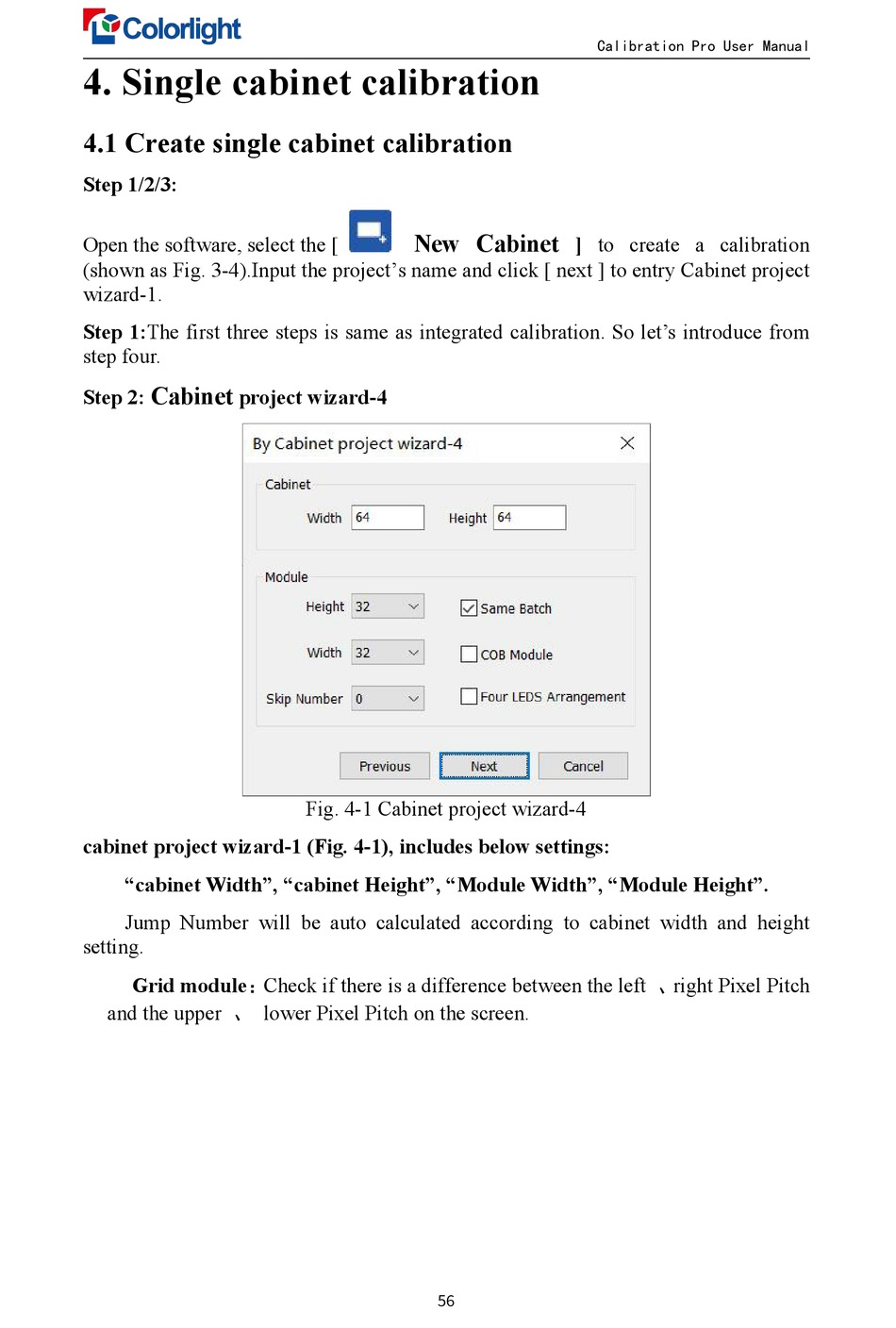

Fig. 4-1 Cabinet project wizard-4
