3.7.3.2.2 Second Calibration manual adjustment
1）Brightness Calibration,Click "R", select acquisition times - 1, click "Test"
button, the software will collect a photo for analysis and prompt the test results,
select acquisition times - 2, click "Test" button, start calibration, the software will
collect a photo for analysis and prompt the test results.
2)Brightness and Chroma Calibration,Click a component in turn, select
the acquisition times - 1, click the "Test" button, the software will collect a
photo for analysis and prompt the test results, select the acquisition times - 2,
click the "Test" button, start the calibration, the software will collect a photo

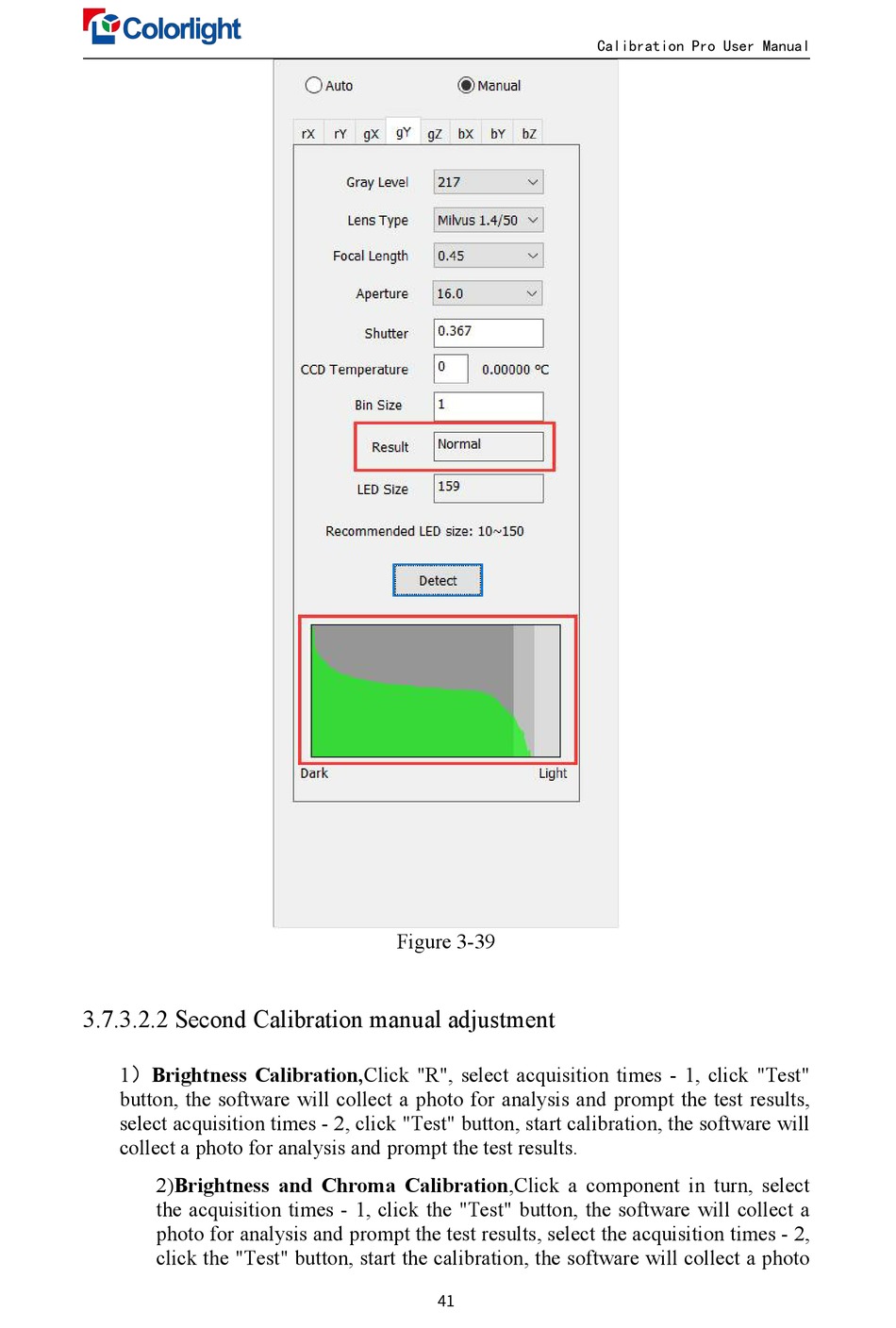

Figure 3-39
