calibration will automatically start calibration; Click OK on the pop-up cabinet, and it
will automatically jump to the next cabinet. You can check the calibration effect by
switching different colors.
4 、 Click Modify to set the corrected brightness of the target gray scale. The
corrected brightness of the current target gray scale is applied to the cabinet that is
corrected late。
5 、 After marking the cabinet and indicating the order, replace it with the next
cabinet and repeat steps 1-3 until all cabinet are calibrated.

4.3.4 Reference model

The model file use to emilinate cross line, not checked by default. If checked the
[ Use Model ] and select the model file, the cabinet of calibrated need send coefficient
anew.

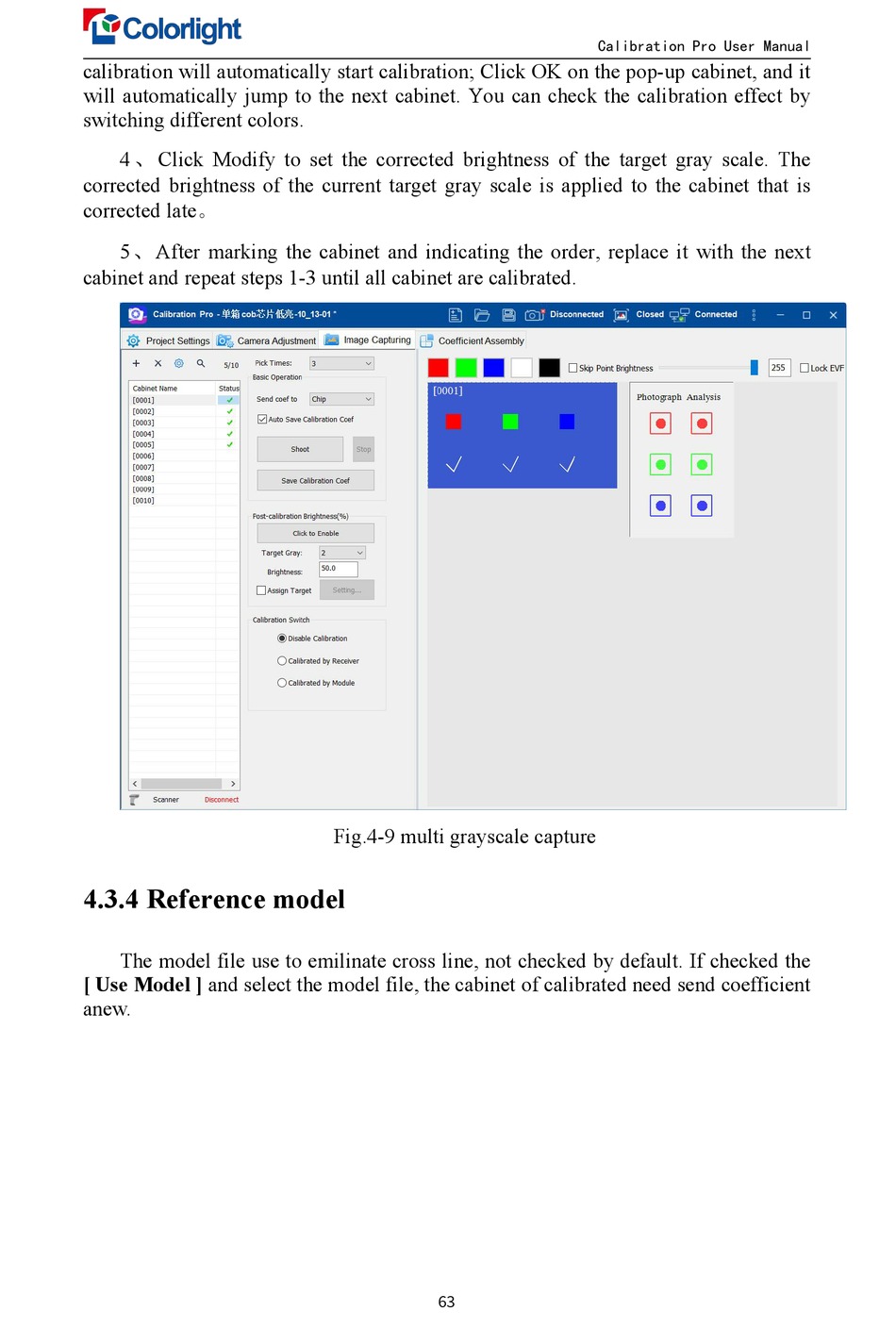

Fig.4-9 multi grayscale capture
63
