Calibration Pro User Manual

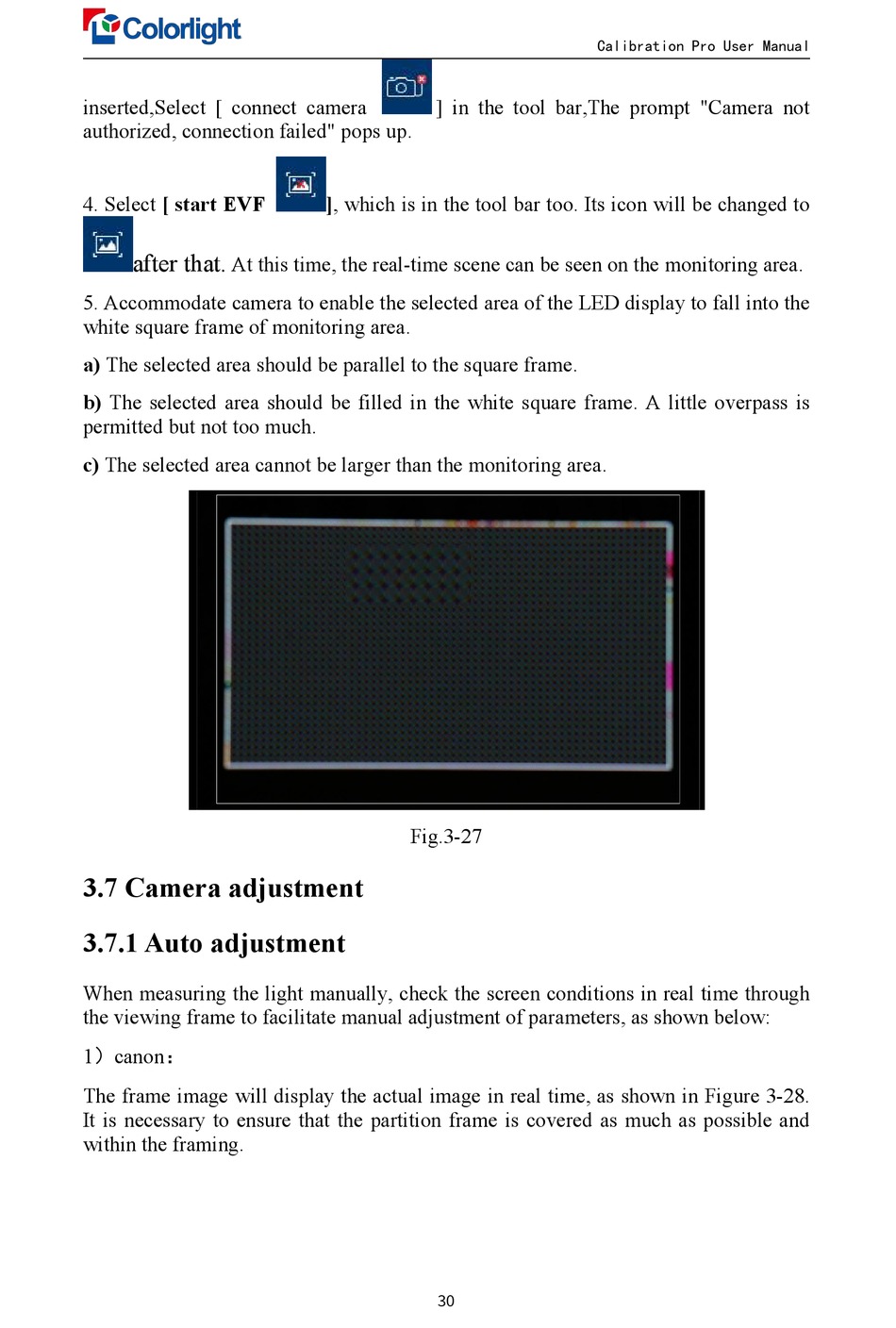

inserted,Select [ connect camera ] in the tool bar,The prompt "Camera not
authorized, connection failed" pops up.
4. Select [ start EVF ], which is in the tool bar too. Its icon will be changed to
after that.
At this time, the real-time scene can be seen on the monitoring area.
5. Accommodate camera to enable the selected area of the LED display to fall into the
white square frame of monitoring area.
a) The selected area should be parallel to the square frame.
b) The selected area should be filled in the white square frame. A little overpass is
permitted but not too much.
c) The selected area cannot be larger than the monitoring area.
Fig.3-27

3.7 Camera adjustment

3.7.1 Auto adjustment

When measuring the light manually, check the screen conditions in real time through
the viewing frame to facilitate manual adjustment of parameters, as shown below:
1）canon：
The frame image will display the actual image in real time, as shown in Figure 3-28.
It is necessary to ensure that the partition frame is covered as much as possible and
within the framing.
