initial coefficient, enable the chip low light calibration, and then conduct the first
photo analysis. After completing the first acquisition analysis, a coefficient of the first
acquisition will be generated, and the acquisition times will be automatically switched
to the next acquisition times. The coefficient of the first acquisition will be sent to the
chip low light, and the next acquisition will start, and the next acquisition will be
executed in sequence until all acquisition times are completed.
2、Select the second cabinet, click the "shoot" button, the software completes the
current acquisition times, and conducts fccl response test, completing five acquisition
tests.
3 、 After marking the cabinet and indicating the order, replace it with the next
cabinet and repeat step 1 until all cabinet are calibrated.

4.3.3.2.2 Multi grayscale capture Image Capturing

1、Click the "Shoot" button, the software will first send the acquisition gamma,
initial coefficient, enable low brightness calibration, and then conduct the first photo
analysis to complete the first acquisition. The software will automatically switch the
acquisition times to the next acquisition times, and send the initial coefficient of the
second acquisition, and then start the second acquisition, and execute in sequence
until all acquisition times complete the acquisition
2 、 After the analysis is completed, the calibration coefficients will be
automatically saved to the chip (by default, automatic saving of calibration
coefficients has been enabled, or you can cancel the check before "auto save
Calibration Coefficients" and change to manual saving of coefficients).
3、After save Calibration Coefficient, a prompt cabinet will pop up, and cabinet

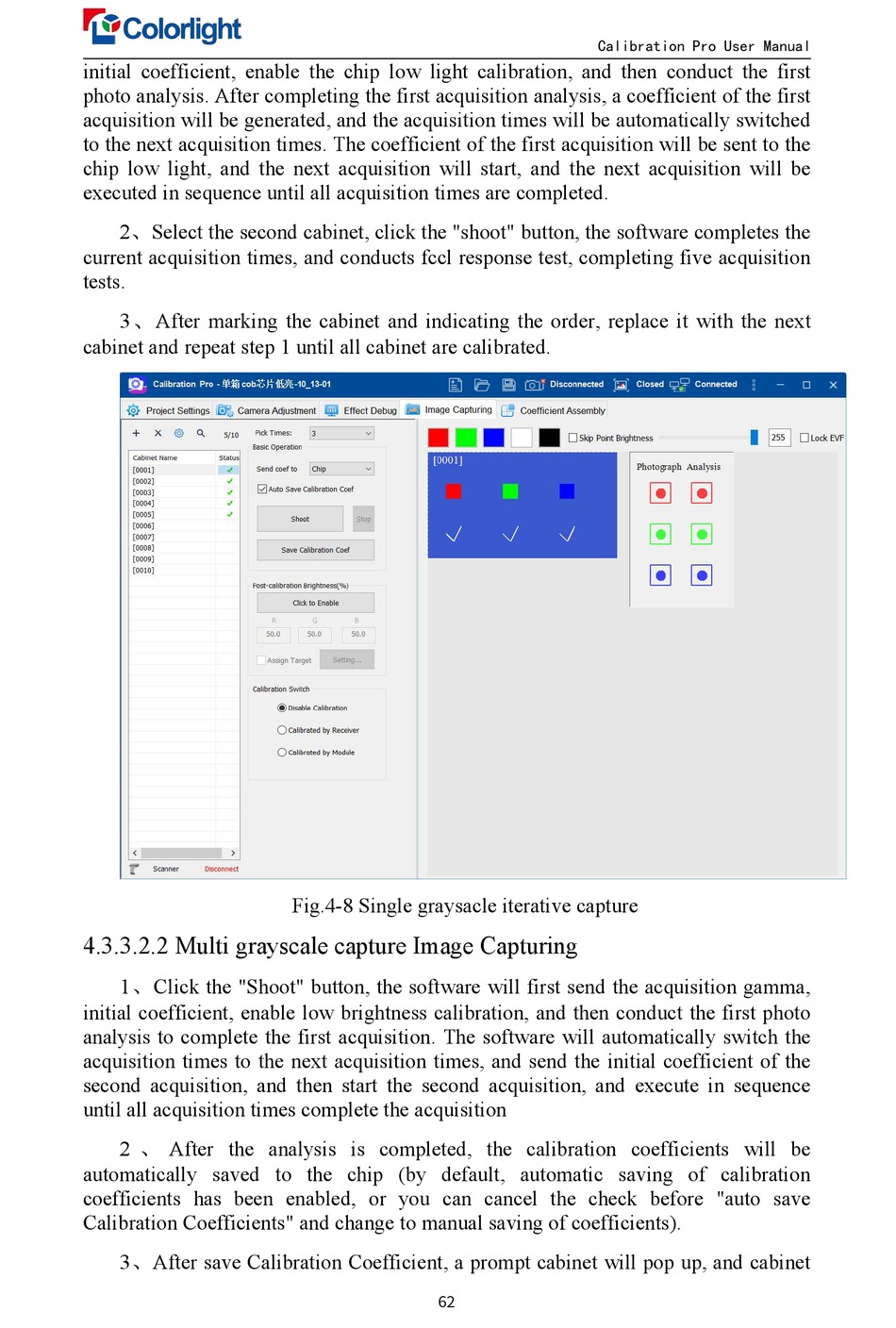

Fig.4-8 Single graysacle iterative capture
62
