Calibration Pro User Manual

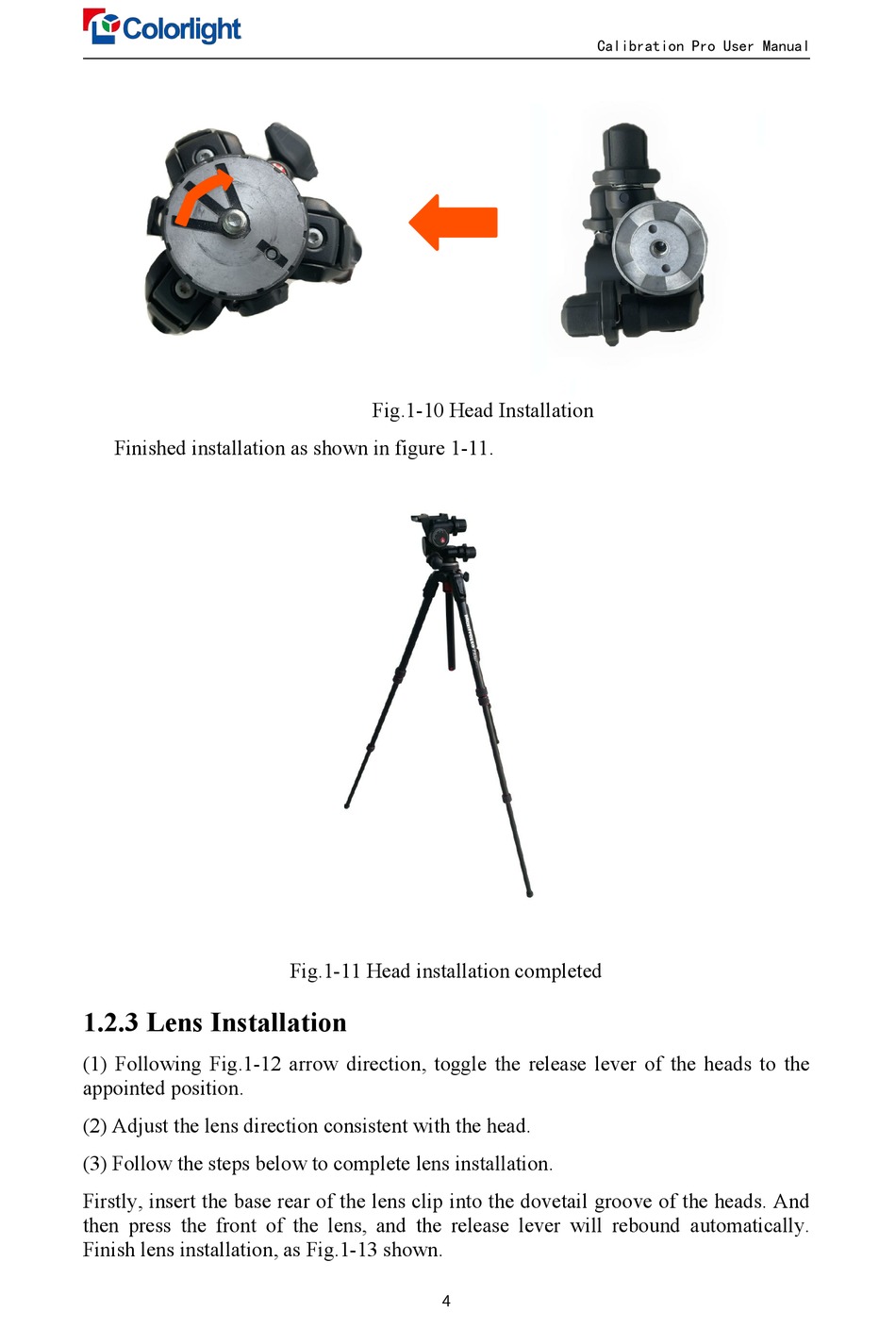

Fig.1-10 Head Installation
Finished installation as shown in figure 1-11.
Fig.1-11 Head installation completed
1.2.3 Lens Installation
(1) Following Fig.1-12 arrow direction, toggle the release lever of the heads to the
appointed position.
(2) Adjust the lens direction consistent with the head.
(3) Follow the steps below to complete lens installation.
Firstly, insert the base rear of the lens clip into the dovetail groove of the heads. And
then press the front of the lens, and the release lever will rebound automatically.
Finish lens installation, as Fig.1-13 shown.
4
