OUTLINE DIMENSIONS

A1 BALL
CORNER
1.40 MAX

ORDERING GUIDE

Model
1
Temperature Range
AD9739BBCZ −40°C to +85°C
AD9739BBCZRL −40°C to +85°C
AD9739BBC −40°C to +85°C
AD9739BBCRL −40°C to +85°C
AD9739-R2-EBZ
1 Z = RoHs Compliant Part.
12.10
12.00 SQ
11.90
10.40
BSC SQ
0.80
BSC
TOP VIEW
DETAIL A
0.43 MAX
0.25 MIN
SEATING
PLANE
COMPLIANT WITH JEDEC STANDARDS MO-275-GGAA-1.

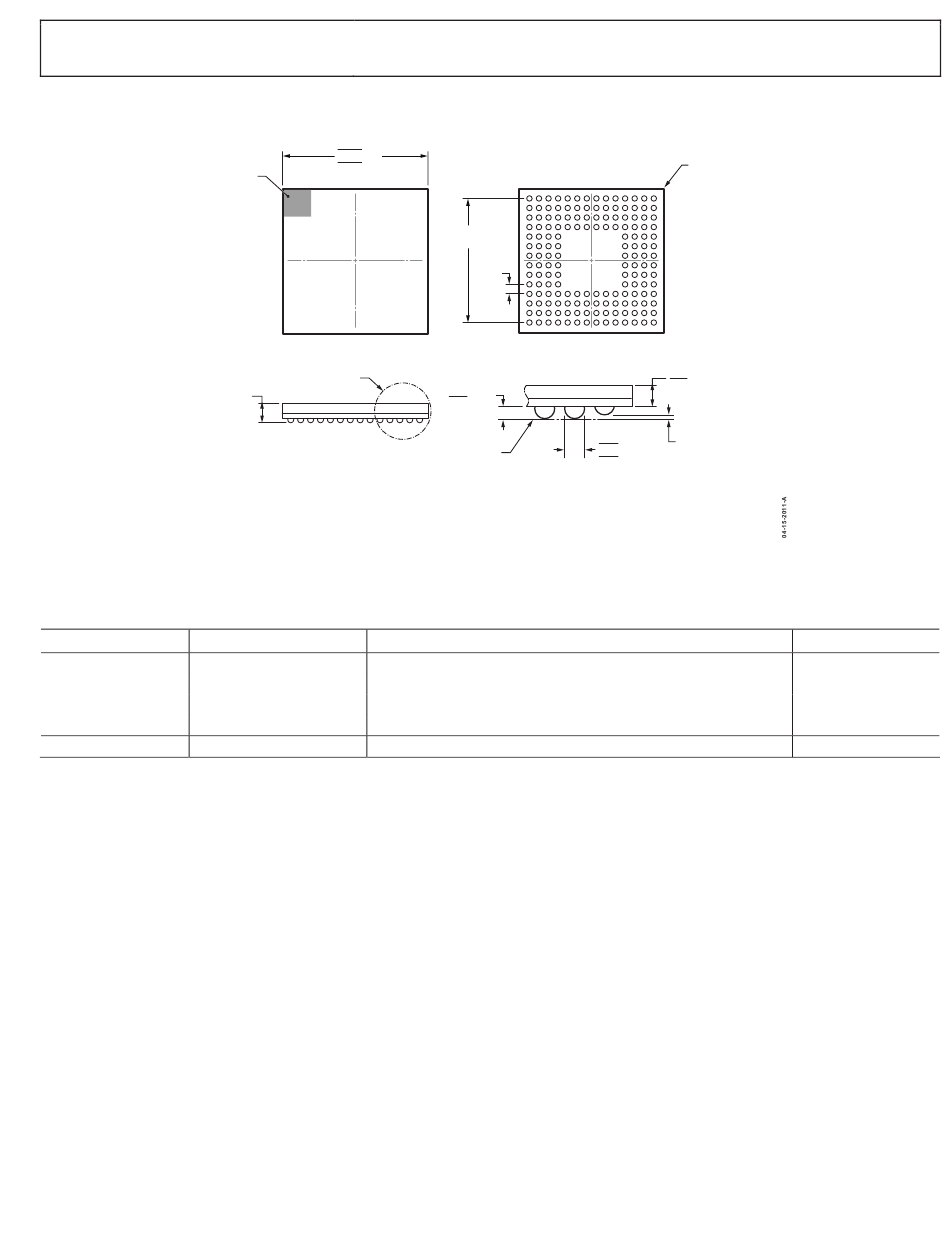

Figure 111. 160-Ball Chip Scale Package Ball Grid Array [CSP_BGA]
(BC-160-1)
Dimensions shown in millimeters
Package Description
160-Ball Chip Scale Package Ball Grid Array [CSP_BGA]
160- Ball Chip Scale Package Ball Grid Array [CSP_BGA]
160- Ball Chip Scale Package Ball Grid Array [CSP_BGA]
160- Ball Chip Scale Package Ball Grid Array [CSP_BGA]
Evaluation Board for Normal, CMTS, and Mix Mode Evaluation
Rev. A | Page 53 of 56
A1 BALL
CORNER
13 11 9 7 5 3 1
14 12 10 8 6 4 2
A
B
C
D
E
F
G
H
J
K
L
M
N
P
BOTTOM VIEW
1.00 MAX
DETAIL A
0.85 MIN
0.55
COPLANARITY
0.20
0.50
0.45
BALL DIAMETER
AD9739
Package Option
BC-160-1
BC-160-1
BC-160-1
BC-160-1
