AD9739
0
–10
–20
–30
–40
–50
–60
–70
–80
0 100 200 300

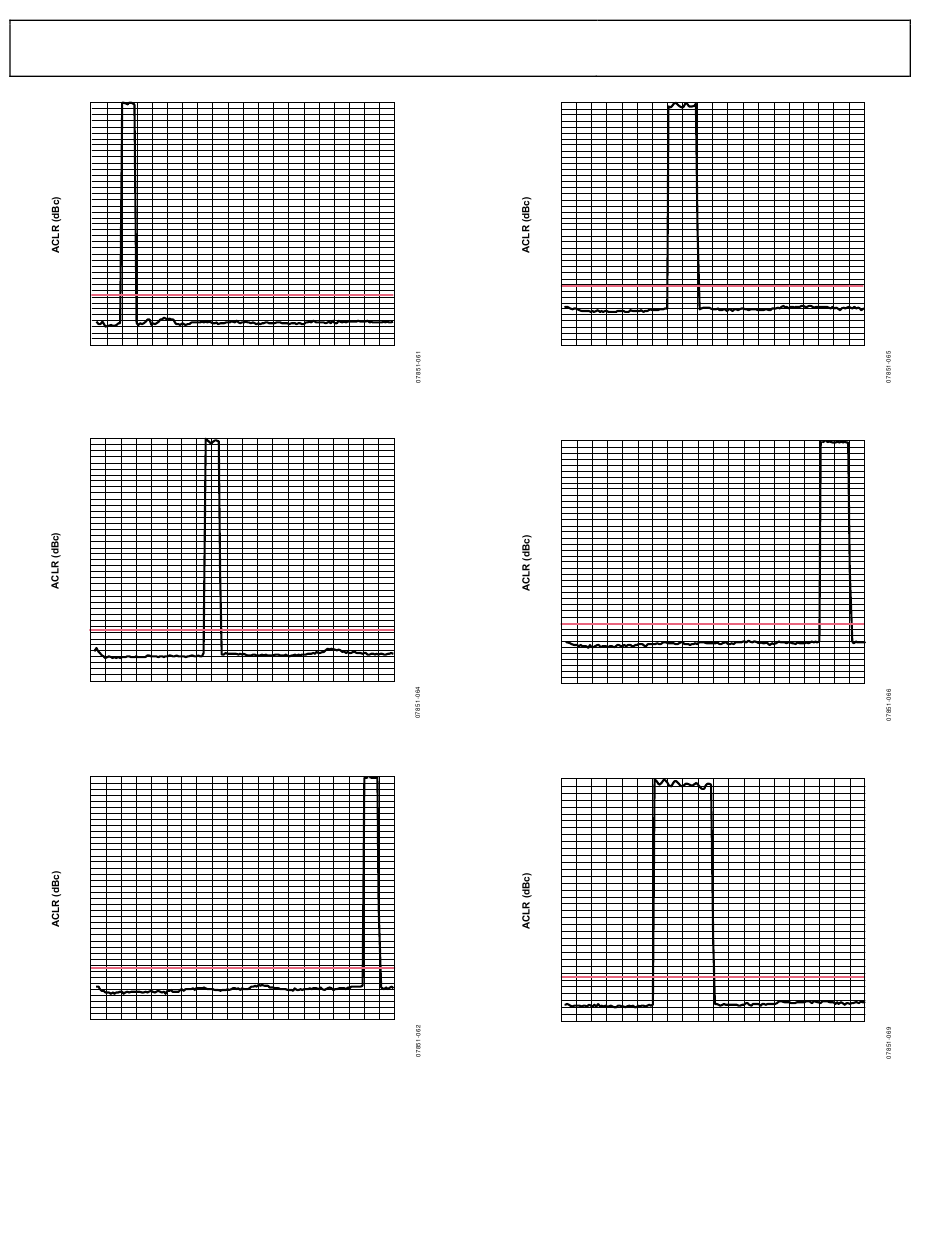

Figure 64. Eight-Carrier DOCSIS ACLR Spectral Plot @ 100 MHz
(DOCSIS SPEC (Red Line) Is 63 dBc; Harmonic Exception Is 54 dBc)
0
–10
–20
–30
–40
–50
–60
–70
–80
0 100 200 300
Figure 65. Eight-Carrier DOCSIS ACLR Spectral Plot @ 400 MHz
(DOCSIS SPEC (Red Line) Is 63 dBc; Harmonic Exception Is 54 dBc)
0
–10
–20
–30
–40
–50
–60
–70
–80
0 100 200 300
Figure 66. Eight-Carrier DOCSIS ACLR Spectral Plot @ 900 MHz
(DOCSIS SPEC (Red Line) Is 63 dBc; Harmonic Exception Is 54 dBc)
400 500 600 700 800 900
F (MHz)
OUT
400 500 600 700 800 900 1000
f
(MHz)
OUT
400 500 600 700 800 900
F (MHz)
OUT
0
–10
–20
–30
–40
–50
–60
–70
–80
1000 0
Figure 67. 16-Carrier DOCSIS ACLR Spectral Plot @ 400 MHz
(DOCSIS SPEC (Red Line) Is 60 dBc ; Harmonic Exception Is 48 dBc)
0
–10
–20
–30
–40
–50
–60
–70
–80
0
Figure 68. 16-Carrier DOCSIS ACLR Spectral Plot @ 900 MHz
(DOCSIS SPEC (Red Line) Is 60 dBc; Harmonic Exception Is 48 dBc)
0
–10
–20
–30
–40
–50
–60
–70
1000
0
Figure 69. 32-Carrier DOCSIS ACLR Spectral Plot @ 400 MHz
(DOCSIS SPEC (Red Line) Is 57 dBc; Harmonic Exception Is 42 dBc)
