BIOPSY INSTRUMENT HOLDERS

8 BIOPSY INSTRUMENT
HOLDERS
8.1

Frameless Biopsy System

General Information
The Frameless Biopsy System (55940) is an instrument that attaches directly to skull clamps in
order to navigate frameless biopsies and endoscopic examinations.

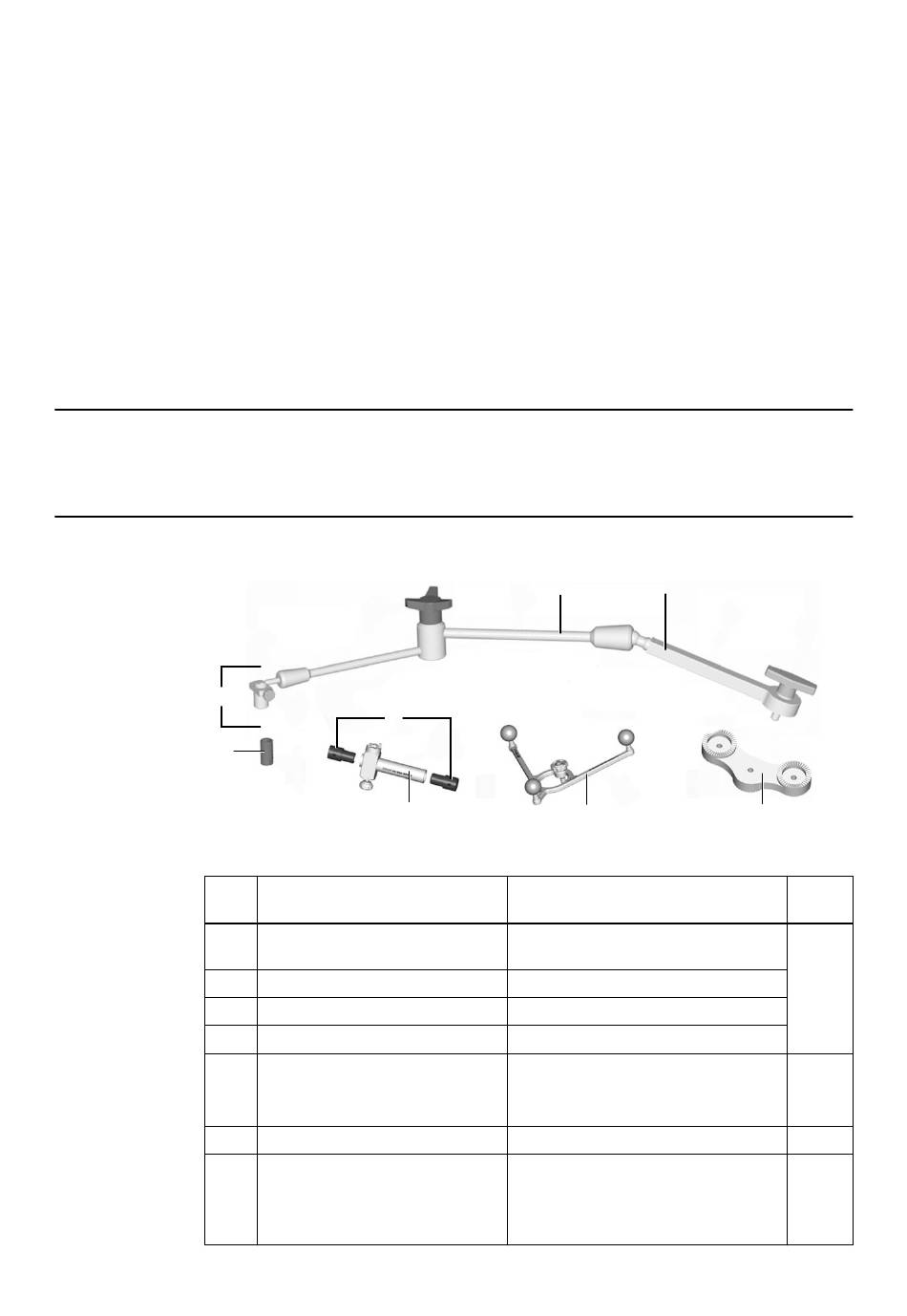

Components
②
①
No.
①
②
③
④
⑤
⑥
⑦
Instrument User Guide Rev. 2.3 Cranial/ENT Optical
⑧
⑦
Component
Sleeve
Guide
Articulated arm
Mayfield adapter
V-inset for Mayfield Head Holder
V-inset for IMRIS Head Holder
V-inset for GE Head Holder
Biopsy Alignment Array
Biopsy Tube
③ ④
⑥
Figure 56
Use
Navigate cylindrical instruments with a
diameter of 3.6 - 10 mm
Interface to enable the simultaneous use
of the reference arm and the Vario-
Guide.
Navigate:
• Precalibrated instruments
• Other cylindrical instruments that are
not pre-calibrated
⑤
Article
No.
N/A
52003
52005
52006
55972
55970
