MICROSCOPES
9.7.3
Connection to Kick 1.0 and Kick 2.0
How to Connect

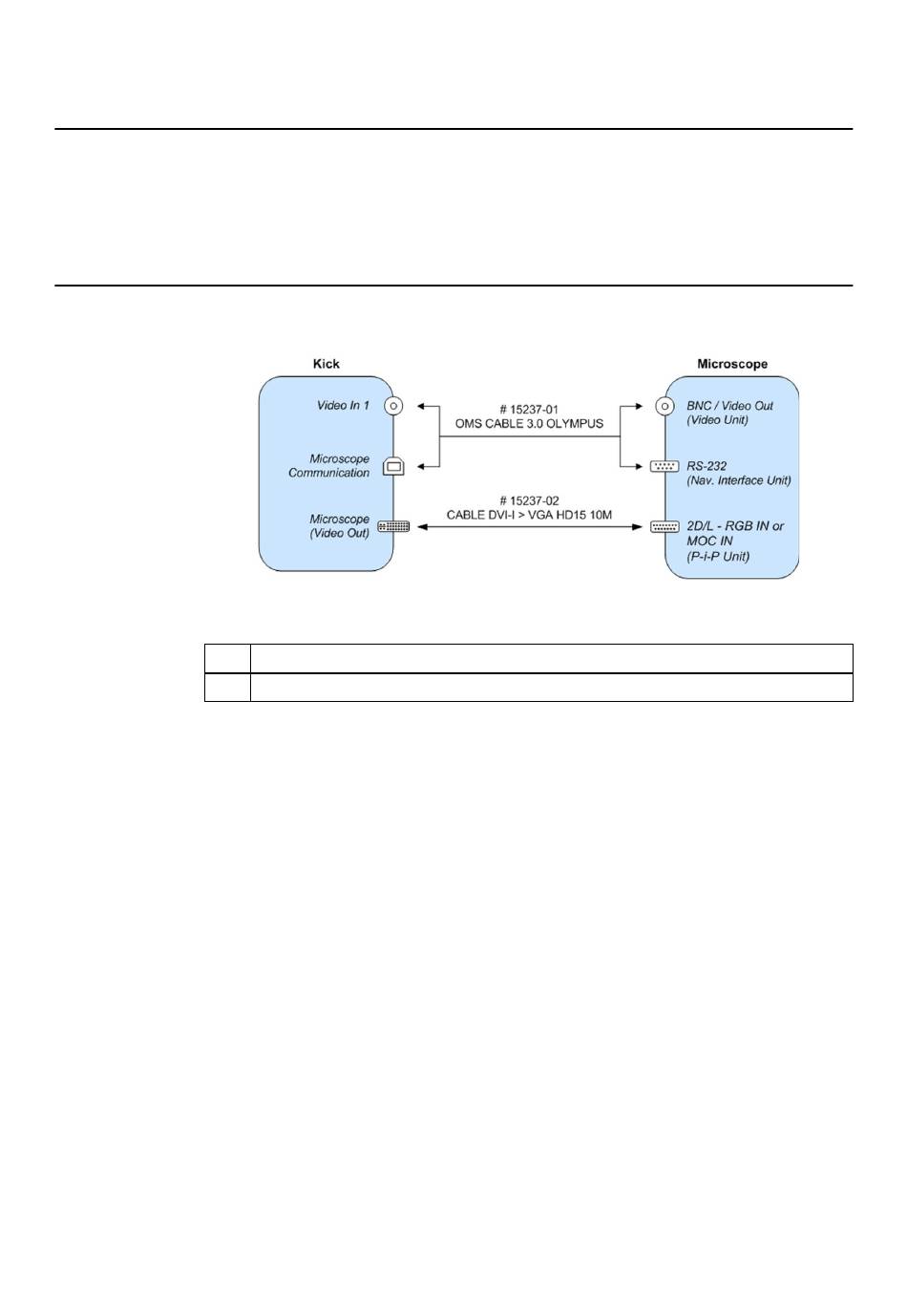

Connect the supplied cables between the microscope ports and the corresponding ports on the
Kick system according to the following diagrams.
NOTE: Secure the loose cables that hang from Kick to the base of the system with the Velcro
strap provided. This strap fits through the hole located on the foot of the system.
Olympus OME-7000/8000/9000
No.
①
Instrument User Guide Rev. 2.3 Cranial/ENT Optical
Component
Gender changer DB9 FA440-R2 (plug-plug)
①
Figure 100
133
