Connection to Kick 1.0 and Kick 2.0
How to Connect

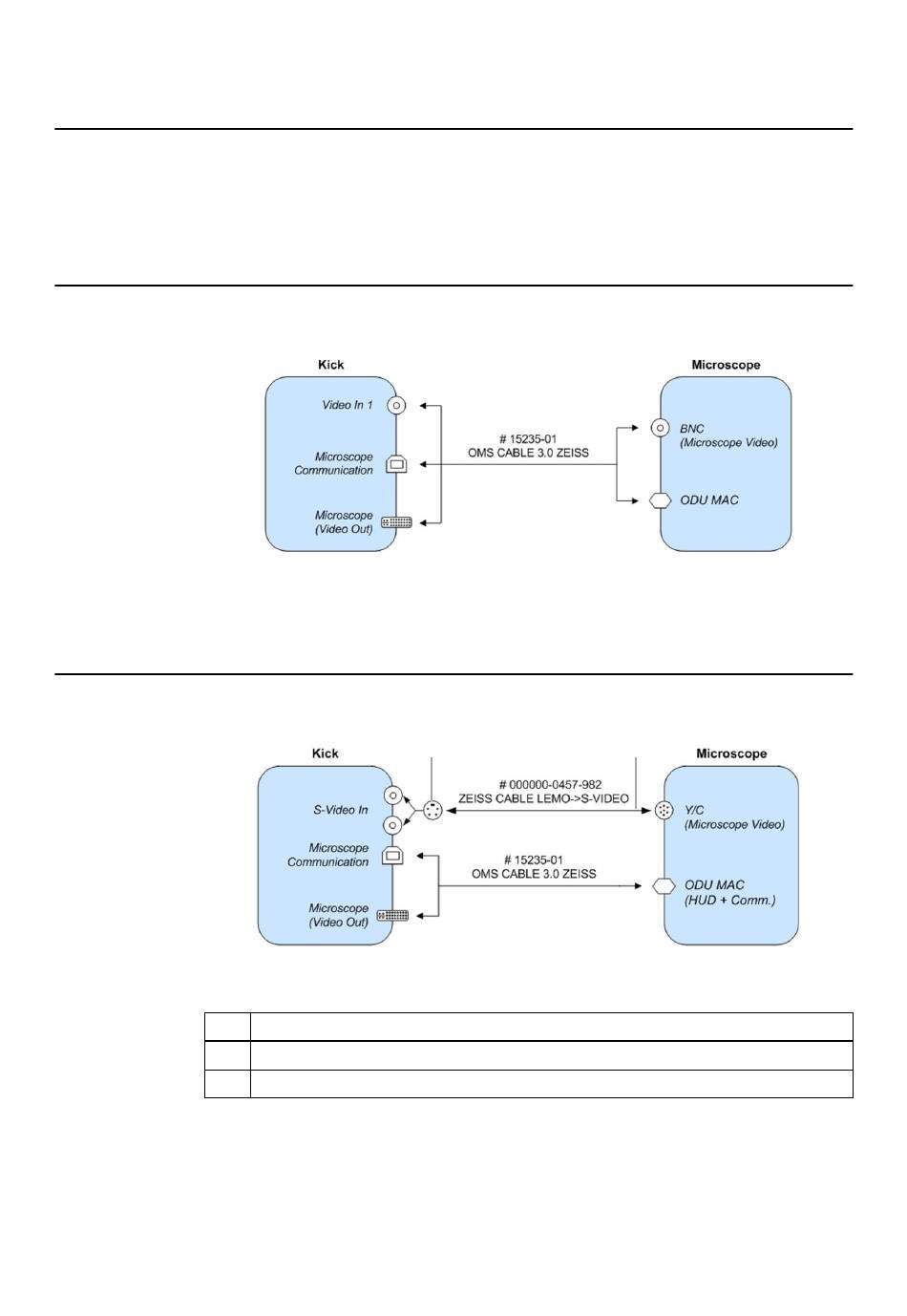

Connect the supplied cables between the microscope ports and the corresponding ports on the
Kick system according to the following diagrams.
NOTE: Secure the loose cables that hang from Kick to the base of the system with the Velcro
strap provided. This strap fits through the hole located on the foot of the system.
Zeiss OPMI Pentero/Neuro/Vario/VARIO 700 (SD)
NOTE: Image injection is not available for OPMI Vario and VARIO 700.
Zeiss OPMI PENTERO 800/PENTERO 900/VARIO 700 (HD)
No.
①
②
NOTE: Image injection is not available for OPMI VARIO 700.
Instrument User Guide Rev. 2.3 Cranial/ENT Optical
①
Component
Adapter cable SVHS to 2BNC
FGA 2B-4St/S-VHS-St 10m
Figure 115
②
Figure 116
141
