Connection to Kolibri

9.8.4 Connection to Kolibri
How to Connect

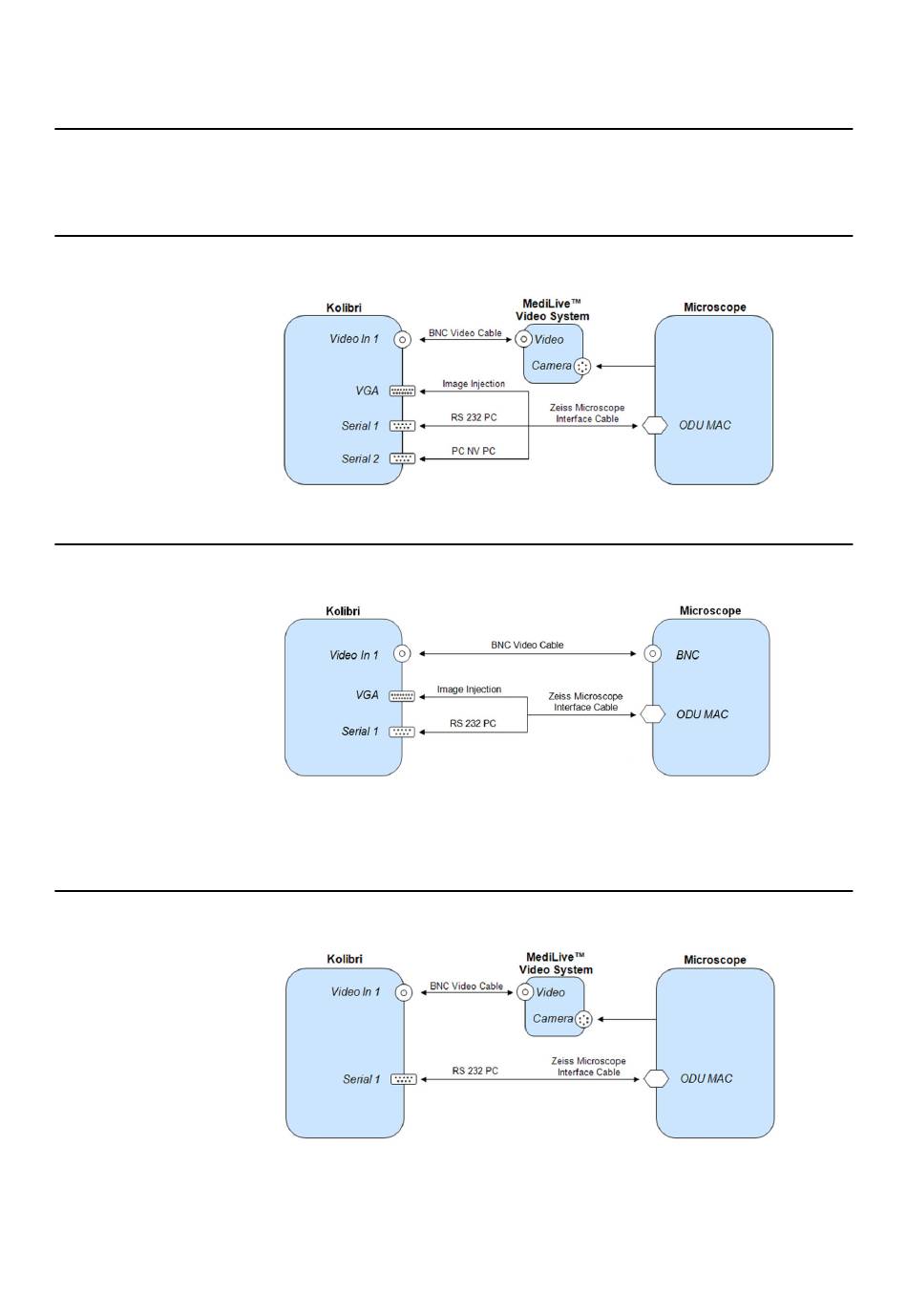

Connect the supplied cables between the microscope ports and the corresponding ports on the
Kolibri system according to the following diagrams.
Zeiss OPMI Neuro CRT/MultiVision
Zeiss OPMI Pentero/Pentero C/PENTERO 800/PENTERO 900/VARIO 700
NOTE: Image injection is not available for OPMI VARIO 700.
Zeiss OPMI Vario
NOTE: Image injection is not available for OPMI Vario.
142
Figure 117
Figure 118
Figure 119
Instrument User Guide Rev. 2.3 Cranial/ENT Optical
