Instrument Adapter Package
No. Name
②
③
NOTE: Any instrument adapter clamp can be attached to any array. If you exchange the array for
one of a different size during the procedure, recalibrate and verify the instrument before
continuing.
Proper Handling of Instrument Adapters
Warning
Ensure the adapter is large enough for the instrument. The larger the instrument, the larger
the adapter you should use. An adapter that is too small can result in imprecise calibration
or navigation.
How to Attach the Array to the Instrument Adapter Clamp
Step
1.
2.
3.
80
Instrument Adapter Array Size M
Instrument Adapter Array Size ML
Instrument Adapter Array Size L
Instrument Adapter Array Size XL
Tool for Instrument Adapter
Select the required Instrument Adapter Clamp and Instrument Adapter Array.
NOTE: The larger the instrument, the larger the array you should use.

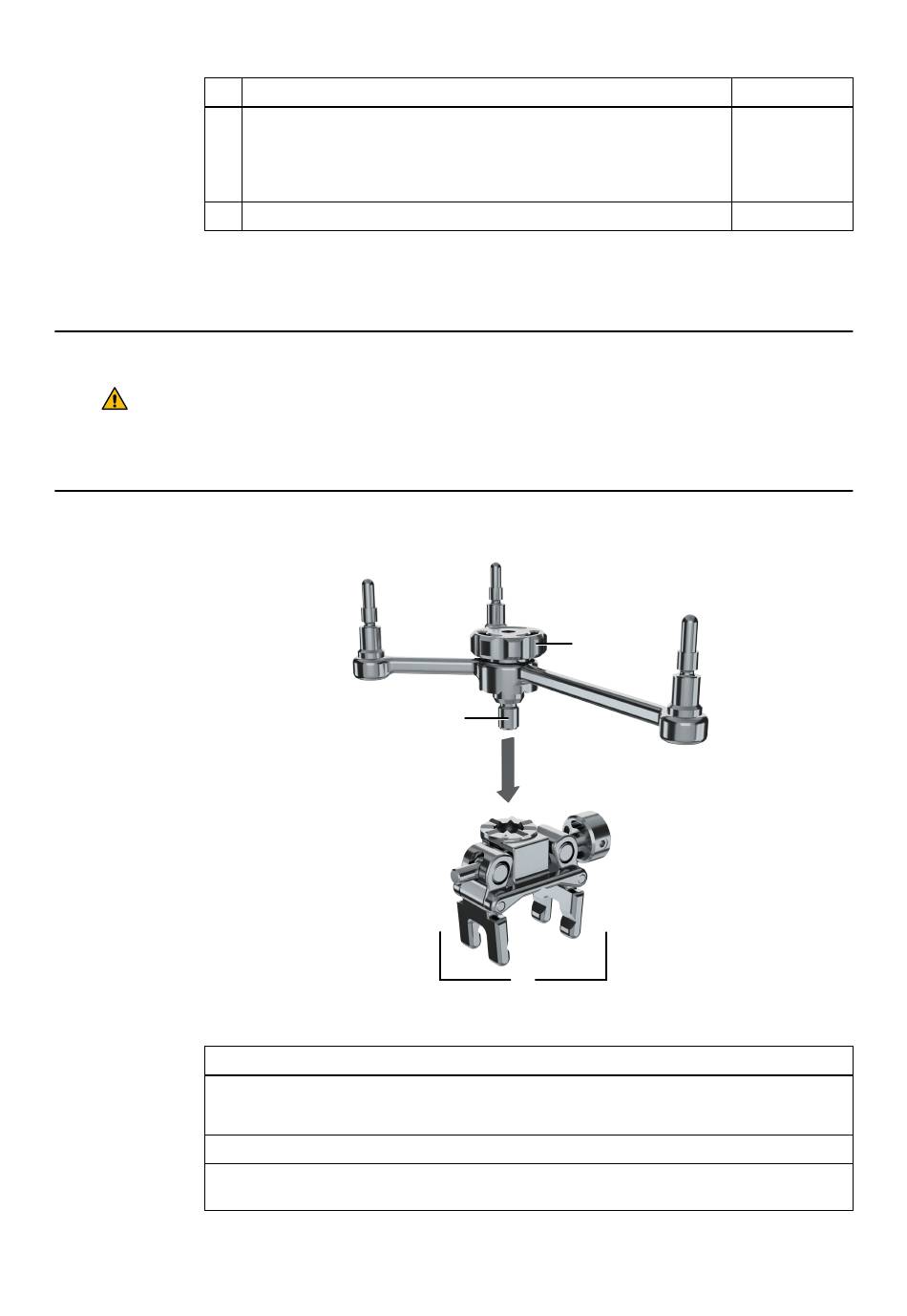

Insert the array stem ② into the clamp ① and align the teeth on both components.
Tighten the screw knob ③ by hand or by using the Tool for Instrument Adapter, ensur-
ing that the array is securely attached to the clamp.
③
②
①
Figure 39
Instrument User Guide Rev. 2.3 Cranial/ENT Optical
Article No.
41798
41799
41801
41802
55061
