MICROSCOPES
9.7
Olympus Microscopes
How to Connect
Connect the supplied cables between the microscope ports and the corresponding ports on the
system according to the following diagrams.
NOTE: Secure the loose cables that hang from Curve 1.0 to the base of the system with the
Velcro straps provided. This strap fits through the hole located on the foot of the system.

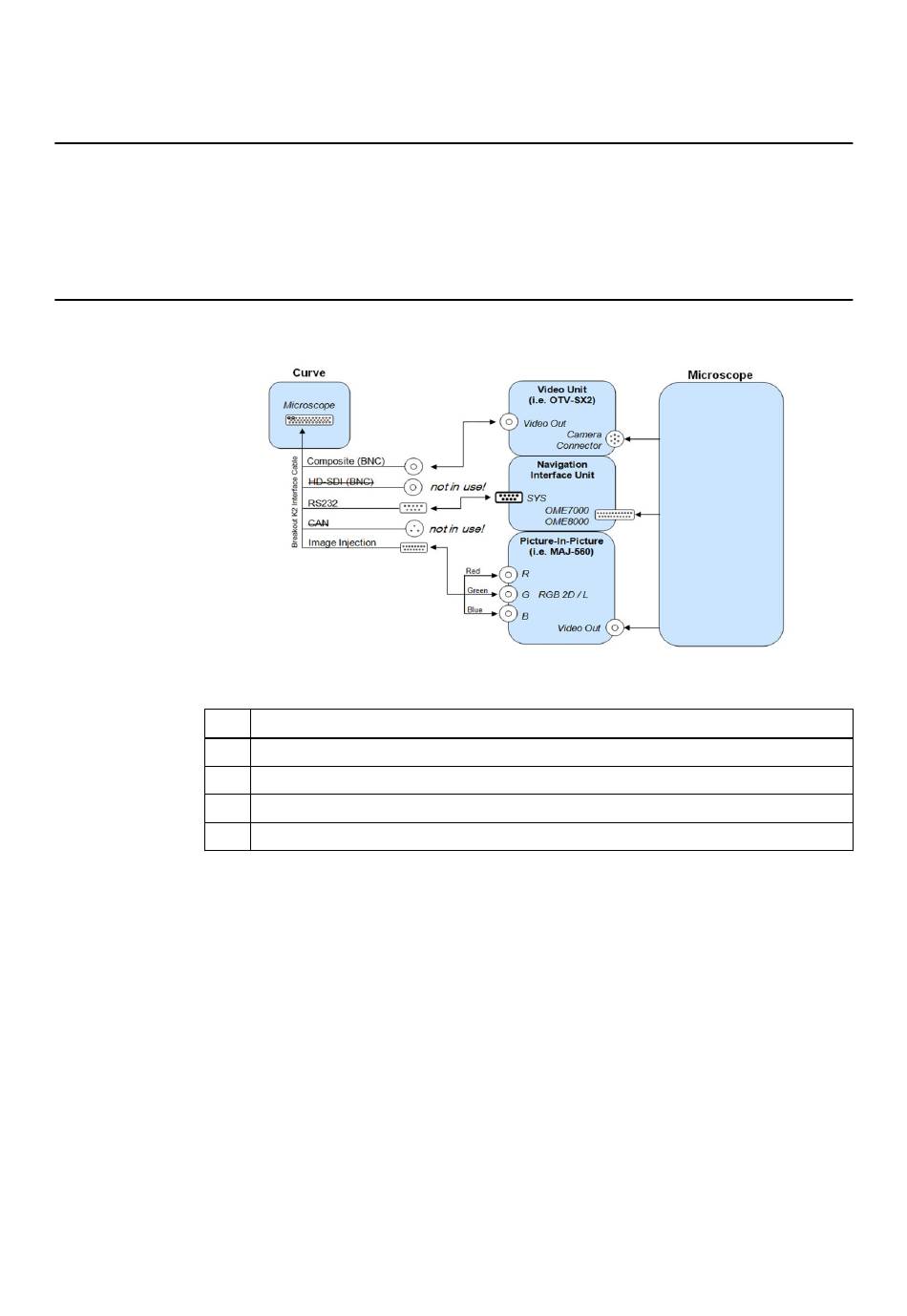

Olympus OME-7000/8000
No.
①
②
③
④
Instrument User Guide Rev. 2.3 Cranial/ENT Optical
Component
VGA, 5x BNC cable
RS 232 microscope cable
BNC video cable
9 pole gender changer (female-female)
③
④
②
①
Figure 96
129
