Connection to Curve 1.1 and Above

9.5.1 Connection to Curve 1.1 and Above
How to Connect

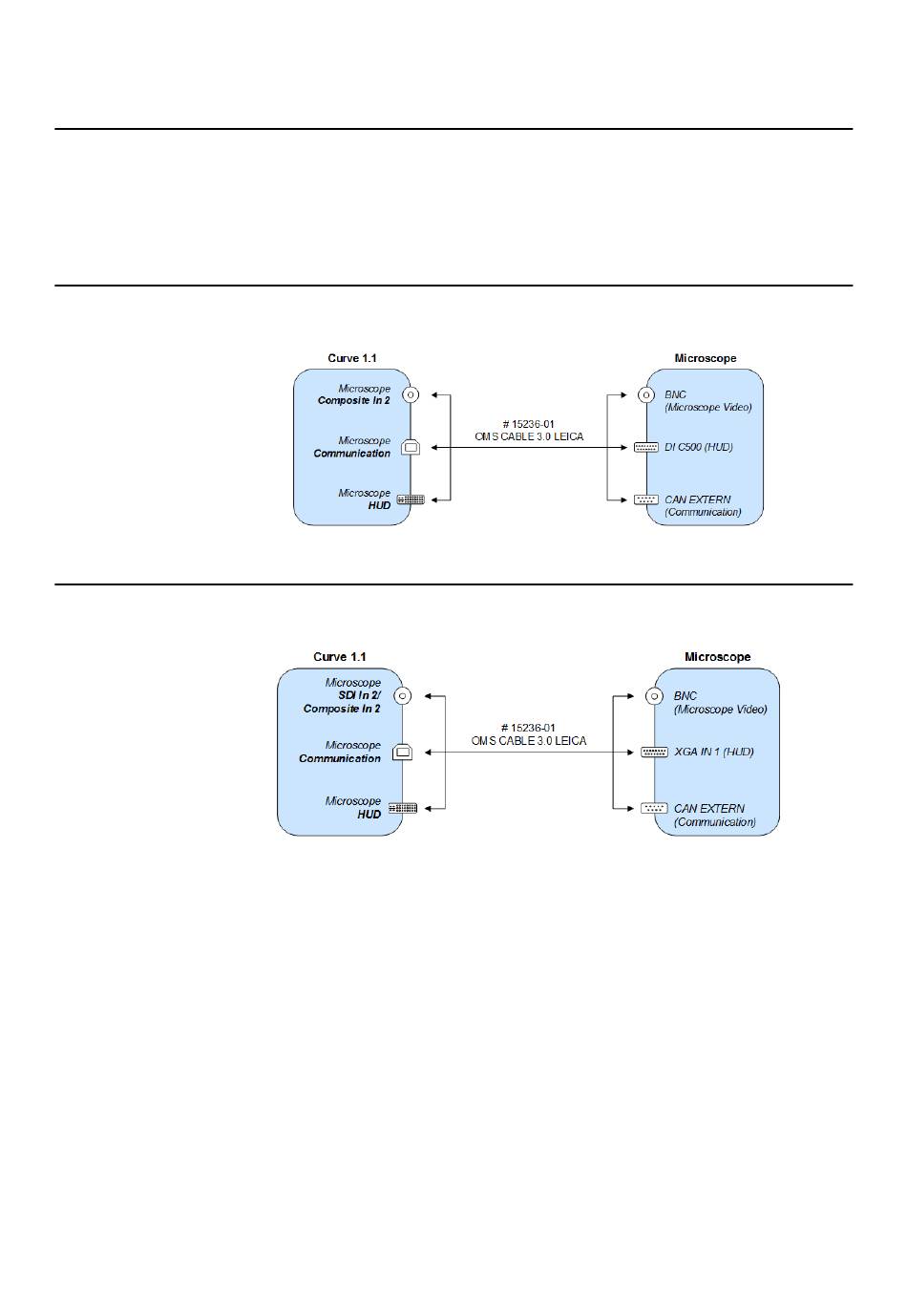

Connect the supplied cables between the microscope ports and the corresponding ports on the
Curve 1.1 system according to the following diagrams.
NOTE: Secure the loose cables that hang from Curve to the base of the system with the Velcro
strap provided. This strap fits through the hole located on the foot of the system.
Leica M500-N/M520
Leica M525/M530/M720 (SAI)
NOTE: It is recommended to use an HD-SDI connection if available.
