9.8 Zeiss Microscopes
How to Connect

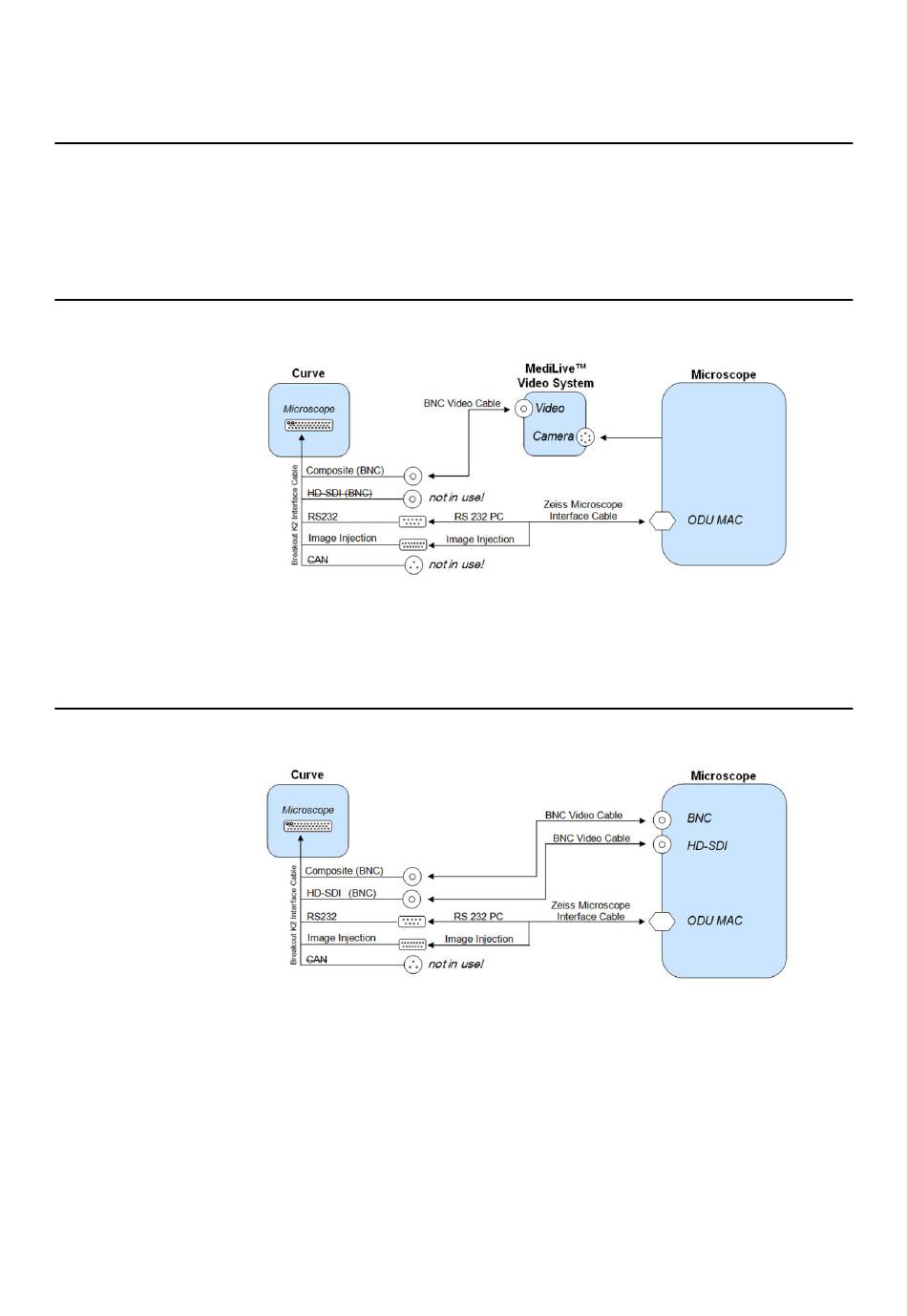

Connect the supplied cables between the microscope ports and the corresponding ports on the
system according to the following diagrams.
NOTE: Secure the loose cables that hang from Curve 1.0 to the base of the system with the
Velcro straps provided. This strap fits through the hole located on the foot of the system.
Zeiss OPMI Neuro CRT/MultiVision
NOTE: The handle controls of the microscope are not supported when using the OPMI MultiVision
with the Curve system.
Zeiss OPMI Pentero/Pentero C/PENTERO 800/PENTERO 900/VARIO 700, KINEVO 900 (Legacy ODU Interface)
NOTE: Image injection is not available for OPMI VARIO 700.
NOTE: It is recommended to use an HD-SDI connection if available.
