BIOPSY INSTRUMENT HOLDERS
Warning
Assure that the headclamp's maximum load permits mounting the VarioGuide, V-connector
plus the instruments to be used.
During instrument insertion the instrument should slide easily and firmly into the sleeve
without resistance or any looseness.

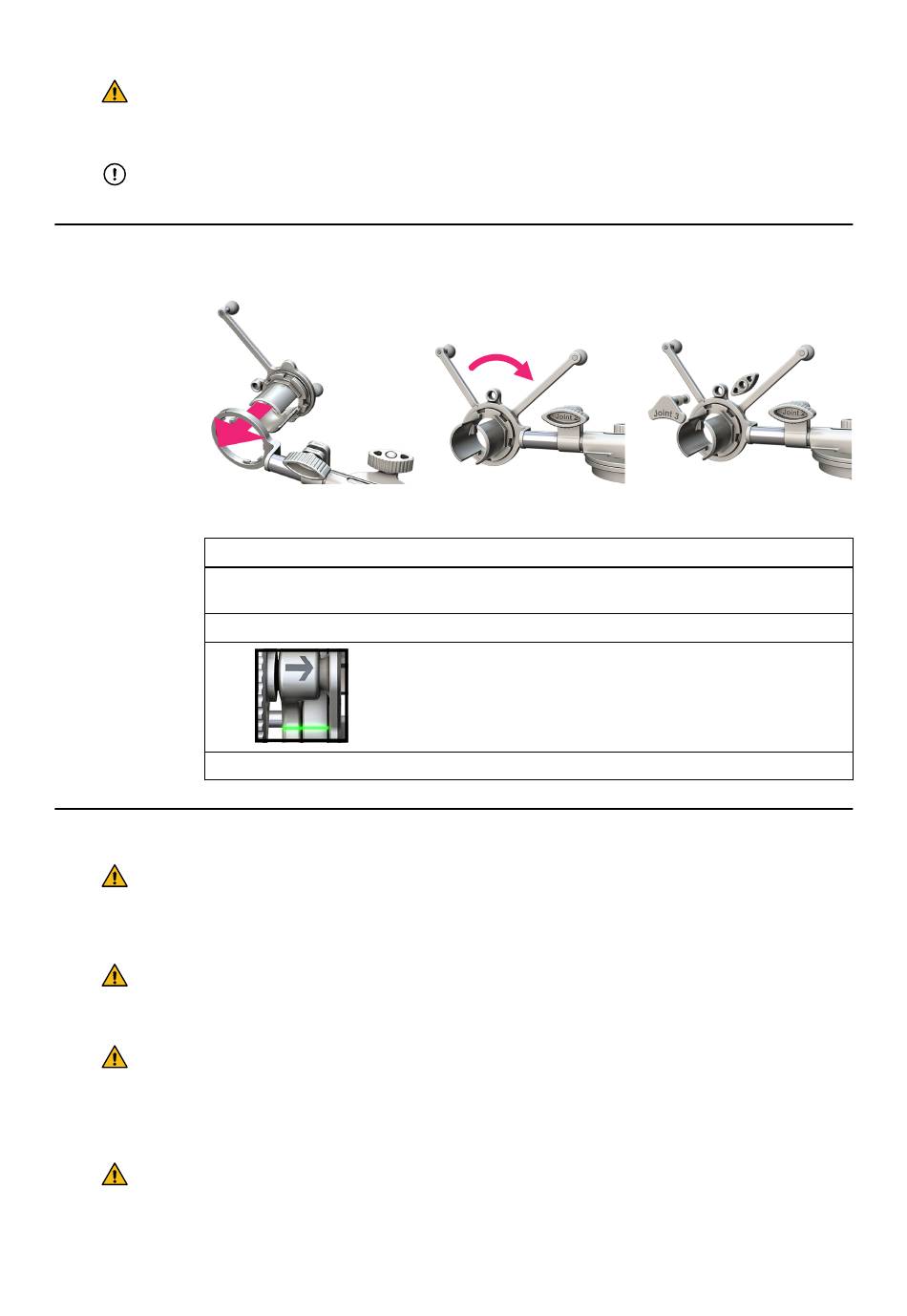

How to Attach the VarioGuide Array
Step
1.
2.
3.
4.
Guide Disc Safety Considerations
Warning
To ensure secure and reliable instrument positioning, and to prevent instrument movement
within the revolver or Guide Disc, the central tension handle, the guiding arm's screws and
the Guide Disc must be tightly secured by hand.
Warning
Always check that the Guide Disc is mounted correctly to the VarioGuide and is not tilted
or blocked.
Warning
Always choose a hole from the Guide Disc with appropriate diameter for the instrument (as
small as possible but not smaller than the instrument's diameter, check engraved
diameters on the Guide Disc). In case of using a drill guide tube, choose an appropriate
sleeve diameter for guiding the instrument.
Warning
Inspect the Guide Disc for damages before each use.
Instrument User Guide Rev. 2.3 Cranial/ENT Optical
①
Place the VarioGuide Array onto the array holder, by fitting the six teeth on the ring of
the array holder into the indentations on the array ①.
Turn the array 90° as shown ②.
Fully insert the Joint 3 lock ③, and adjust the lock so that the lines on both
components are aligned.
Secure Joint 3 by tightening the screw clockwise.
②
Figure 61
③
