Connection to Curve 1.1 and Above

9.8.1 Connection to Curve 1.1 and Above
How to Connect

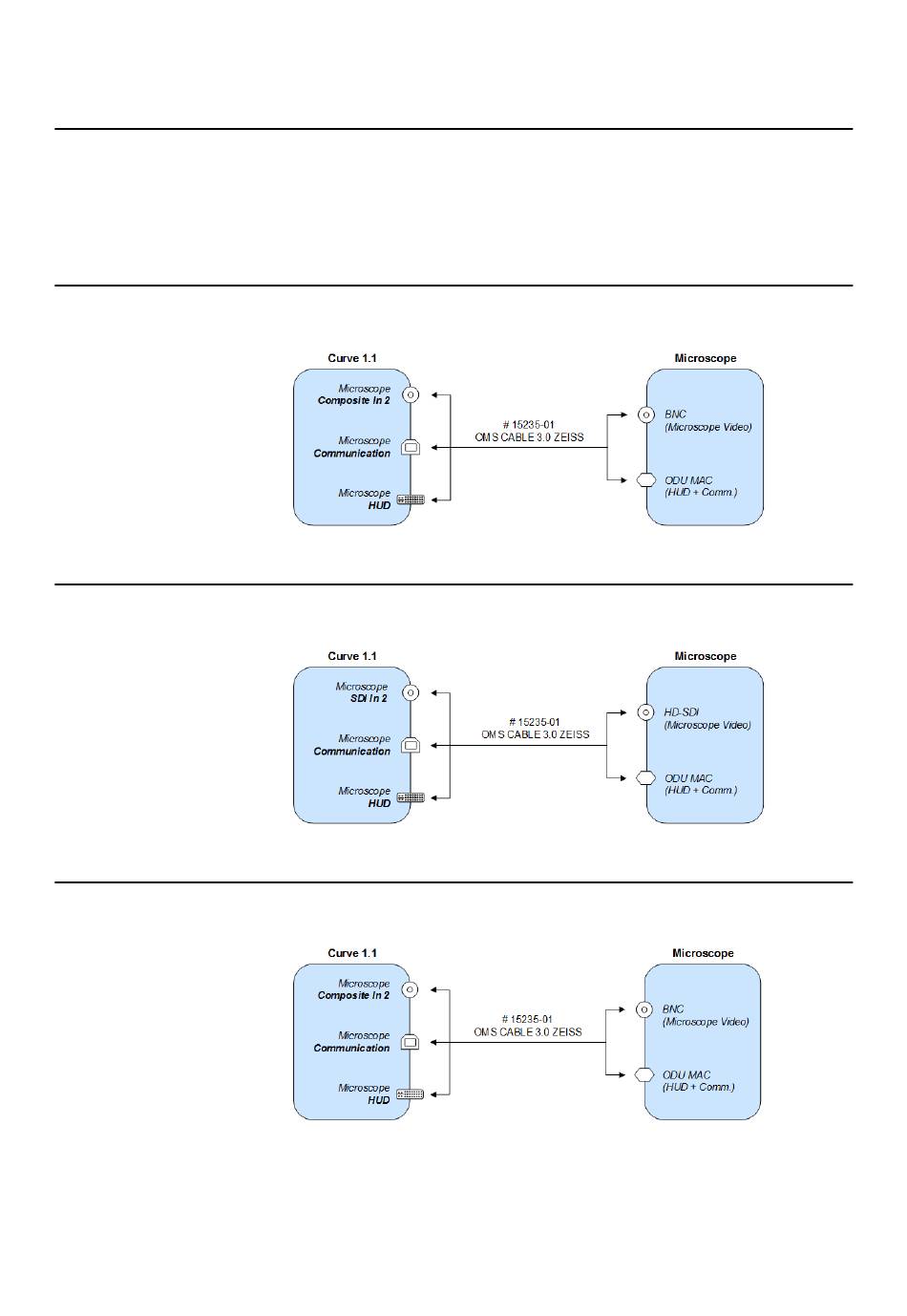

Connect the supplied cables between the microscope ports and the corresponding ports on the
Curve 1.1 system according to the following diagrams.
NOTE: Secure the loose cables that hang from Curve to the base of the system with the Velcro
strap provided. This strap fits through the hole located on the foot of the system.
Zeiss OPMI Neuro MultiVision/Pentero
Zeiss OPMI Pentero 900
Zeiss OPMI Vario/VARIO 700 (SD)
NOTE: Image injection is not available for OPMI Vario and OPMI VARIO 700 (SD).
138
Figure 108
Figure 109
Figure 110
Instrument User Guide Rev. 2.3 Cranial/ENT Optical
