MICROSCOPES
9.6.2

Connection to Curve ceiling-mounted

How to Connect

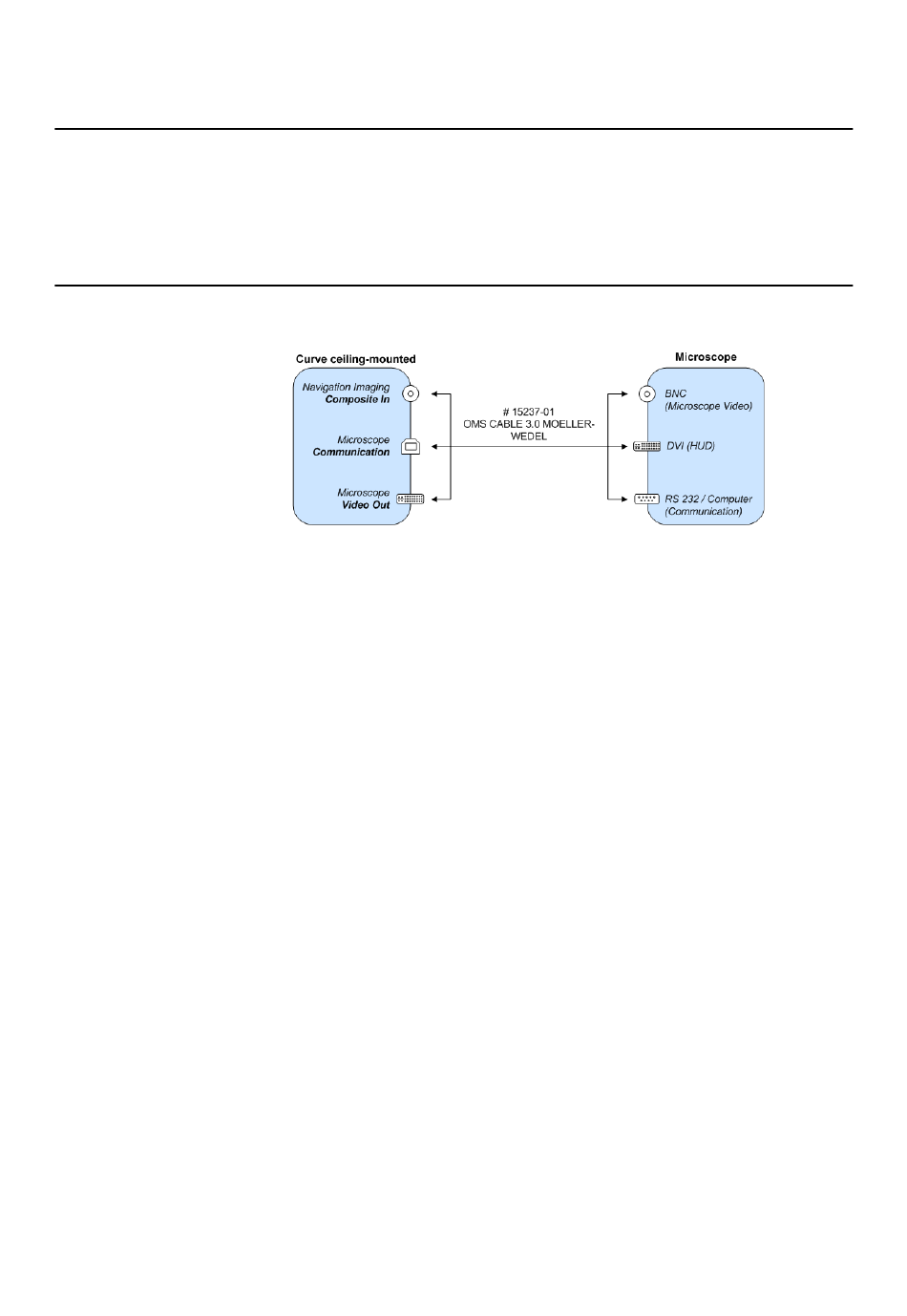

Connect the supplied cables between the microscope ports and the corresponding ports on the
Curve ceiling-mounted system according to the following diagrams.
NOTE: Secure the loose cables that hang from the Curve ceiling-mounted Connection Unit to
the rail of the ceiling supply unit (CSU) with the Velcro strap.
Haag-Streit Hi-R 1000/Hi-R 700
NOTE: Image injection is not available for Haag-Streit Hi-R 700.
Instrument User Guide Rev. 2.3 Cranial/ENT Optical
Figure 92
125
