Connection to VectorVision sky

How to Connect

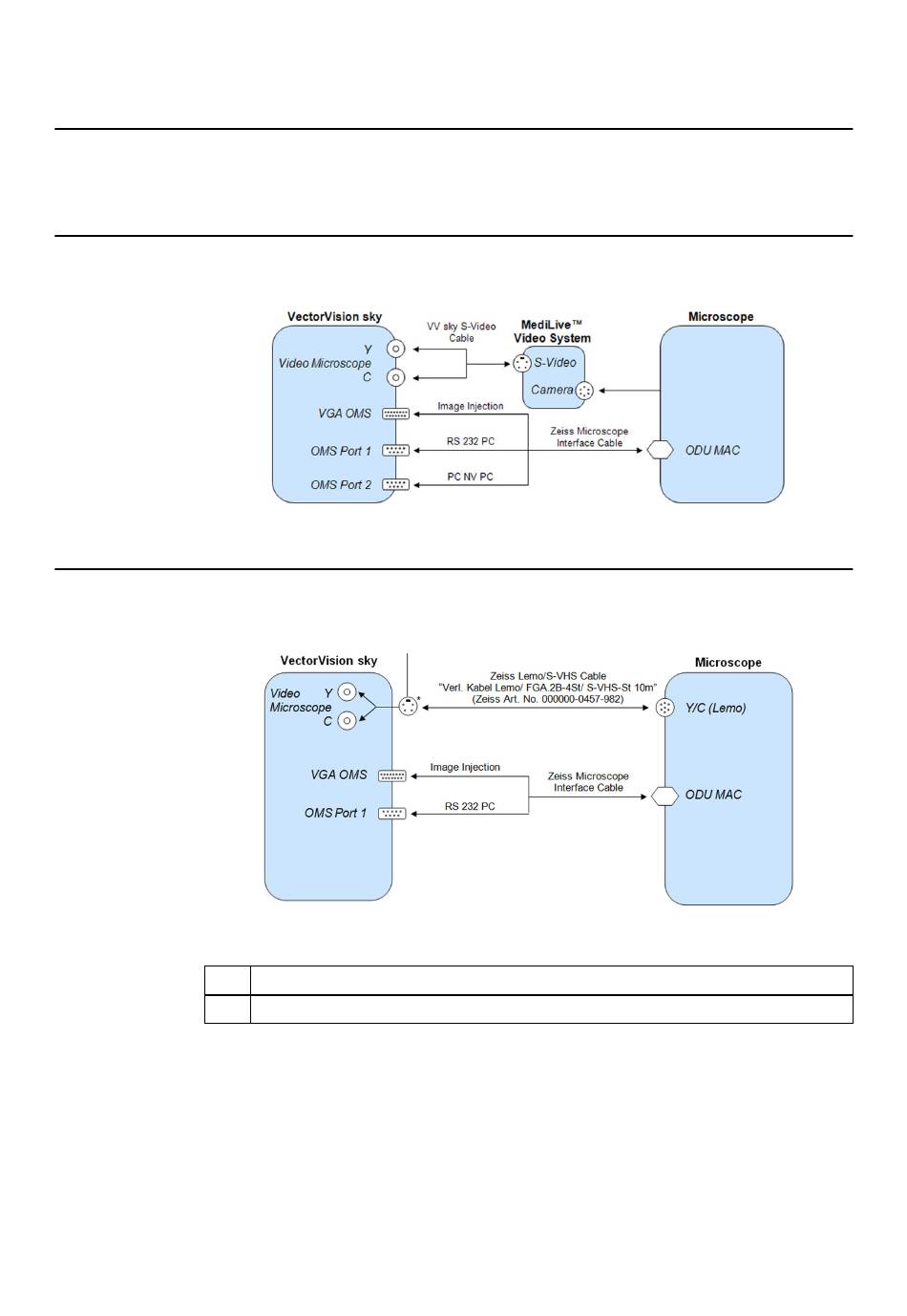

Connect the supplied cables between the microscope ports and the corresponding ports on the
VectorVision sky system according to the following diagrams.
Zeiss OPMI Neuro CRT/MultiVision
Zeiss OPMI Pentero/Pentero C/PENTERO 800/PENTERO 900/VARIO 700
No.
①
NOTE: Image injection is not available for OPMI VARIO 700.
Instrument User Guide Rev. 2.3 Cranial/ENT Optical
①
Component
Brainlab adapter cable CBLSVHS F> 2xBNC M 0.2M UL EXTRON26-541-0 (19190-73)
Figure 120
Figure 121
143
