Connection to Curve ceiling-mounted

9.7.2 Connection to Curve ceiling-mounted
How to Connect

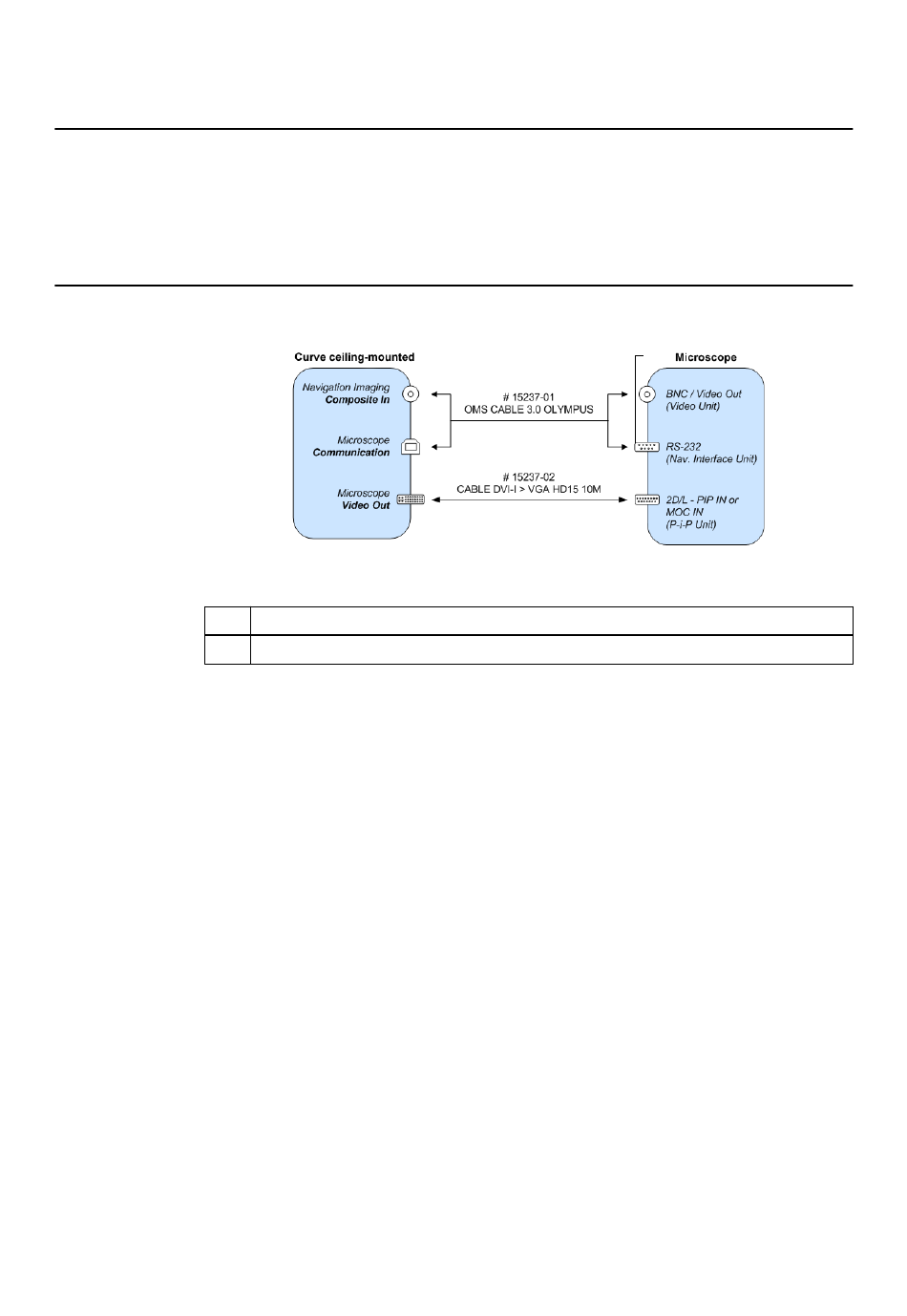

Connect the supplied cables between the microscope ports and the corresponding ports on the
Curve ceiling-mounted system according to the following diagrams.
NOTE: Secure the loose cables that hang from the Curve ceiling-mounted Connection Unit to
the rail of the ceiling supply unit (CSU) with the Velcro strap.
Olympus OME-7000/8000/9000
No.
①
132
Component
Gender changer DB9 FA440-R2 (plug-plug)
①
Figure 99
Instrument User Guide Rev. 2.3 Cranial/ENT Optical
