ULTRASOUND

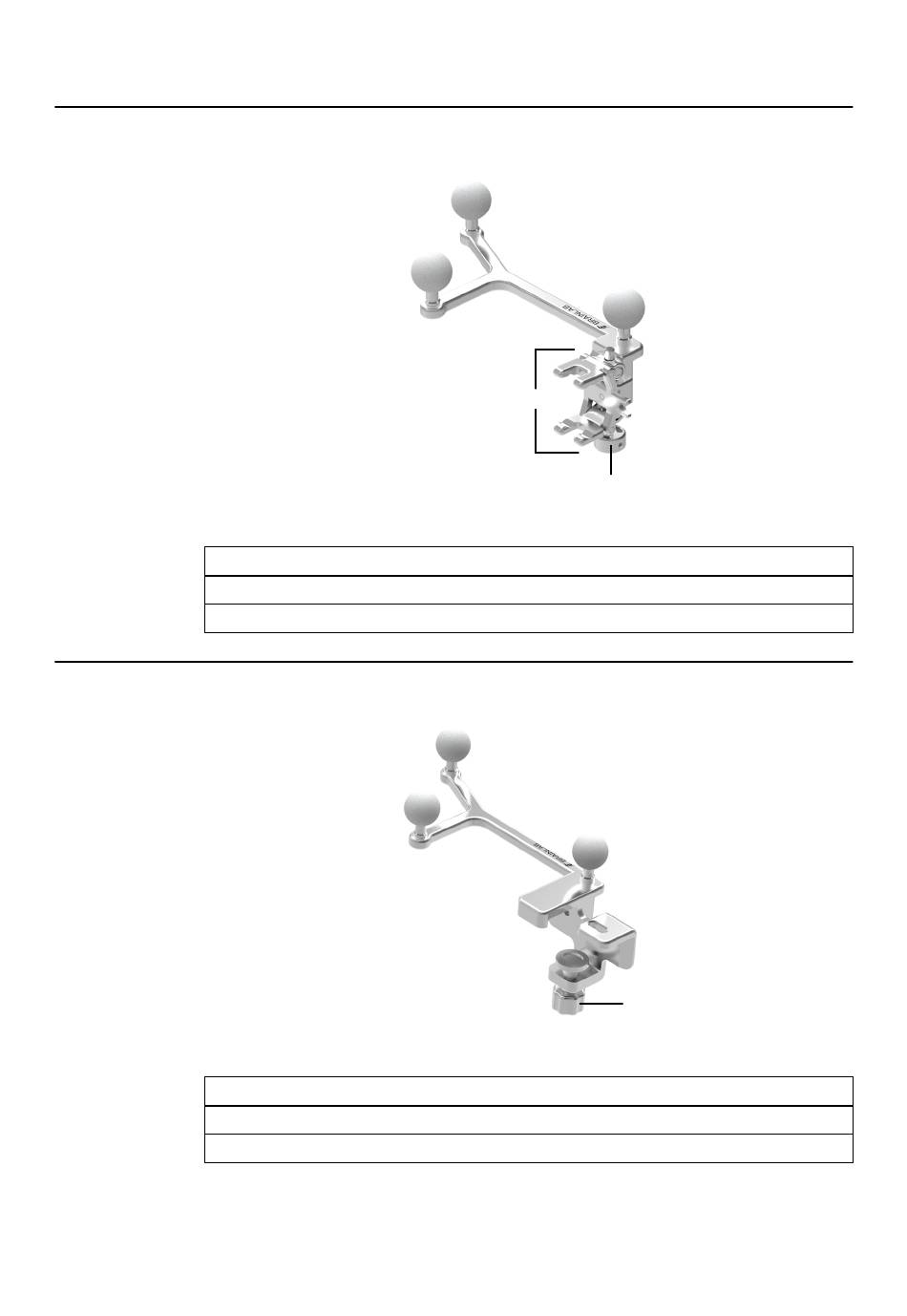

How to Attach Adapters with a Jaw Lock
Step
1.
2.
How to Attach Adapters with a Vise Lock
Step
1.
2.
Instrument User Guide Rev. 2.3 Cranial/ENT Optical
Place the Ultrasound Adapter onto the ultrasound probe.
Tighten the screw ① until the tong ② fits securely onto the probe.
Place the ultrasound adapters onto the ultrasound probe.
Tighten the screw ① until the vise fits securely on the probe.
②
①
Figure 50
①
Figure 51
