4.5.5.2 Admin Pages
Only users logged in with the Administrator name and password have access to
these pages.
Click the Admin tab, and then select the Access or SNMP hyperlink to continue.
4.5.5.2.1

Admin | Access Page

The Administrator must use this page to manage the HPOD Web Server Interface access settings.
At any time, click [Refresh] to update this page and see the most recent data.
Network Maintenance

IP Gateway / IP Address/Range – Enter the desired IP Gateway Address and IP Address/
Range.
Click [Change IP Address], or click [Reset] to revert to the previously assigned Network
Maintenance settings.
The MAC Address is read-only. It is set at the factory to a guaranteed unique
address and cannot be modified.
Ethernet-Based Remote Product Management
HPOD C-, X-, Ku-Band High-Power Outdoor Amplifier

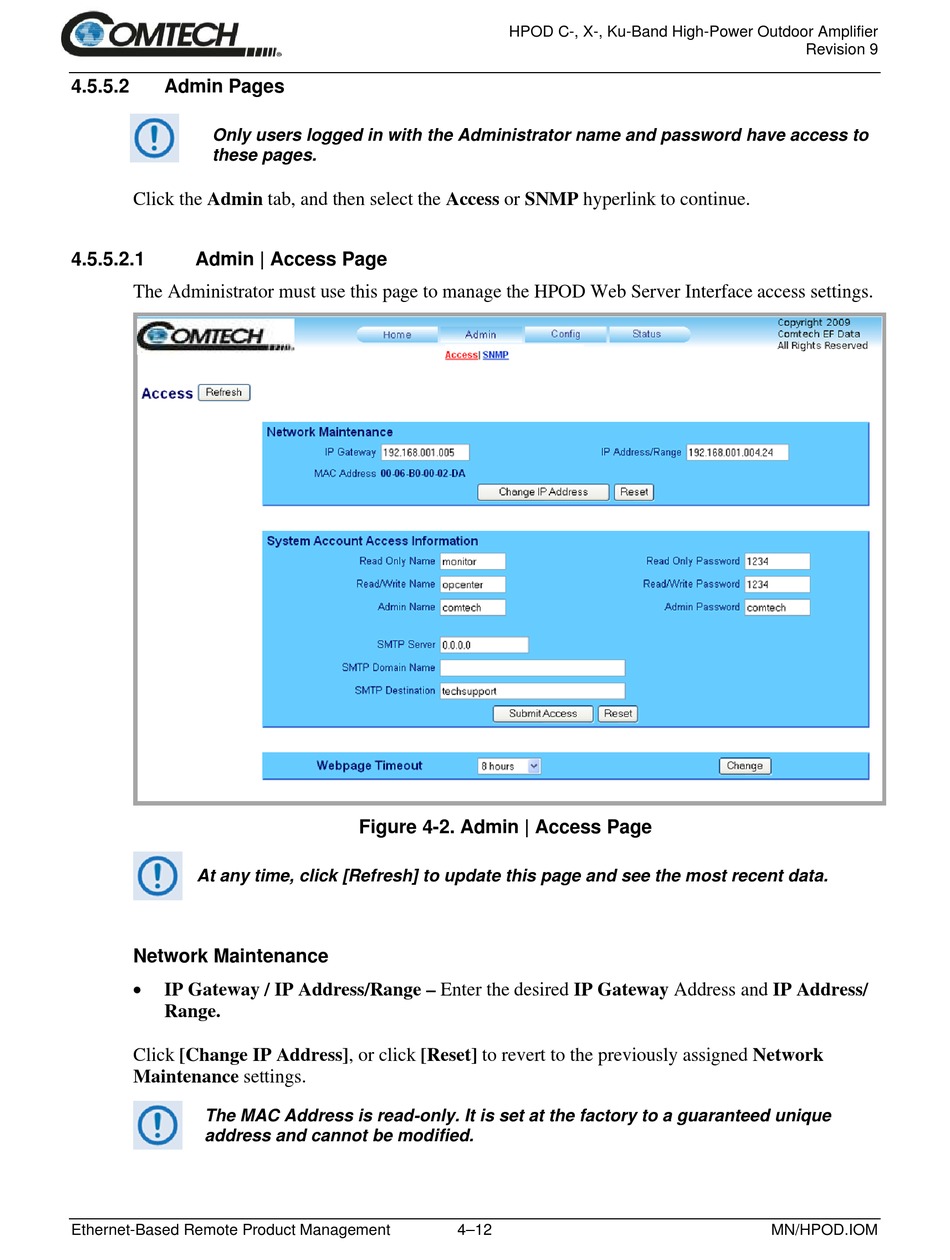

Figure 4-2. Admin | Access Page
