C.3.2 Install the New Fan Assembly
To install the new fan assembly, do these steps:
Step Task
1 Visually inspect the exposed SSPA heat sink for any debris or blockage. Use compressed air
to clear and clean the heat sink as needed.
2 Connect the fan assembly's circular connectors to the SSPA.
3 Position the fan assembly onto the SSPA. Make sure that you align the assembly properly, so
that you can bolt down the fasteners without any cable or fan interference.
4 Tighten the four captive fasteners where shown previously in Figure C-2.
5 Reconnect the HPOD SSPA to its power source.
Appendix C

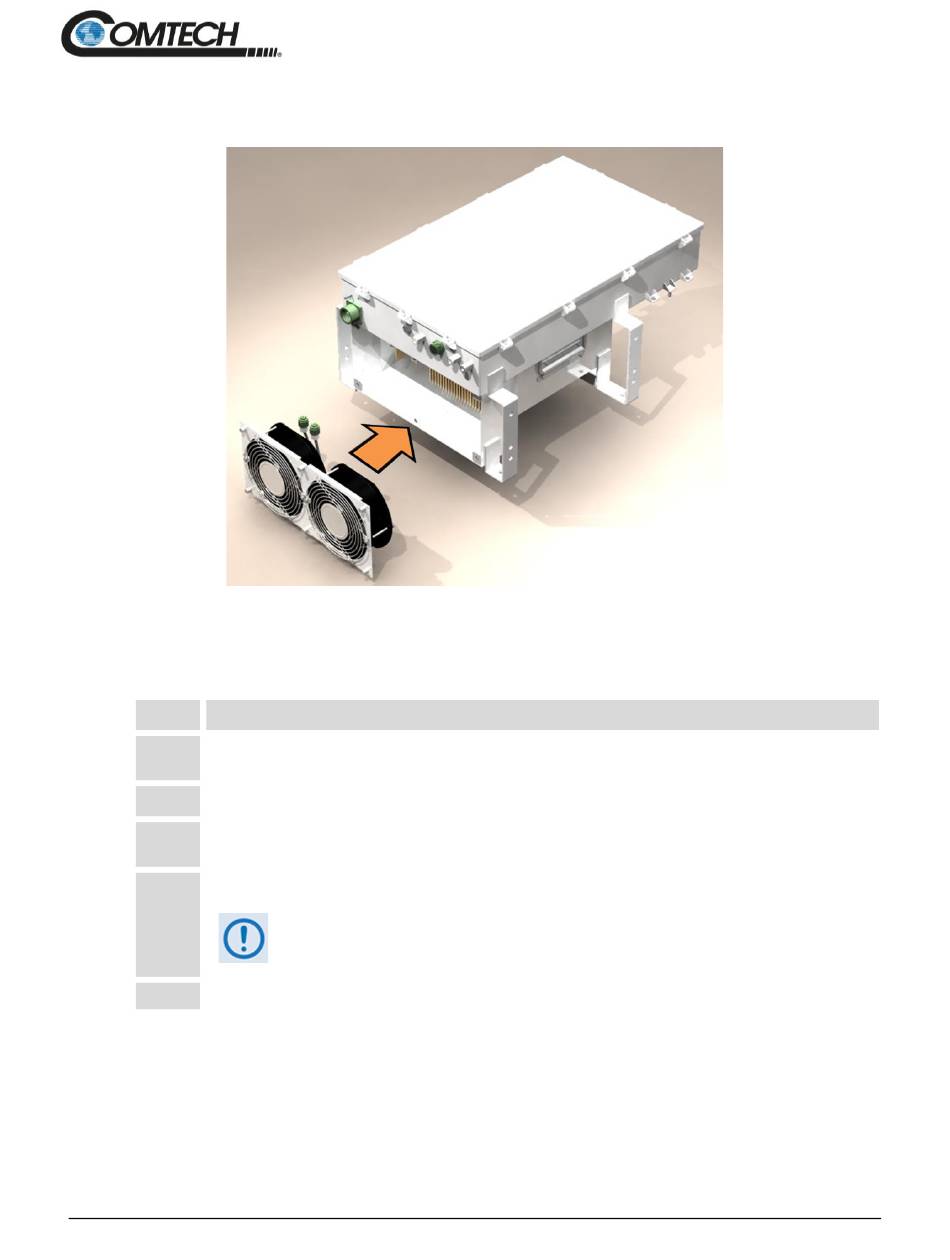

Figure C-3. Install the New HPOD Fan Assembly

Be sure to use an appropriate screwdriver, such as the one provided
with the SSPA, to avoid damaging the fasteners
