1.3 Server Features

The following features refer to the CSE-E403iF-000NBP2 chassis, which mounts inside of
the B403-IP65 IP65 Enclosure

Control Panel

The power button and LEDs located on the control panel are described below.
Item Features
1 Power Button
2 Reset Button
3 Power LED
4 HDD LED
5 NIC LED
6 Information LED Alerts operator to several states, as noted in the table on the next page.
7 Overheat LED
Status
Blinking red (1Hz)
Blinking red (0.25Hz)
1
2
3
5
6

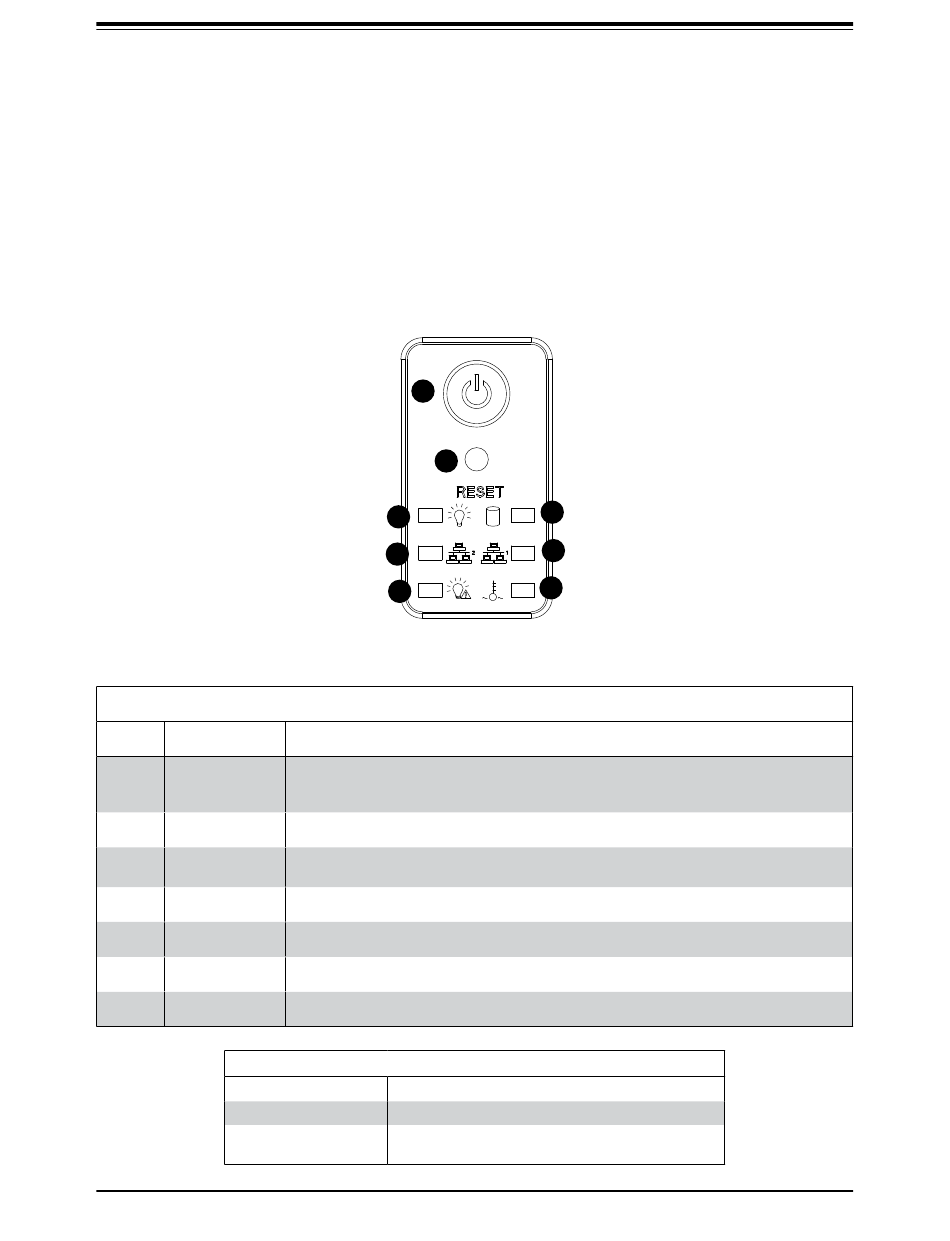

Figure 1-2. Control Panel View
Control Panel Features
Description
The main power switch applies or removes primary power from the power supply
to the server but maintains standby power. To perform most maintenance tasks,
unplug the system to remove all power.
Press the button with a slender instrument (like a pen) to reset the system.
Indicates power is being supplied to the system power supply units. This LED is
illuminated when the system is operating normally.
Indicates hard disk drive activity when flashing.
Indicates network activity on the LAN when flashing.
If this indicator is continuously on and red, an overheat condition has occurred.
Information LED
Description
Fan failure. Check for an inoperative fan.
Power failure. Check for a non-operational power
supply.
