SuperServer E403-9D-16C-IPD2/E403-9D-14CN-IPD2 User's Manual
Downloading the Crash Dump File
1. In the IPMI interface, click the Miscellaneous tab, then the Trouble Shooting option.
2. Click the Dump button and wait five minutes for the file to be created. (No confirm ation
message will appear.)
3. Click the Download button and a Save As dialog appears.
4. Save the zipped dump file, noting the name and location.
Note: The System auto reset check box dictates behavior after an IERR. If checked, the
system will restart automatically, and the dump file will be erased. If not, the system remains
in a failed state. Do not check this box until after the dump file has been sent to Support.

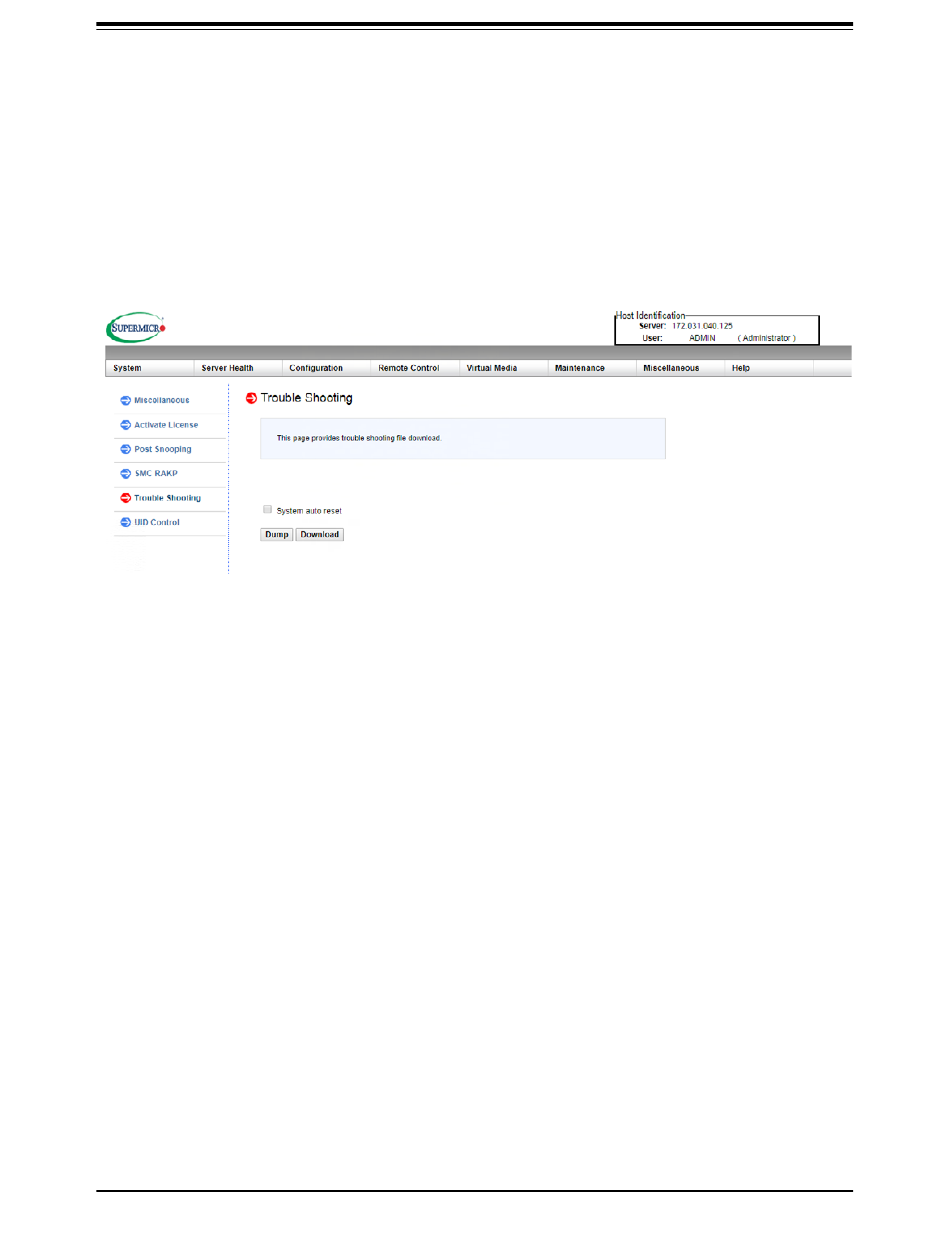

Figure E-2. IPMI Crash Dump Download
