DIMM Module Population Sequence

When installing memory modules, the DIMM slots should be populated in the following order:
DIMMA1, DIMMB1, DIMMD1, DIMME1.
•
Always use DDR4 DIMM modules of the same type and speed.
•
Mixed DIMM speeds can be installed. However, all DIMMs will run at the speed of the
slowest DIMM.
•
The motherboard will support odd-numbered modules (one or three modules installed).
However, for best memory performance, install DIMM modules in pairs to activate memory
interleaving.
LED2
UID
JUIDB1
MH6
JSXB1A
A
LED3
C A
LEDM1
COM2
JVRM1
JPG1:VGA
1-2:ENABLE
2-3:DISABLE
JPG1
JSIM1
JPL2
JPL3
JPL2:
LAN 2/3/4/5
1-2:ENABLE
2-3:DISABLE
JPL3:
LAN 6/7/8/9
1-2:ENABLE
2-3:DISABLE
JMD2:M.2-H
PCI-E 3.0 X2 / S-SATA4
JPCIE3
JSXB1C
JL1:
CHASSIS
INTRUSION
MH2
USB 0/1 JNVI2C1
MH7
JUSB1
USB 2/3
S-SATA3
JPH1
S-SATA2
3 MH4
JBT1
4
1
2
JPW1
7
Chapter 3: Maintenance and Component Installation
PRESS FIT
LAN 2/3/4/5/6/7/8/9
LEDT8
A
C
A
C
LAN 12/13
JSDP3
JBM1
J1
JVGA1
JMD1_SRW1
JMD1_SRW2
JI2C1/JI2C2:
1-2:ENABLE
2-3:DISABLE
JWD1:WATCH DOG
1-2:RST
2-3:NMI
JMD2_SRW1
JPME2:
1-2:NORMAL
2-3:ME MANUFACTURING MODE
X11SDW-4C-TP13F+
REV:1.00
DESIGNED IN USA
CPU
JF1
JF1:
PWR OH HDD PWR
RST X NIC2 NIC1
ON FF LED LED
JPT1:TPM
JD1:
1-2:ENABLE
1-3:PWR LED
2-3:DISABLE
4-7:SPEAKER
LED1
Power LED
FAN4

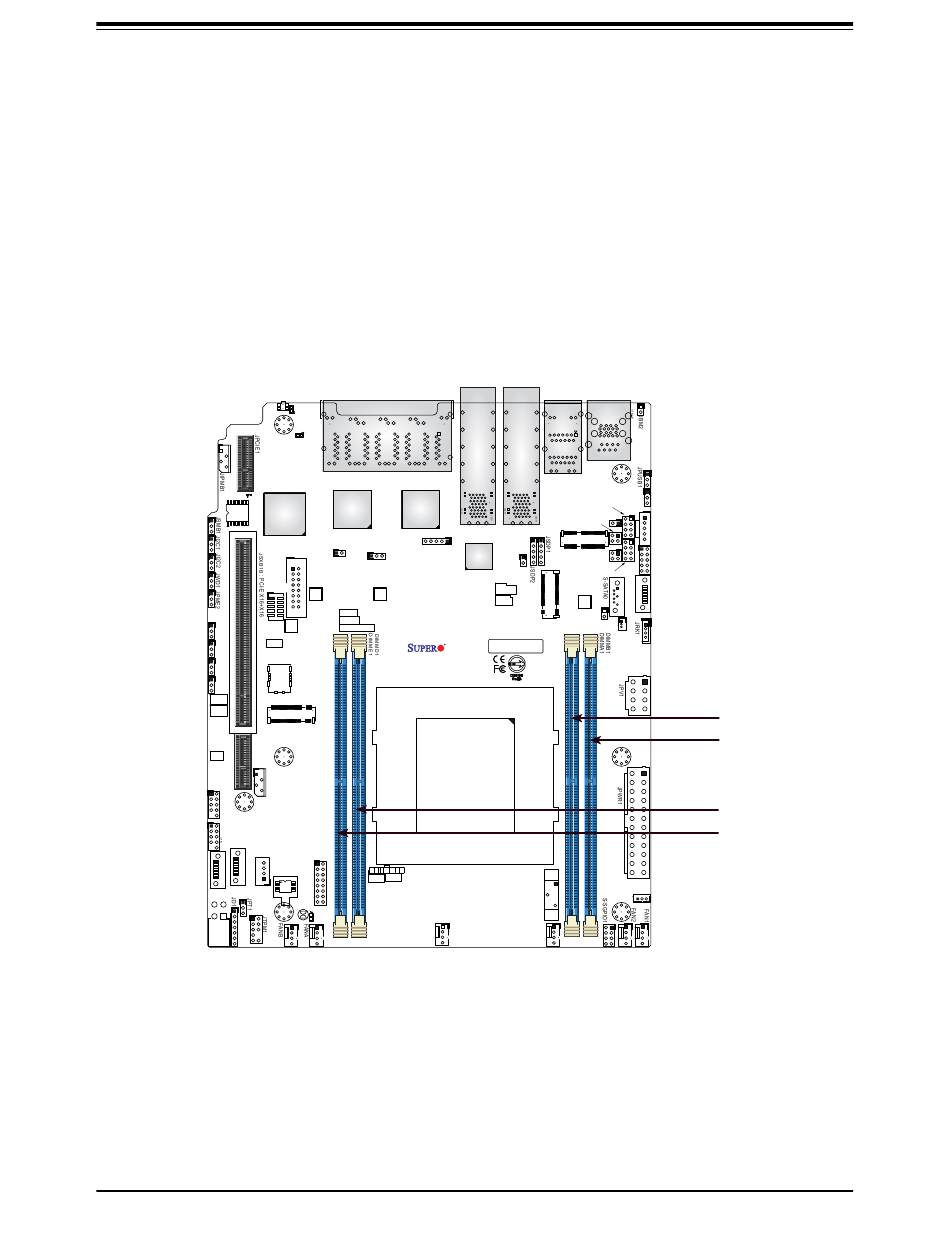

Figure 3-5. DIMM Slots
