- Page 1 SYS-E100-12T-H Getting Started Guide for AWS IoT Core Revision 1.0...
- Page 2 Please Note: For the most up-to-date version of this manual, please see our web site at www.supermicro.com. Super Micro Computer, Inc. (“Supermicro”) reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.
- Page 3 Document Revision History Date Revision Description 3/24/2023 Initial release. SYS-E100-12T-H: Getting Started Guide for AWS IoT Core...
-
Page 4: Table Of Contents
Create Resources in AWS IoT ......................15 Provisioning the Device with Credentials ................... 15 10 Building and Running the Demo ......................15 11 Debugging and Troubleshooting ......................15 Contacting Supermicro ..........................17 SYS-E100-12T-H: Getting Started Guide for AWS IoT Core... -
Page 5: Overview

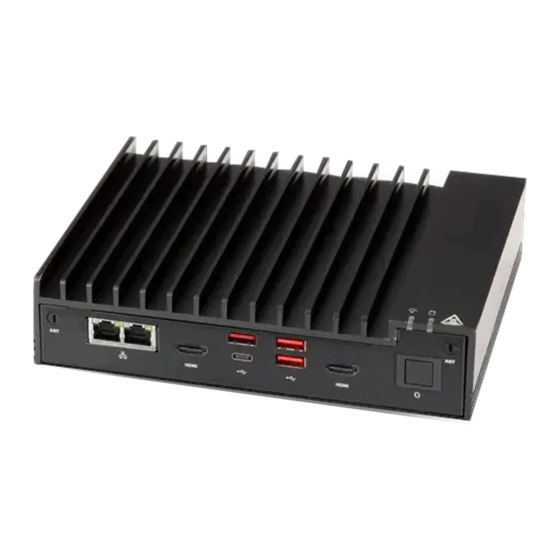

1 Overview The Supermicro SuperServer E100-12T is a compact edge server comprised of the CSE-E101 chassis and the X12STN-H-WOHS motherboard with Intel® Core™ i7-1185GRE processors to support a wide range of performance requirements and use-cases. It is specifically suited for applications such as IoT Gdge computing, IoT gateway, Smart Building, machine automation, digital signage, and medical/healthcare. -
Page 6: Rd Party Purchasable Items
2.4 3 Party Purchasable Items 2.5 Additional Hardware References https://www.supermicro.com/en/products/system/Box_PC/SYS-E100-12T-H.cfm 3 Setting up your Development Environment 3.1 Installation Tools 1. IDE based. a. Vim, nano, emacs for Ubuntu 20.04 . b. Python 3.8 IDE 2. Python Flask 2.2 Web framework https://flask.palletsprojects.com/en/2.2.x/... -
Page 7: Setting Up Your Hardware
[Mandatory] This section provides instructions for setting up the platform's hardware. Make sure that you provide links to any user guides or other documentation for setting up hardware. User Manual: MNL-2459.pdf (supermicro.com) SYS-E100-12T-H: Getting Started Guide for AWS IoT Core... - Page 8 System Features: Rear Item Description 12VDC Input Power input for system GPIO Port General Purpose Digital Input/Output port COM1 and COM2: RS232/422/485 serial ports COM Ports COM3 and COM4: RS232 serial ports USB Ports USB 2.0 ports Mic-In Microphone jack (optional) Line-Out Line out jack for audio (optional) SYS-E100-12T-H: Getting Started Guide for AWS IoT Core...
- Page 9 SYS-E100-12T-H: Getting Started Guide for AWS IoT Core...
- Page 10 Quick Reference Table Jumper Description Default Setting JLCDPWR1 LVDS Panel VCC Power Source Selection Pins 1-3 (3.3V) JPME2 CMOS Pins 1-3 JPME2 Manufacturing Mode Pins 4-6 (Normal) JPT1 TPM Enable Pins 1-3 (Enable) JPT1 Force Power On Pins 2-4 (Force power on) JSIM1_OPT SIM Detect Option Pins 2-4 (Normal)
-
Page 11: Accessing The System
Supported Drivers: https://www.supermicro.com/wdl/driver/ 4.1 Accessing the System The CSE-E101-03 features a removable bottom cover to access the inside of the chassis. 4.2 Removing the Bottom Cover 1. Remove power from the system. 2. Remove the eight screws that hold the cover in place. -
Page 12: Installing Memory
4.3 Installing Memory Caution: Exercise extreme care when installing or removing DIMM modules to prevent damage. SO-DIMM Installation 1. Remove the bottom cover as described in the previous section. 2. Position the SO-DIMM module's bottom key so it aligns with the receptive point on the slot. 3. -
Page 13: Solid State Storage
5 Solid State Storage This motherboard supports internally mounted solid state storage cards by means of three M.2 slots. When an M.2 NVMe storage card is installed, an accompanying heatsink (optional) must also be installed to prevent the card from overheating. SYS-E100-12T-H: Getting Started Guide for AWS IoT Core... -
Page 14: Installing An M.2 Card
ISO file for your motherboard. Download this file to a USB flash drive or a DVD. (You may also use a utility to extract the ISO file if preferred.) Another option is to go to the Supermicro website at http://www.supermicro.com/products/. Find the product page for your motherboard, and "Download the Latest Drivers and Utilities". -
Page 15: Setting Up Your Aws Account And Permissions
7 Setting up your AWS Account and Permissions Refer to the online AWS documentation at Set up your AWS Account. Follow the steps outlined in the sections below to create your account and a user and get started: Sign up for an AWS account •... - Page 16 Online Support | Support - Super Micro Computer, Inc. SYS-E100-12T-H: Getting Started Guide for AWS IoT Core...
-
Page 17: Contacting Supermicro
San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) Sales-USA@supermicro.com (Sales Inquiries) Government_Sales-USA@supermicro.com (Gov. Sales Inquiries) support@supermicro.com (Technical Support) RMA@supermicro.com (RMA Support) Webmaster@supermicro.com (Webmaster) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.
