3.9 Expansion Cards

The E403-9D-16C-IPD2/E403-9D-14CN-IPD2 supports up to three PCIe slots on riser cards.
Follow the table printed on the riser card to set the JSEL jumper. The IIO configurations may
also need to be set in the BIOS.
Installing Expansion Cards
1. Power down the system and remove the AC power cord and the chassis cover.
2. Remove the screw as shown below and set aside.
3. Pull the locking lever up to release the expansion card module.
4. Pull the expansion card module upward with the aid of the plastic handle.
5. Set the jumper on the riser card and install expansion cards.
Locking Lever
Expansion Card Module

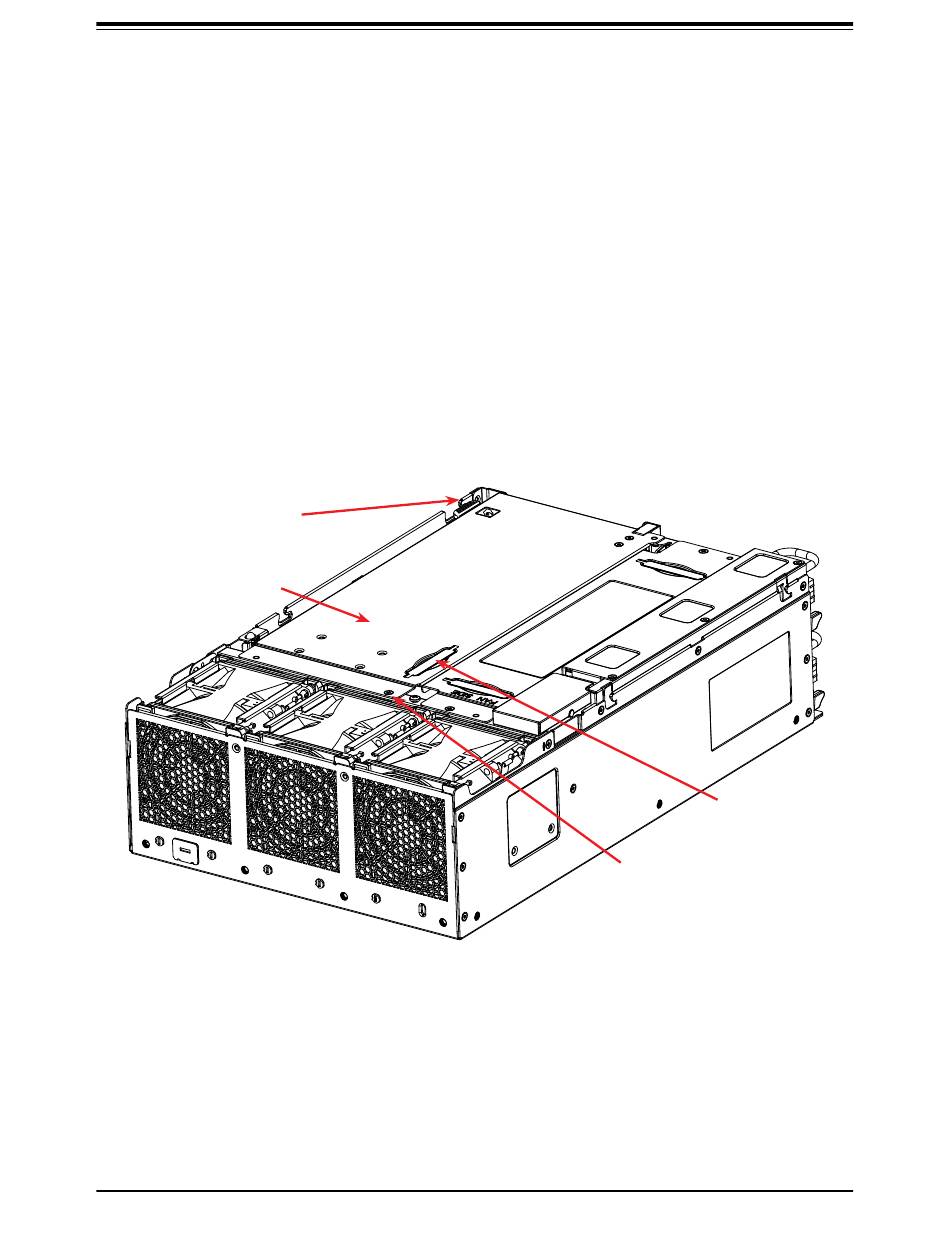

Figure 3-10. Components of the Expansion Card Module
Chapter 3: Maintenance and Component Installation
43
Plastic Handle
Remove this screw
