1.4 Server Chassis Features

Control Panel

The switches and LEDs located on the control panel are described below. See Chapter 4 for
details on the control panel connections.
Item Feature Description
1 Information LED See table below for details.
2 NIC2 LED Indicates network activity on LAN port 2 when flashing
3 NIC1 LED Indicates network activity on LAN port 1 when flashing
4 HDD LED Indicates activity on the hard drive when flashing.
Indicates power is being supplied to the system's power supply unit. This LED should normally be
5 Power LED
illuminated when the system is operating.
Depressing the UID (unit identifier) button illuminates an LED on the front and rear of the chassis
6 UID LED for easy system location in large stack configurations. The LED will remain on until the button is
pushed a second time. Another UID button on the rear of the chassis serves the same function.
The main power button is used to apply or remove power from the power supply to the server.
7 Power Button Turning off system power with this button removes the main power but maintains standby power.
To perform many maintenance tasks, you must also unplug system before servicing.
8 USB Ports USB 3.0 Ports
Status
Continuously on and red
Blinking red (1Hz)
Solid blue
Blinking blue
1 2 3 4 5
6
8
8

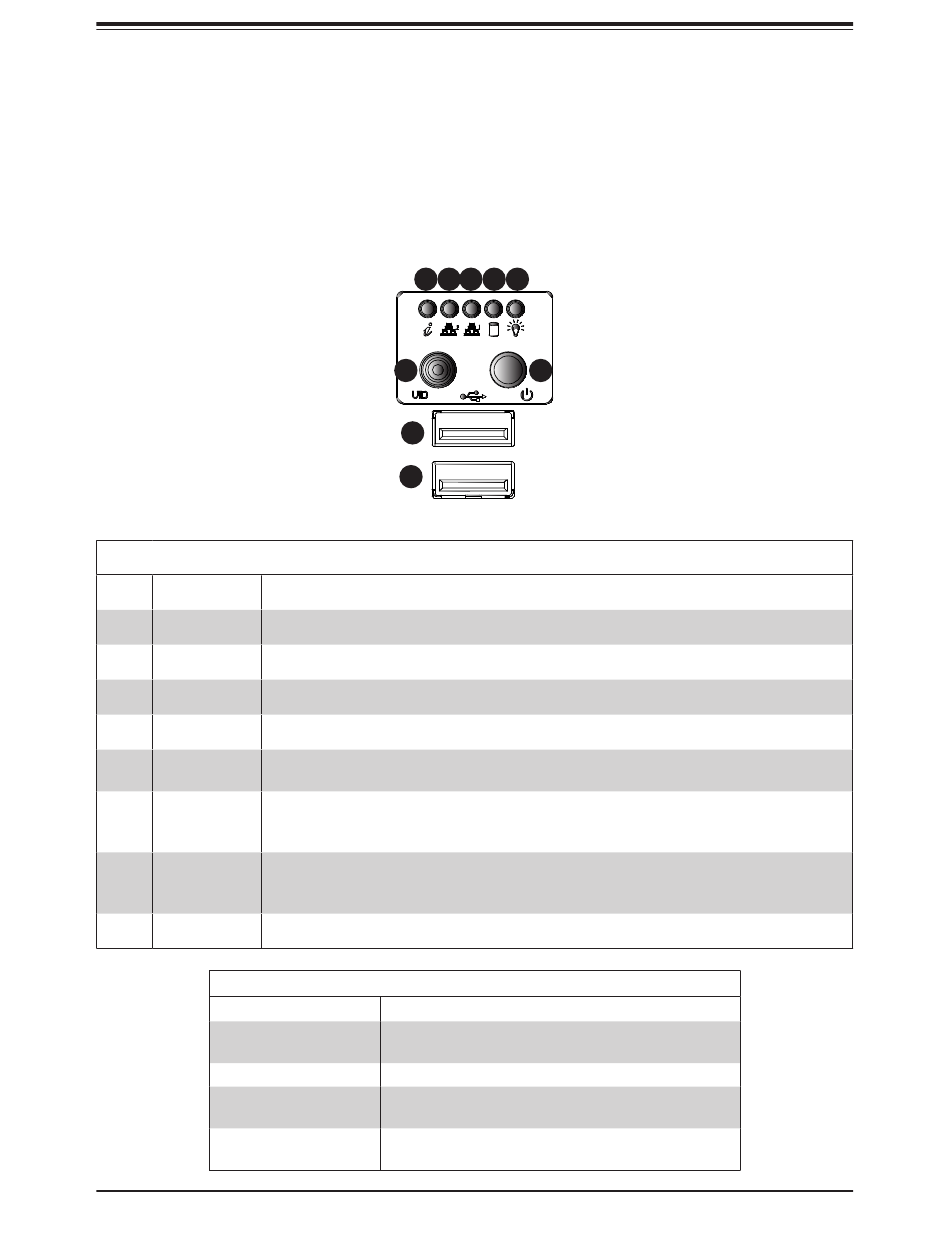

Figure 1-1. Control Panel View
Control Panel Features
Information LED
Description
An overheat condition has occurred.
(This may be caused by cable congestion.)
Fan failure, check for an inoperative fan.
UID has been activated locally to locate the server in a
rack environment.
UID has been activated using IPMI to locate the server in
a rack environment.
