Server Installation (If Not Pre-Installed) - Supermicro SuperServer SYS-E403-9D-16C-IPD2 User Manual

SuperServer SYS-E403-9D-16C-IPD2/E403-9D-14CN-IPD2 User's Manual

2.5 Server Installation (if not pre-installed)

If your server was not pre installed, please follow the steps below to install the server in the
enclosure.
Installing the Server
1. Install the mounting bracket to the server

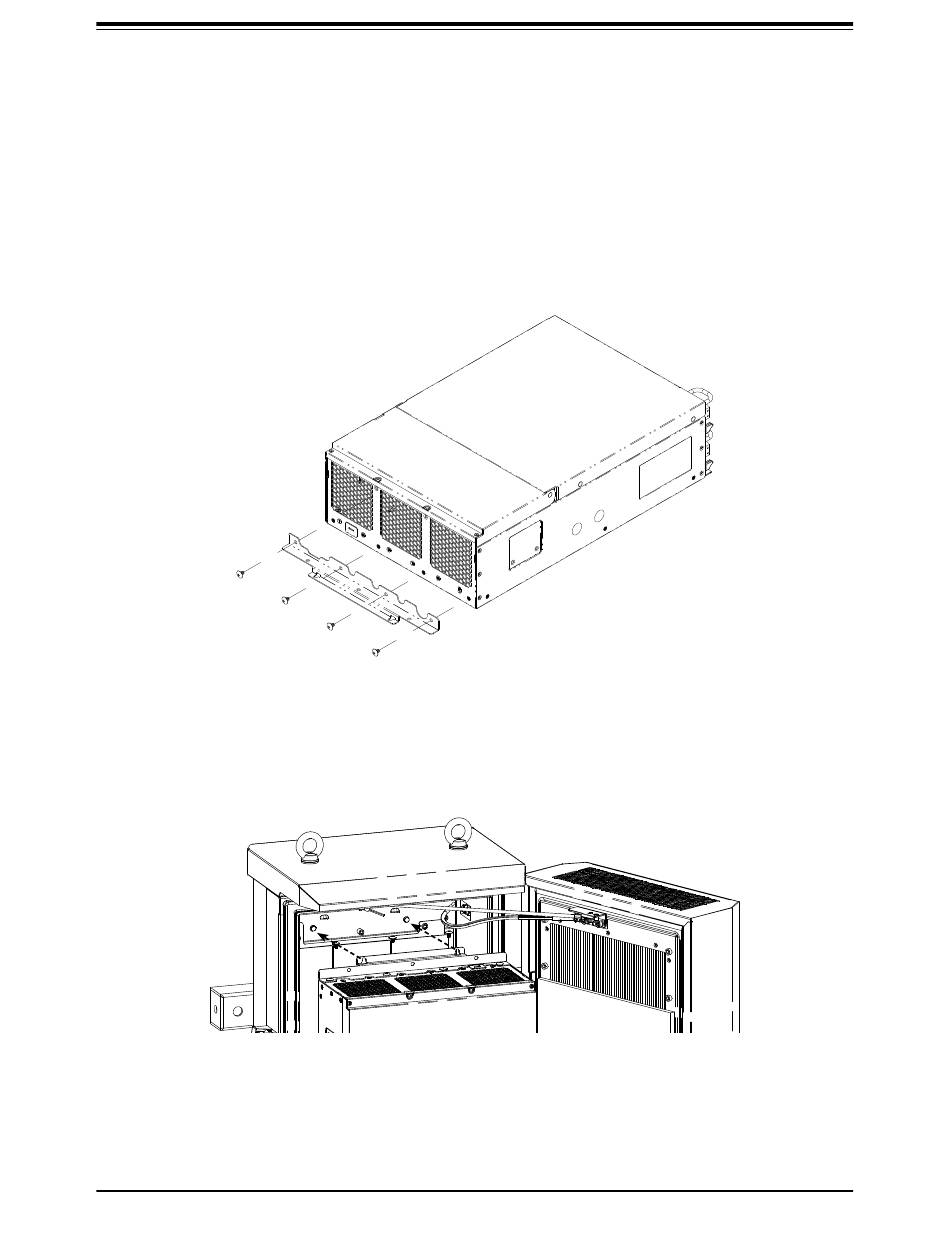

Figure 2-5. Installing the Bracket to the Server
2. Carefully hang the server in the enclosure using the two hanging inserts
Figure 2-6. Location of Hanging Inserts
24
