3.4.10. Extension Connector

Available Options
The NB3000-Line-Hd has an M12 extension connector with 8 pins. The 8 pins are split into
two logical ports: Pins 1 to 4 represent Extension Port 1 (EP1) and pin 5 to 8 represent Ex-
tension Port 2 (EP2). On both EP1 and EP2 the following interfaces may be present:
• Non-isolated RS-232 (Default con guration on EP1)
• Audio (Option A)
• CAN (Option C)
• IBIS (Option I)
• Isolated RS-485 (Option Sa)
• Isolated RS-232 (Option Sb)
Pin Signal
1 EP1 - Pin 1
2 EP1 - Pin 2
3 EP1 - Pin 3
4 EP1 - Pin 4
5 EP2 - Pin 1
6 EP2 - Pin 2
7 EP2 - Pin 3
8 EP2 - Pin 4

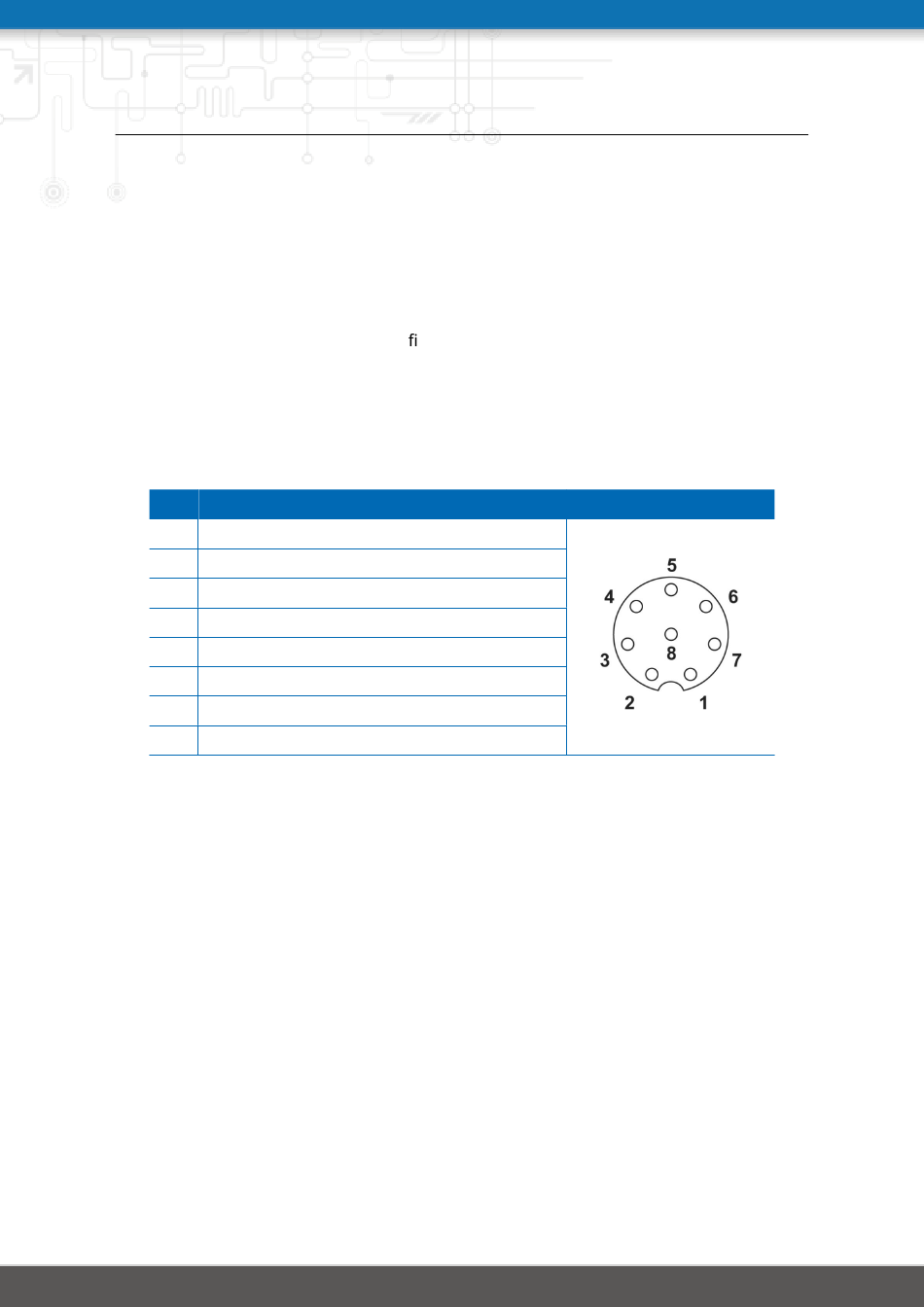

Table 3.19.: Pin Assignments of Digital Inputs and Outputs
