Isolated Inputs
The isolated digital input ports have the following specification:
Feature
Number of inputs
maximum input voltage
Minimum voltage for level 1
(set)
Maximum voltage for level 0
(not set)
Table 3.10.: Isolated Digital Inputs Specification
Note: A negative input voltage is not recognized.

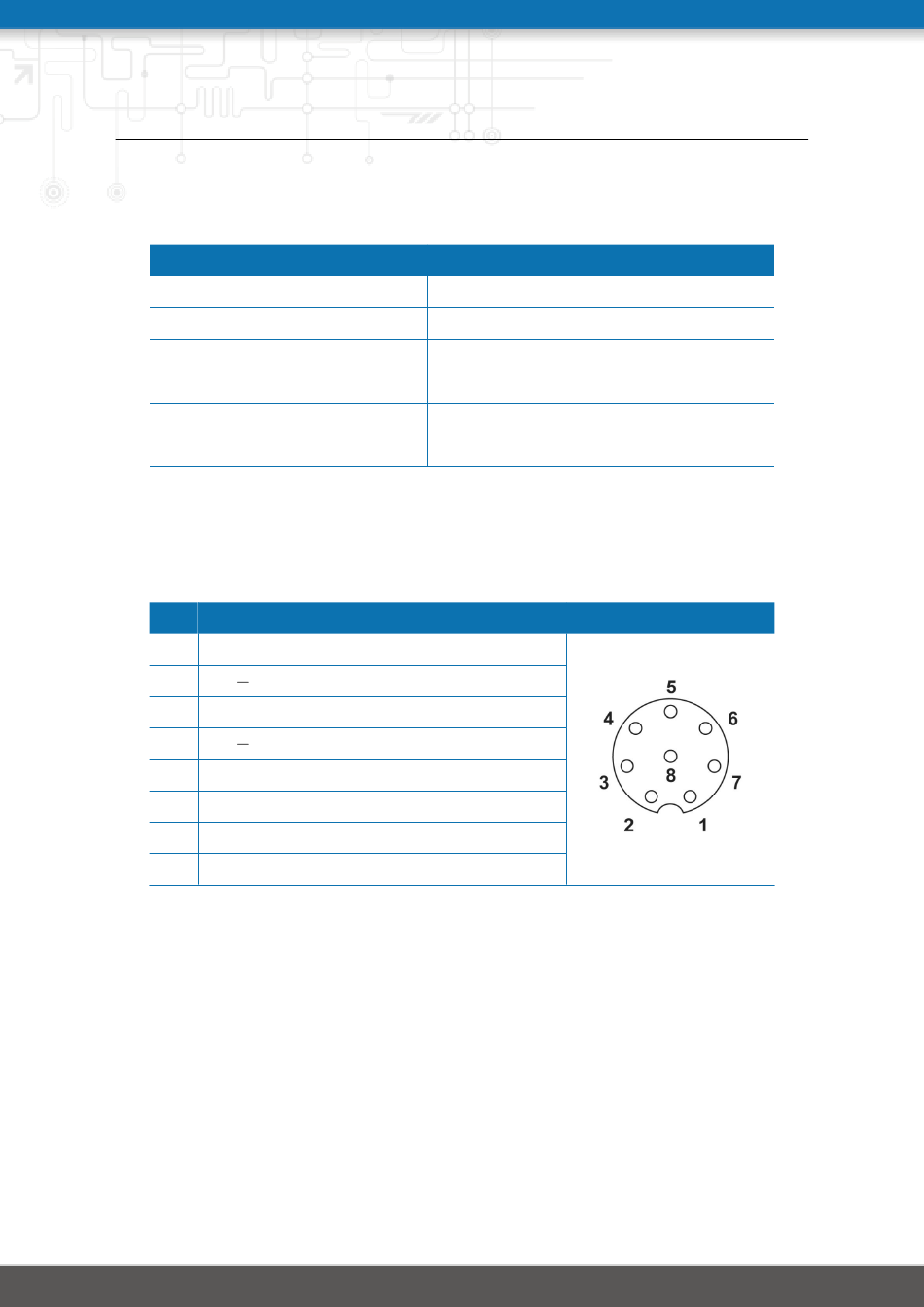

Pin Assignment M12 8-pole A-coded female
Pin Signal
1 DI1+
2 DI1
3 DI2+
4 DI2
5 DO1: Dry contact relay normally open
6 DO1: Dry contact relay normally open
7 DO2: Dry contact relay normally closed
8 DO2: Dry contact relay normally closed
Table 3.11.: Pin Assignments of Digital Inputs and Outputs

3.3.6. Extension Connector

The NB3710 has an M12 extension connector with 8 pins. The 8 pins are split into two
logical ports: Pins 1 to 4 represent Extension Port 1 (EP1) and pin 5 to 8 represent
Extension Port 2 (EP2). In common, EP1 hosts the serial line of the router, which is a
non-isolated 3-wire RS-232. On EP2 the following interfaces may be present:
• Audio (Option A)
• CAN (Option C)
NB3710 User Manual 3.8
Specification
2
40 V
DC
7.2 V
DC
5.0 V
DC
18
Pinning
