Step Detail view
3

40 Use server map

Load blueprint

Step Detail view
1
2
RA91390962 AB-V1.3.3, en
User interface | ILS, ActiveShuttle | 91

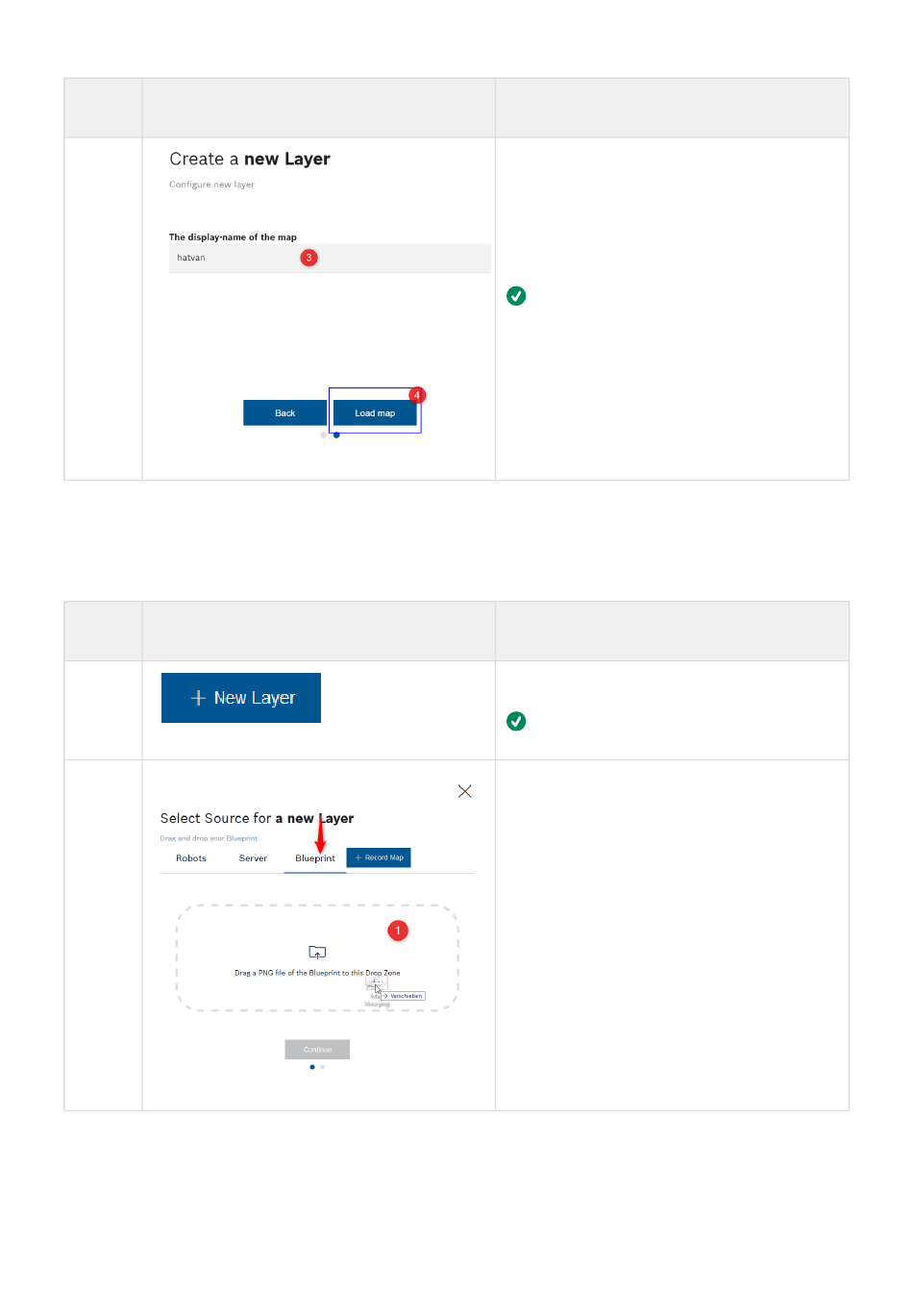

Description
→ If necessary, change the default name (3).
→ If the map possesses options like size,
configure them.
→ Click on Load map (4).
The map is processed and appears in the
Layers in Sector area.
Description
→ Click on +New Layer.
A dialog appears.
→ Open the Blueprint tab.
→ Drag and drop a png file of the blueprint to
the drop zone (1).
