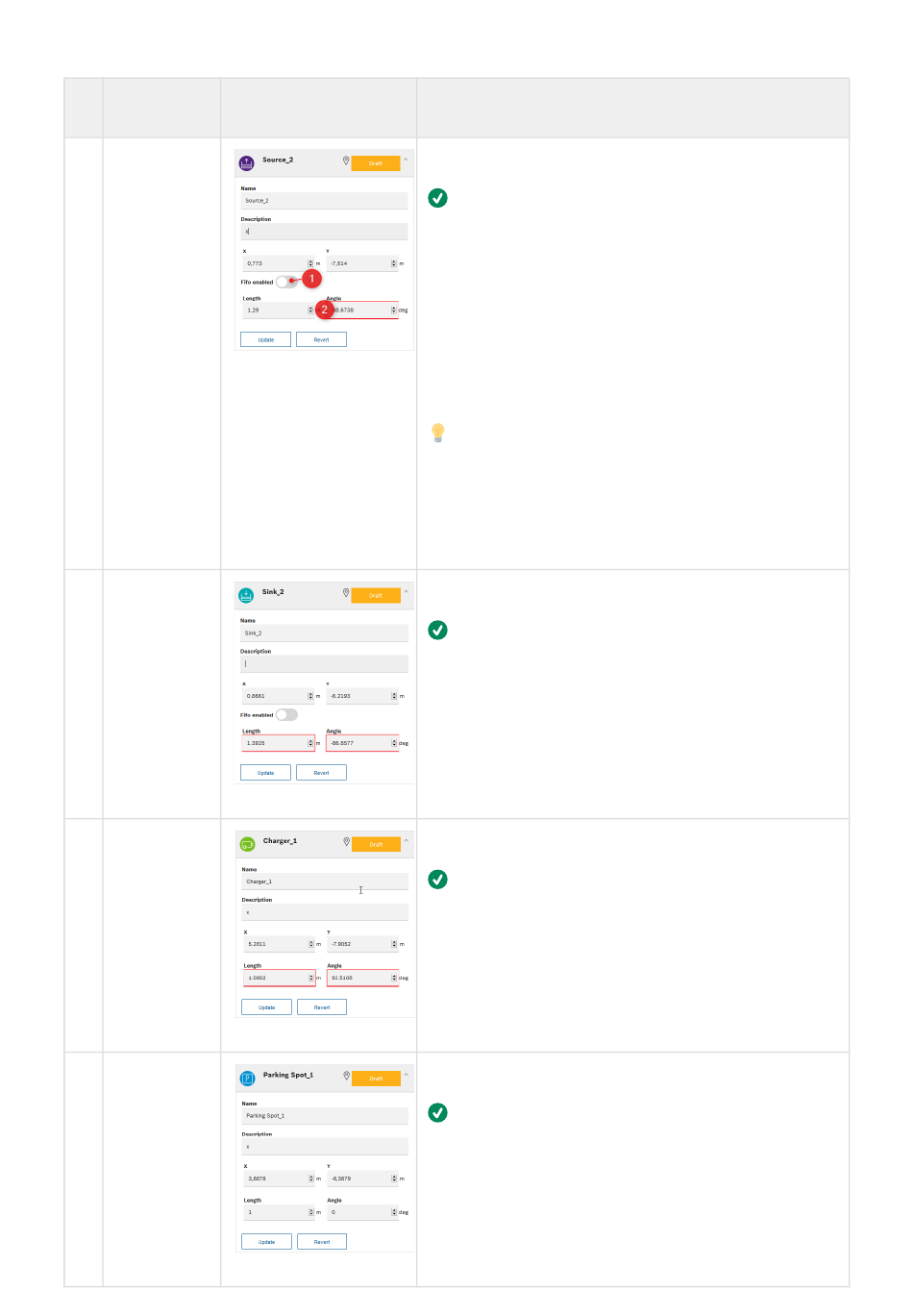

Definition
Detail view
3
Add a Pickup
point on the
map
4
Add a Drop
off Point on
the map
5
Add a
Charging
Station on the
map
6
Add a Parking
Position on
the map
RA91390962 AB-V1.3.3, en
Description
→ Place Pickup point on the map.
Path Elements Overview is filtered for all set Pickup
points.
→ Edit and fill out all parameters just like in the Waypoint
editing mask above.
The following additional parameters can be edited:
→ Toggle button (1) to either enable or disable FIFO.
Notice!
Having FIFO enabled means that any Job using the
supermarket as either Source or Sink will wait until one Job is
finished before starting another one, even if there are several
robots available and idle.
→ Numerically edit Pickup point length and/or angle (2).
→ Place Drop off Point on the map.
Path Elements Overview is filtered for all set Drop off
Points.
→ Edit and fill out all parameters just like in the Pickup
point editing mask above.
→ Place Charging Station on the map.
Path Elements Overview is filtered for all set Charging
Stations.
→ Edit and fill out all parameters just like in the Pickup
point editing mask above.
→ Place Parking Position on the map.
Path Elements Overview is filtered for all set up Parking
Positions.
→ Edit and fill out all parameters just like in the Pickup
point editing mask above.
User interface | ILS, ActiveShuttle | 77
