Definition Detail view
1 Overview of
all points
2 Add a
Waypoint on
the map
RA91390962 AB-V1.3.3, en
ILS, ActiveShuttle | User interface
Description

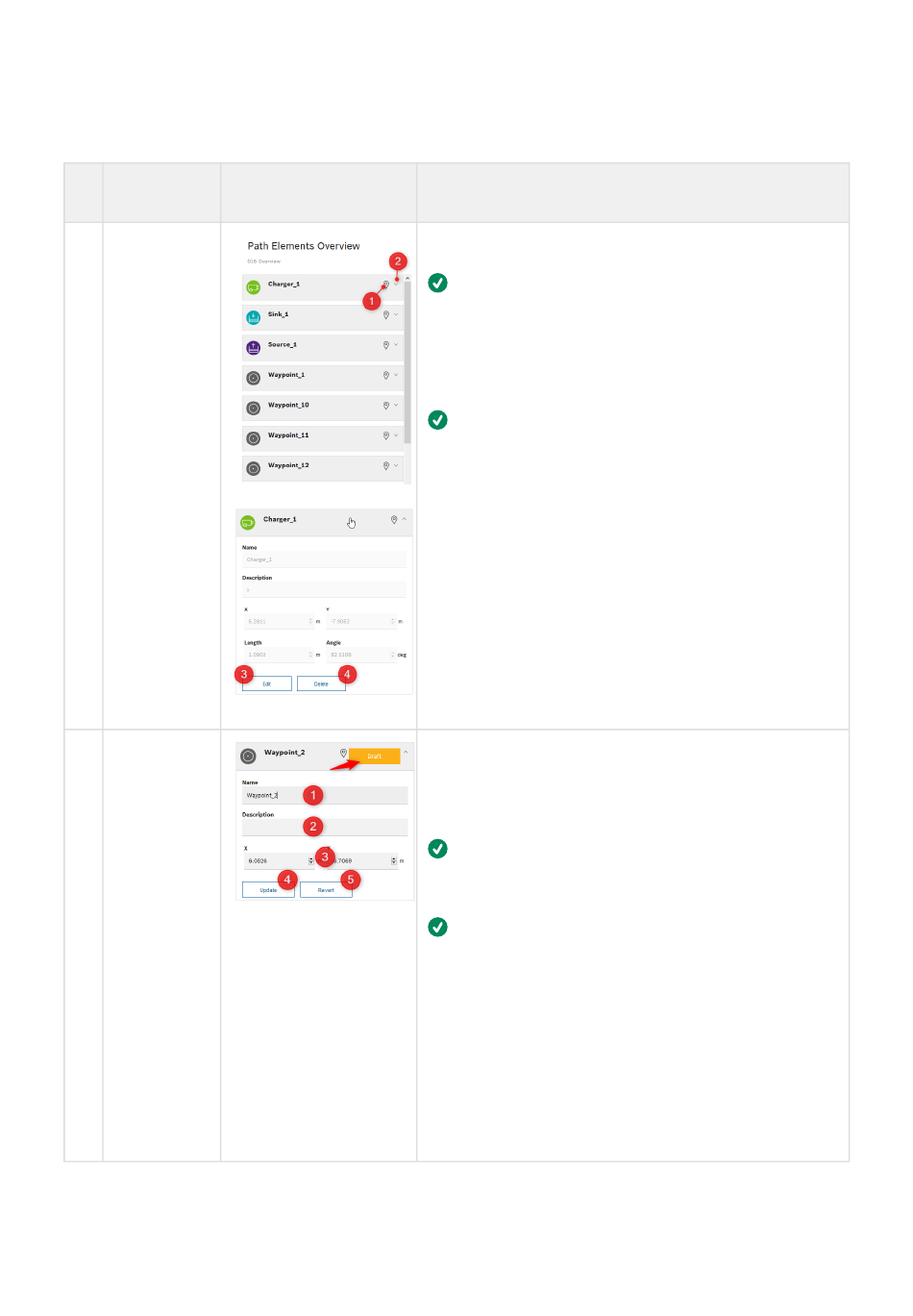

→ Click on overview button.
The Path Elements Overview is displayed as a list.
→ Click on Flag (1) to focus the map on the selected
Waypoint.
→ Click on the Button (2) to open the detail view.
detail view opens.
→ Click on Edit (3) to change the selected Waypoint into
draft mode (see descriptions below).
→ Click on Delete (4) to delete the selected Waypoint from
map.
→ Place a Waypoint on the map.
◊ For more detailed information on map placement, see
Chapter Waypoint Toolbar.
Path Elements Overview is filtered for all set Waypoints.
→ Click on Edit in the detail view.
The Waypoint status switches to draft and can be edited.
→ Enter Waypoint name (1).
→ Enter Waypoint description (2).
→ Manually set Waypoint position on the map (3).
→ Click Update (4) to accept input.
→ Click Revert (5) to reset input and cancel draft mode.
